Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 14, 2019, 09:46 AM

  • 05 1014_05 1013_3142019_025331.mp4

Date
03/14/2019
W/O
0760333
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00421
PipeID
P06247
Time
2:46 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1150
Sewer Name
05 AVIATION BOULEVARD TRUNK
City
HAWTHORNE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
12
Purpose
Routine Assessment
Project
20190312MDM_AVIATION_BOULEVARD_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Upstream MH
05 1013
Downstream MH
05 1014
Dir. of Survey
Upstream
Length Surveyed
349.7 ft.
Total Length
349.7 ft.
Structural Index
2
Structural Quick
3124
Structural Rating
11
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 05 1013 to 05 1014
MH: 05 1013MH: 05 1014upstream0 ft. AMH - Upstream Manhole, Survey Ends - 3:25AM0.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE0.4 ft. MGO - General Observation - MAG COAT 90% FINISH132.1 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE216.3 ft. SAV - Surface Aggregate Visible, from 08 to 11 o'clock, within 8 inches of joint: NO - SEVERE AGG VERY SPORATIC218.1 ft. SSS - Surface Spalling, from 08 to 12 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETYE324 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE347.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE347.7 ft. MGO - General Observation - MAG COAT 90% START349.7 ft. MWL - Water Level, 10 %of cross sectional area349.7 ft. AMH - Downstream Manhole, Survey Begins - 2:55AM349.7 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (6)

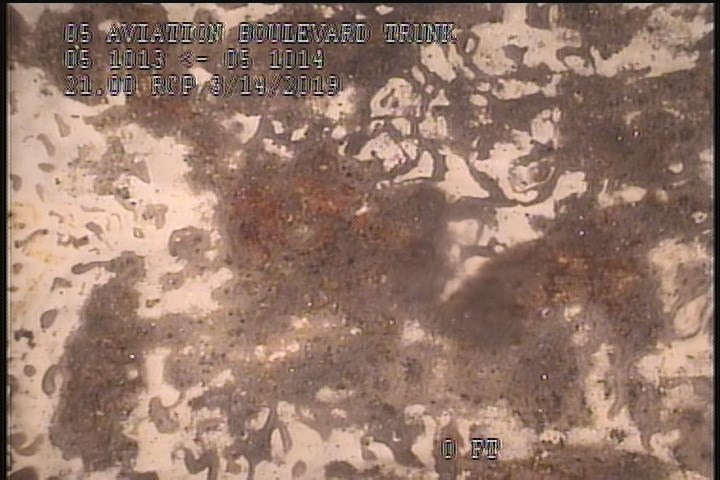

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

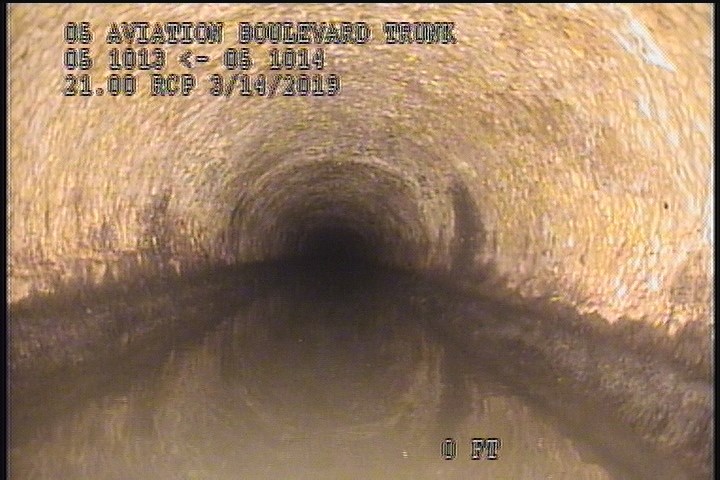

  • General Observation - MAG COAT 90% START

    2 ft. - General Observation - MAG COAT 90% START

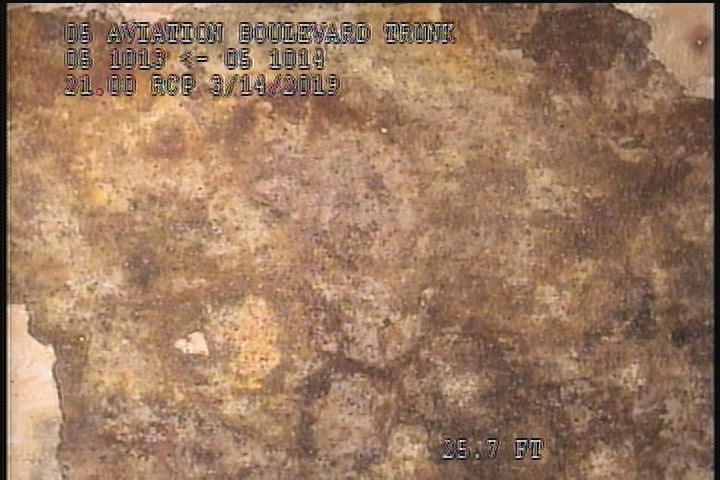

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE

    25.7 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE

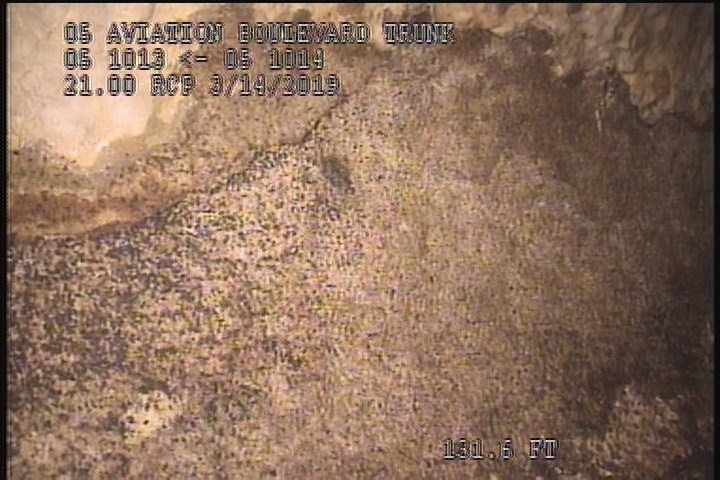

  • Surface Spalling, from 08 to 12 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETYE

    131.6 ft. - Surface Spalling, from 08 to 12 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETYE

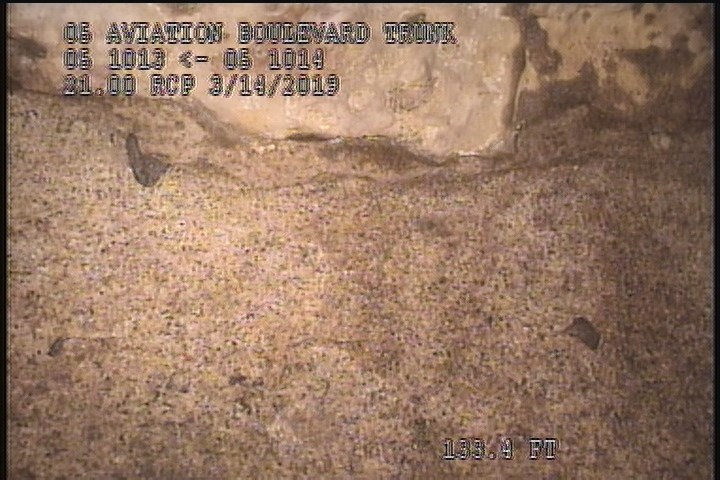

  • Surface Aggregate Visible, from 08 to 11 o'clock, within 8 inches of joint: NO - SEVERE AGG VERY SPORATIC

    133.4 ft. - Surface Aggregate Visible, from 08 to 11 o'clock, within 8 inches of joint: NO - SEVERE AGG VERY SPORATIC

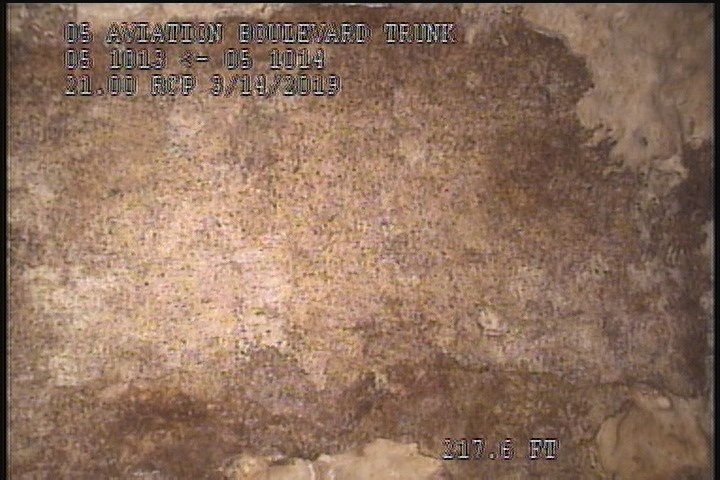

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

    217.6 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

All inspections of P06247Work order 0760333

Observations (12)

DistanceCodeObservation
133.4SAVSEVERE AGG VERY SPORATIC
349.7AMH3:25AM
2SSSBLISTERING PEELING CONCRETE
349.3SSSBLISTERING PEELING CONCRETE
349.3MGOMAG COAT 90% FINISH
2MGOMAG COAT 90% START
0MWL—
0AMH2:55AM
217.6SSSBLISTERING PEELING CONCRETE
0MWM—
131.6SSSBLISTERING PEELING CONCRETYE
25.7SSSBLISTERING CONCRETE

Properties (6)

custom_field_three
SEVERE AGG VERY SPORATIC-90% MAG COAT
custom_field_two
4
customer
LACSD
datetime
2019-03-14T02:46:48-07:00
documentation
MARTIN,OLIVER 111,CASTILLO
is_lateral_inspection
false
