Wastewater/Activity/PacpInspection/1.0Mar 12, 2019, 11:04 AM
05 1015_05 1014A_3122019_040740.mp4
- Date
- 03/12/2019
- W/O
- 0760333
- Weather
- Light Rain
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00421
- PipeID
- P06249
- Time
- 4:04 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H1145
- Sewer Name
- 05 AVIATION BOULEVARD TRUNK
- City
- HAWTHORNE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- 20190312MDM_AVIATION_BOULEVARD_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 05 1015
- Downstream MH
- 05 1014A
- Dir. of Survey
- Downstream
- Length Surveyed
- 87.9 ft.
- Total Length
- 87.9 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

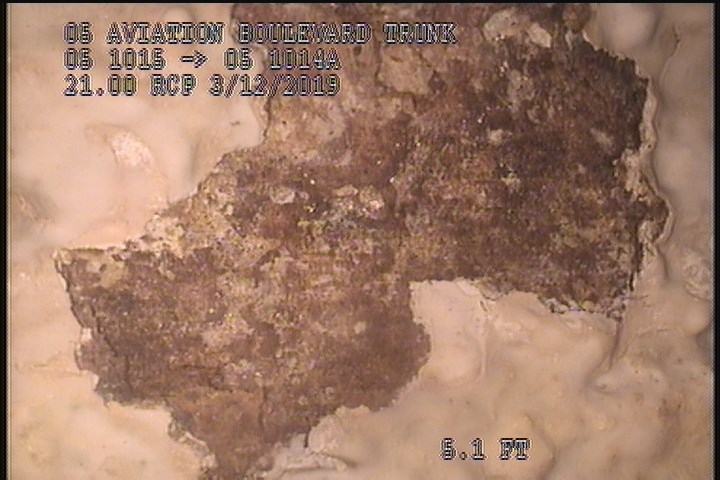

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

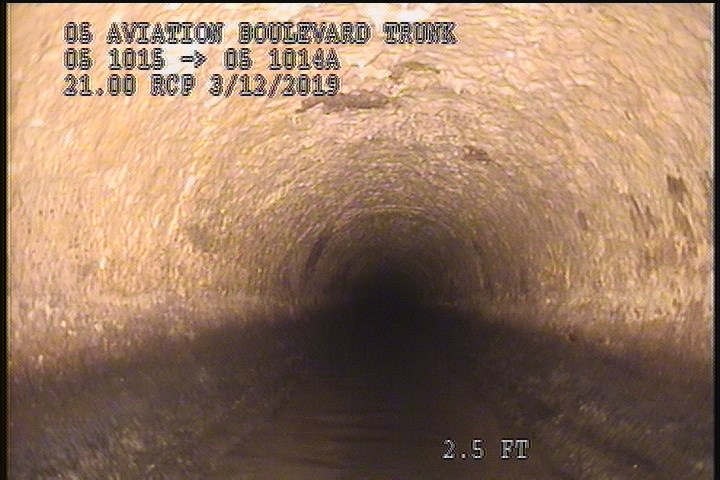

2 ft. - General Observation - 95% MAG COAT START
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | AMH | 4:05AM |
| 87.9 | AMH | 4:15AM |
| 87.5 | MGO | MAG COAT 95% FINISH |
| 0 | MWM | — |
| 2 | SSS | BLISTERING PEELING CONCRETE |
| 2 | MGO | 95% MAG COAT START |
| 87.5 | SSS | BLISTERING PEELING CONCRETE |
Properties (6)
- custom_field_three
- BLISTERING PEELING CONCRETE- 95% MAG COAT
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-03-12T04:04:23-07:00
- documentation
- MARTIN,OLIVER 111,CASTILLO
- is_lateral_inspection
- false
