Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 12, 2019, 09:48 AM

  • 05 1016_05 1015_3122019_025220.mp4

Date
03/12/2019
W/O
0760333
Weather
Light Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00421
PipeID
P06250
Time
2:48 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1145
Sewer Name
05 AVIATION BOULEVARD TRUNK
City
HAWTHORNE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
12
Purpose
Routine Assessment
Project
20190312MDM_AVIATION_BOULEVARD_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Upstream MH
05 1016
Downstream MH
05 1015
Dir. of Survey
Downstream
Length Surveyed
351.5 ft.
Total Length
351.5 ft.
Structural Index
2
Structural Quick
2400
Structural Rating
8
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 05 1016 to 05 1015
MH: 05 1016MH: 05 1015downstream0 ft. AMH - Upstream Manhole, Survey Begins - 3:10AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area2 ft. MGO - General Observation - MAG COAT 95% START2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE144.6 ft. SSS - Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: NO - PEELING CONCRETE167.8 ft. MGO - General Observation - 99% MAG COAT189.5 ft. SSS - Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE261.7 ft. MGO - General Observation - 95% MAG COAT318.8 ft. SSS - Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE351.1 ft. MGO - General Observation - MAG COAT 95 FINISH351.1 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE351.5 ft. ACOM - Cleanout Mainline, Survey Ends - 3:40AM

Observation photos (6)

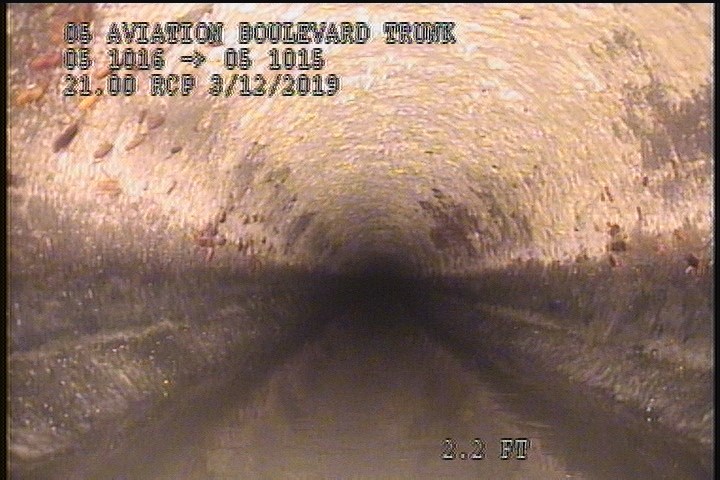

  • General Observation - MAG COAT 95% START

    2 ft. - General Observation - MAG COAT 95% START

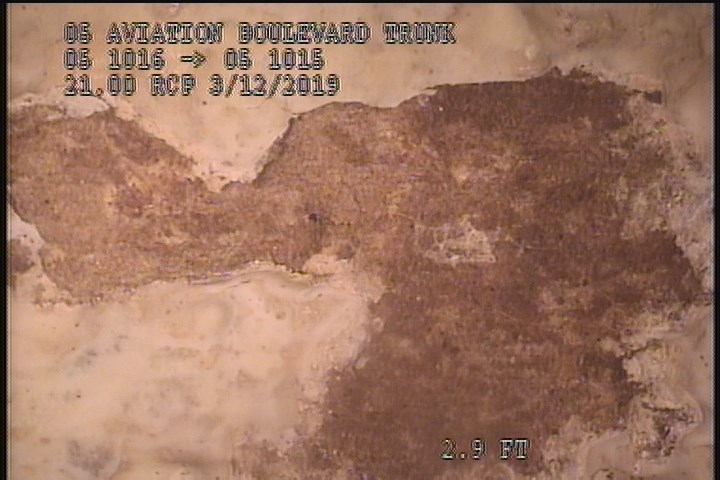

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

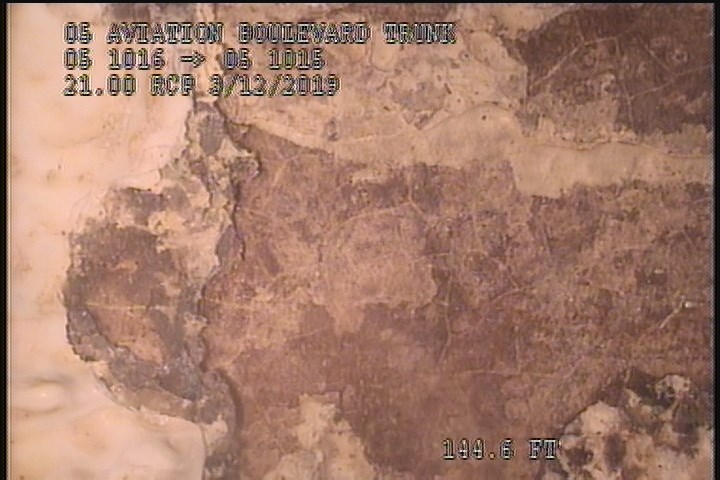

  • Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: NO - PEELING CONCRETE

    144.6 ft. - Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: NO - PEELING CONCRETE

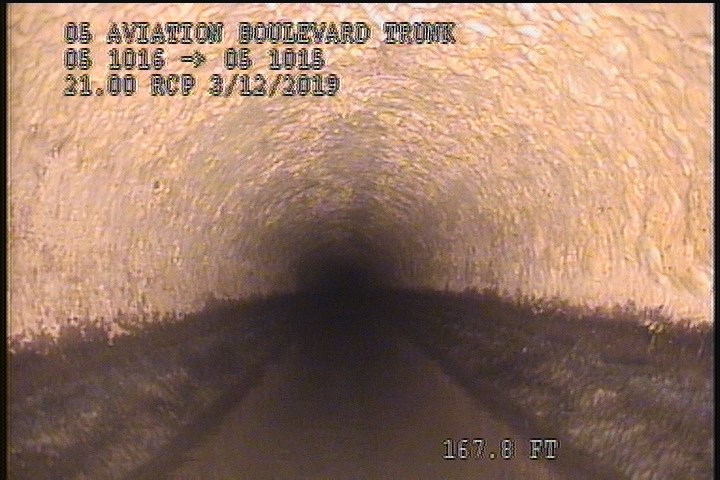

  • General Observation - 99% MAG COAT

    167.8 ft. - General Observation - 99% MAG COAT

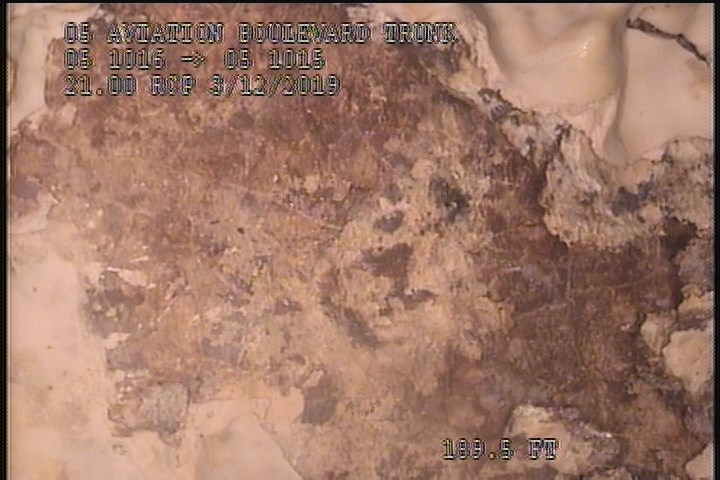

  • Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

    189.5 ft. - Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

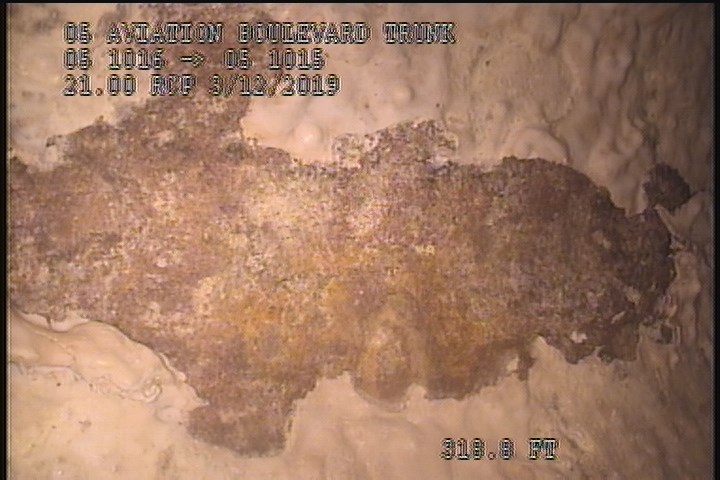

  • Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

    318.8 ft. - Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

All inspections of P06250Work order 0760333

Observations (13)

DistanceCodeObservation
261.7MGO95% MAG COAT
144.6SSSPEELING CONCRETE
0AMH3:10AM
351.1MGOMAG COAT 95 FINISH
351.5ACOM3:40AM
0MWL—
2MGOMAG COAT 95% START
2SSSBLISTERING PEELING CONCRETE
318.8SSSBLISTERING PEELING CONCRETE
351.1SSSBLISTERING PEELING CONCRETE
167.8MGO99% MAG COAT
189.5SSSBLISTERING PEELING CONCRETE
0MWM—

Properties (6)

custom_field_three
BLISTERING PEELING CONCRETE-95% MAG COAT
custom_field_two
4
customer
LACSD
datetime
2019-03-12T02:48:58-07:00
documentation
MARTIN,OLIVER 111,CASTILLO
is_lateral_inspection
false
