Wastewater/Activity/PacpInspection/1.0Mar 11, 2019, 04:02 PM
Section#1_G 0082_G 0081A__3112019__I0122.mp4
- Date
- 03/11/2019
- W/O
- 0759064
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00347
- PipeID
- P10445
- Time
- 9:02 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0122
- Sewer Name
- G JOINT OUTFALL G - UNIT 7
- City
- COMPTON
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- 20190311SHO_JOINT_OUTFALL_G_UNIT_7
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Upstream MH
- G 0082
- Downstream MH
- G 0081A
- Dir. of Survey
- Downstream
- Length Surveyed
- 224.2 ft.
- Total Length
- 224.2 ft.
- Structural Index
- 3
- Structural Quick
- 3G00
- Structural Rating
- 126
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 126
Observation photos (2)

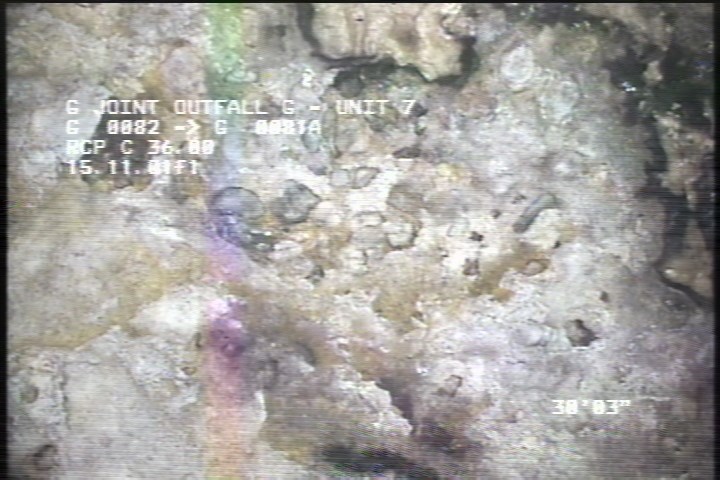

8 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - VERY SPORADIC

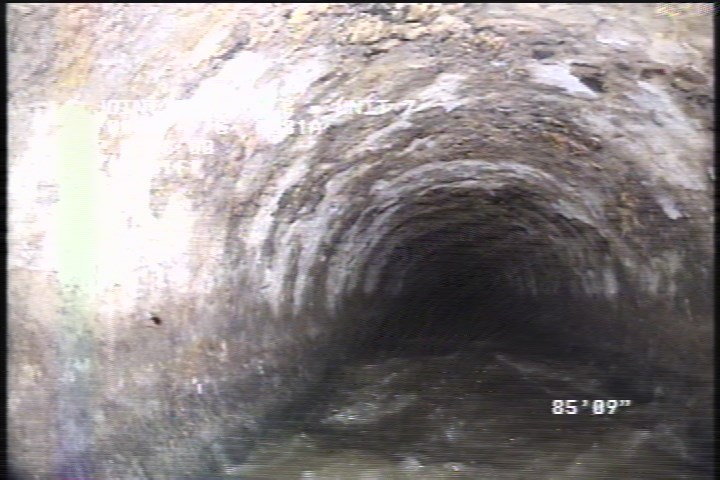

85.1 ft. - General Observation - 25% MAG COAT INTACT
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 220.4 | SAV | — |
| 85.1 | MGO | 25% MAG COAT INTACT |
| 0 | MWM | — |
| 224.2 | MGO | ACTIVE CONNECTION IN THE MH @ 4 |
| 224.2 | AMH | G 0081A |
| 0 | MWL | — |
| 8 | SAV | VERY SPORADIC |
| 0 | AMH | G 0082 |
Properties (6)
- custom_field_three
- AGGREGATE SPORADICALLY THROUGHOUT
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-03-11T09:02:54-07:00
- documentation
- OBREGON, BRAR, YOUNG, SHADLER, RUVALCABA
- is_lateral_inspection
- false
