Wastewater/Activity/PacpInspection/1.0Mar 8, 2019, 05:19 PM
03 0466A_03 0466_382019_092210.mp4
- Date
- 03/08/2019
- W/O
- 0740062
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00387
- PipeID
- P20011
- Time
- 9:19 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7937
- Sewer Name
- 03 NORTH LONG BEACH TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 18
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190308DF_NORTH_LONG_BEACH_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 03 0466
- Downstream MH
- 03 0466A
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.3 ft.
- Total Length
- 2.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 5121
- O&M Rating
- 7
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (5)

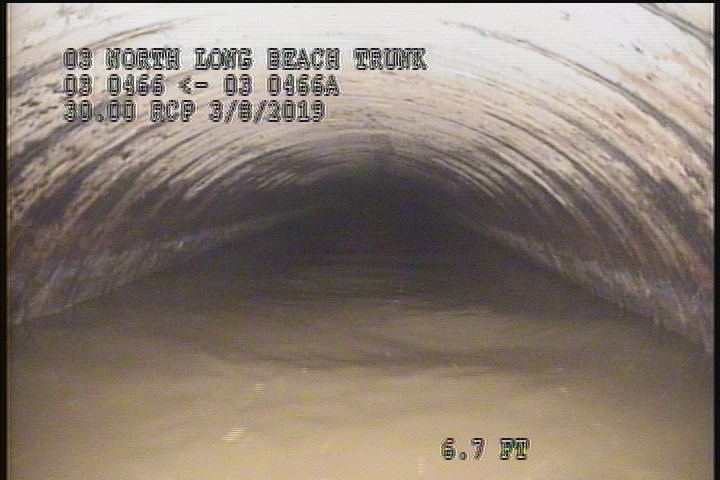

0 ft. - Downstream Manhole, Survey Begins - 9:25 AM

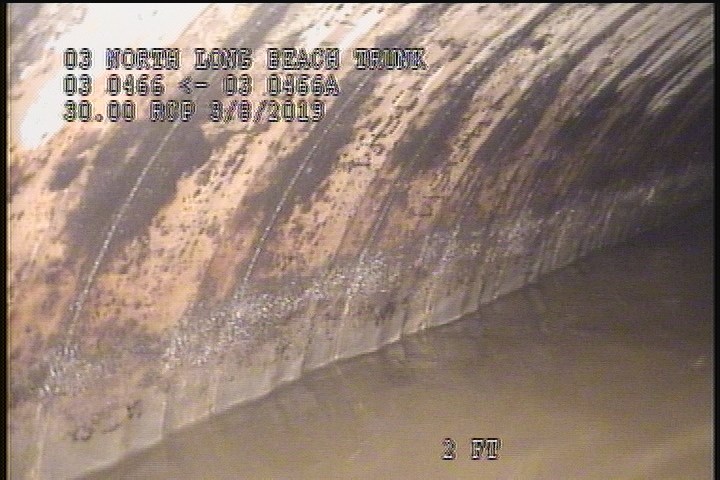

0 ft. - Water Mark, 80 %of cross sectional area

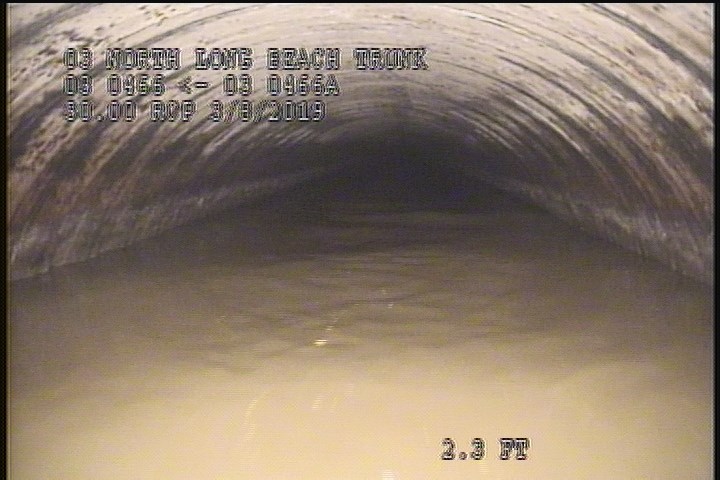

2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

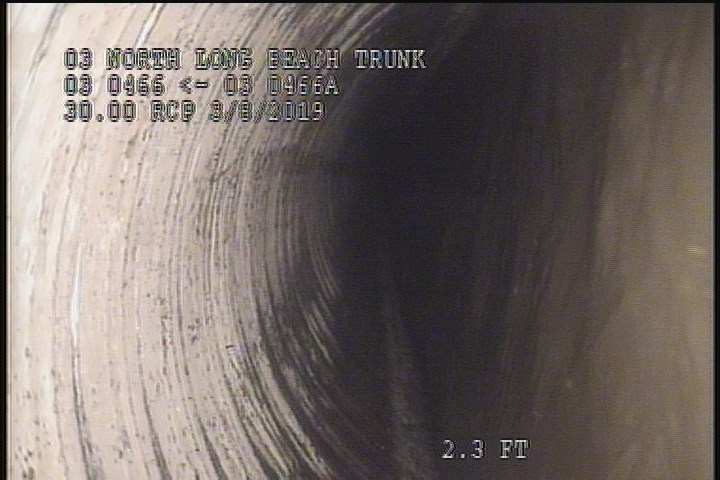

2.3 ft. - General Photograph

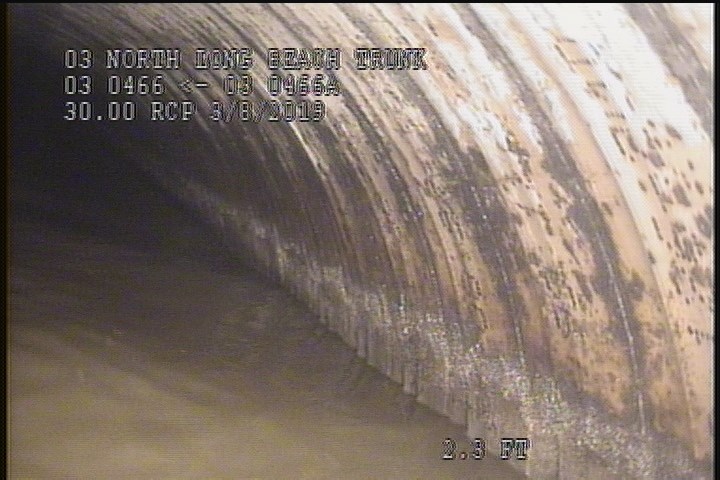

2.3 ft. - General Photograph
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 9:25 AM |
| 2 | DAGS | — |
| 2.3 | AMH | 9:31 AM |
| 0 | MWM | — |
| 2.3 | MGP | — |
| 2.3 | MGP | — |
| 0 | MWL | — |
| 2.2 | MGO | GREASE THROUGHOUT THE REACH (5%) |
Properties (5)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-03-08T09:19:50-08:00
- documentation
- FRANKLIN, IGNACIO, RAMIREZ, RUVALCABA
- is_lateral_inspection
- false
