Wastewater/Activity/PacpInspection/1.0Mar 8, 2019, 07:49 PM
C 0121_C 0120_382019_120236.mp4
- Date
- 03/08/2019
- W/O
- 0759956
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00127
- PipeID
- P09644
- Time
- 11:49 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7937
- Sewer Name
- C JOINT OUTFALL C - UNIT 4B
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 20
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190308DF_JOINT_OUTFALL_C_UNIT_4B
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- C 0121
- Downstream MH
- C 0120
- Dir. of Survey
- Downstream
- Length Surveyed
- 780.6 ft.
- Total Length
- 780.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (7)

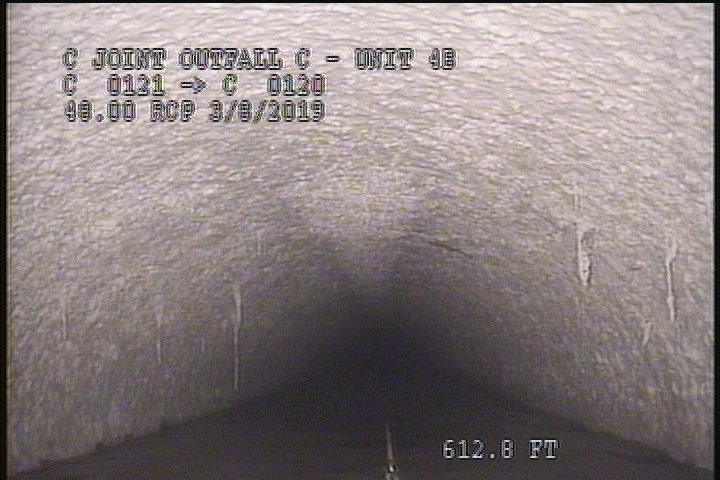

2 ft. - Deposits Attached Ragging, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

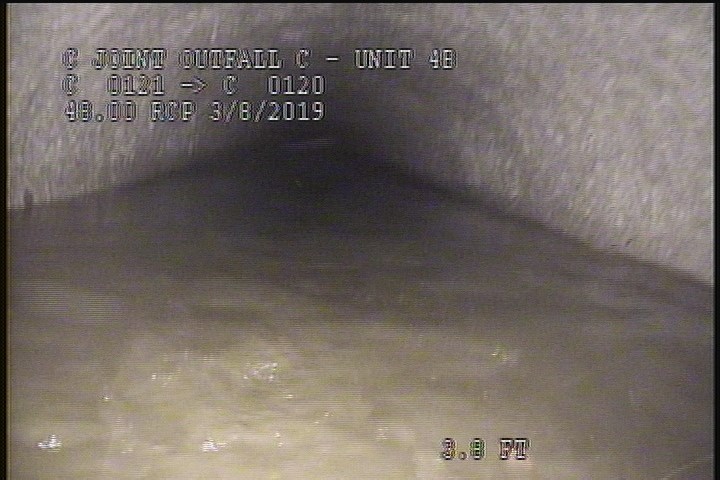

2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 100% MAG

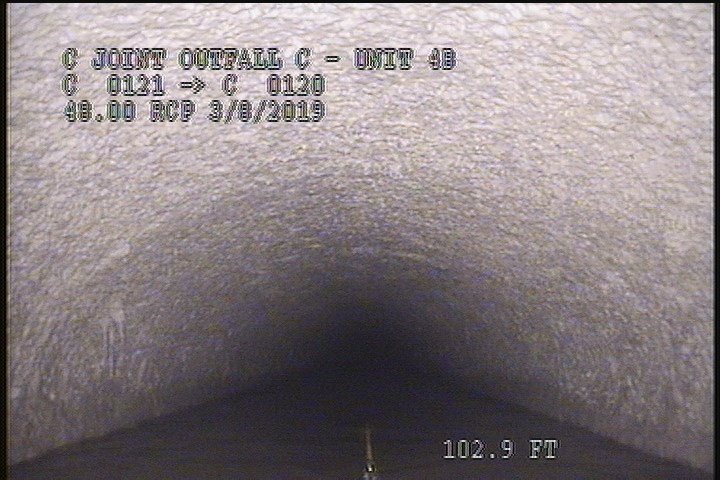

102.9 ft. - General Photograph

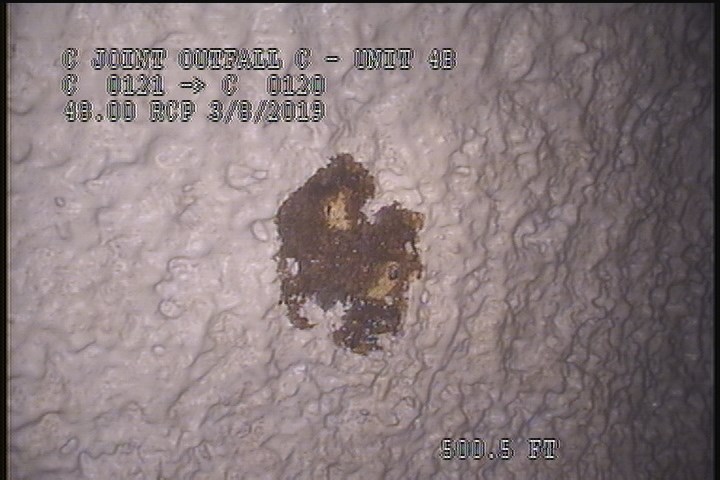

500.5 ft. - General Photograph

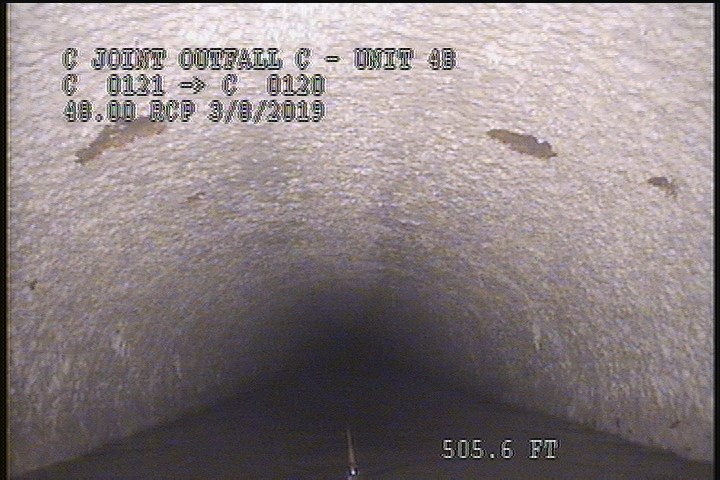

505 ft. - General Photograph

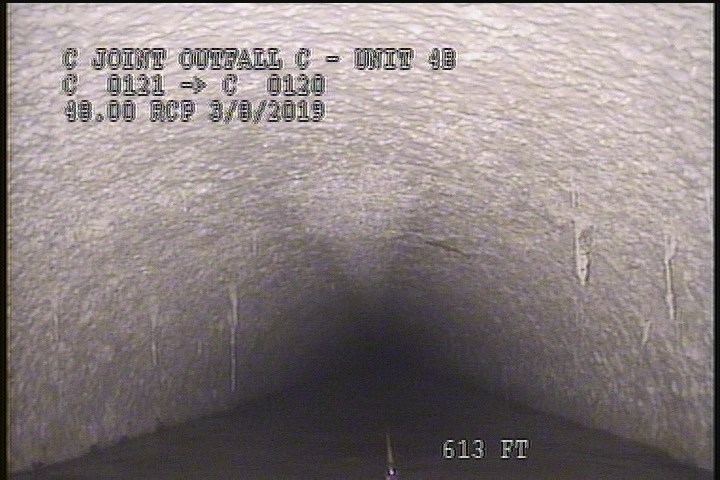

613 ft. - General Photograph

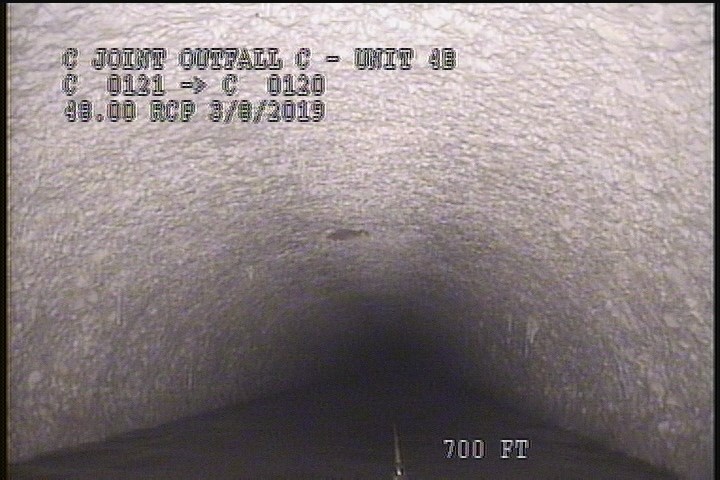

700 ft. - General Photograph
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0.1 | MWM | — |
| 102.9 | MGP | — |
| 0 | AMH | 11:52 AM |
| 613 | MGP | — |
| 780.6 | AMH | 12:27 PM |
| 2 | DAR | — |
| 2 | SZ | 100% MAG |
| 775.2 | SZ | 100% MAG |
| 505 | MGP | — |
| 500.5 | MGP | — |
| 775.1 | DAR | — |
| 700 | MGP | — |
| 780.6 | MGO | GREASE THROUGHOUT THE REACH (5%) |
| 0.1 | MWL | — |
Properties (5)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-03-08T11:49:00-08:00
- documentation
- FRANKLIN, IGNACIO, RAMIREZ, RUVALCABA
- is_lateral_inspection
- false
