Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 16, 2019, 08:22 AM

  • Section#1_08 0173_08 0626__4162019__I0134.mp4

Date
04/16/2019
W/O
0766156
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00009
PipeID
P00231
Time
1:22 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0134
Sewer Name
08 GRACE STREET TRUNK, SECTION 1
City
CARSON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Maintenance Related
Project
20190416MDM_GRACE_STREET_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
08 0173
Downstream MH
08 0626
Dir. of Survey
Downstream
Length Surveyed
329.7 ft.
Total Length
329.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 08 0173 to 08 0626
MH: 08 0173MH: 08 0626downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - ACTIVE MH CONN 9:000 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:35AM21.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - OPEN53.6 ft. MGP - General Photograph - 12" VCP69.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - OPEN110.6 ft. MGO - General Observation - SLIGHT OFFSET JOINTS BOTTOM OF PIPE120.3 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - OPEN171.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - STUB223.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - OPEN275 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - OPEN329.2 ft. MGO - General Observation - MH CONN ACTIVE 12:00329.2 ft. MGO - General Observation - MH CONN 9:00 ACTIVE329.2 ft. JOS - Joint Offset (SLIGHT) - SLIGHT OFFSET JOINTS THROUGHOUT REACH BOTTOM OF PIPE329.2 ft. MGO - General Observation - SLIGHT OFFSET JOINTS BOTTOM OF PIPE AT ALMOST EVERY JOINT329.7 ft. AMH - Downstream Manhole, Survey Ends - 3:10 AM

Observation photos (3)

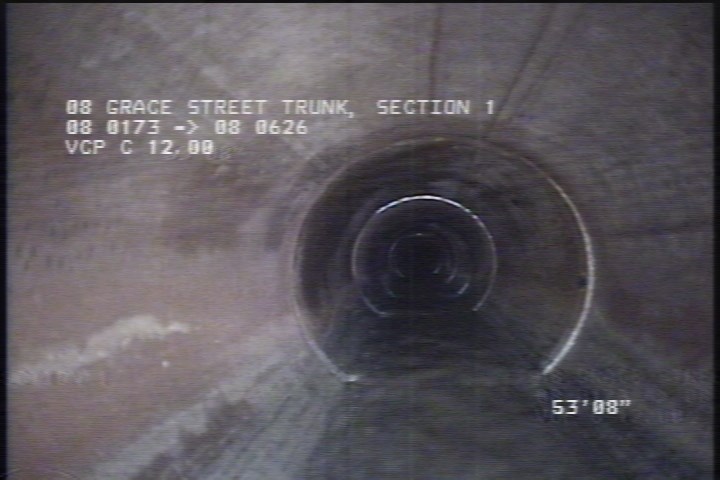

  • General Photograph - 12" VCP

    53.6 ft. - General Photograph - 12" VCP

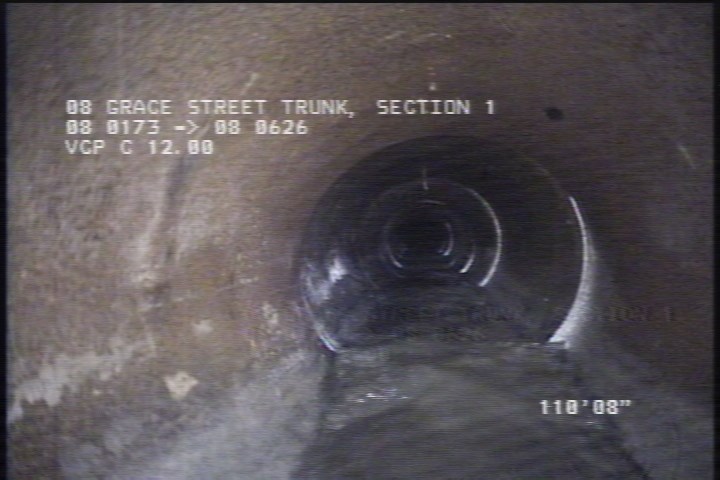

  • General Observation - SLIGHT OFFSET JOINTS BOTTOM OF PIPE

    110.6 ft. - General Observation - SLIGHT OFFSET JOINTS BOTTOM OF PIPE

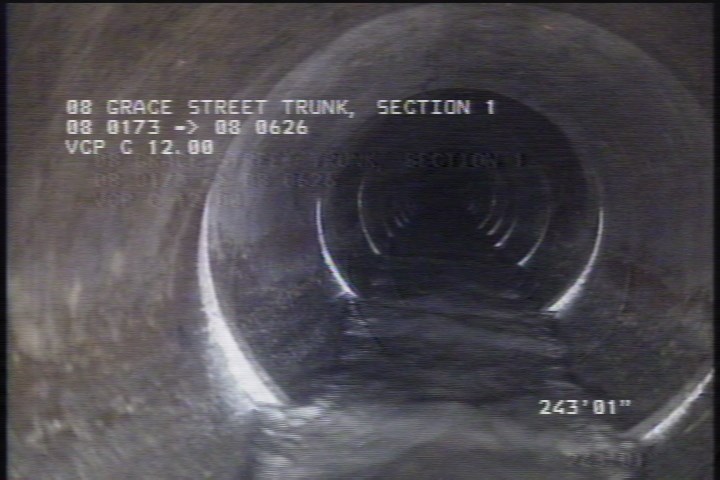

  • Joint Offset (SLIGHT) - SLIGHT OFFSET JOINTS THROUGHOUT REACH BOTTOM OF PIPE

    329.2 ft. - Joint Offset (SLIGHT) - SLIGHT OFFSET JOINTS THROUGHOUT REACH BOTTOM OF PIPE

All inspections of P00231Work order 0766156

Observations (17)

DistanceCodeObservation
110.6MGOSLIGHT OFFSET JOINTS BOTTOM OF PIPE
329.2MGOMH CONN ACTIVE 12:00
329.2MGOMH CONN 9:00 ACTIVE
69.4TFOPEN
53.6MGP12" VCP
329.2JOSSLIGHT OFFSET JOINTS THROUGHOUT REACH BOTTOM OF PIPE
120.3TFOPEN
0MWM—
21.2TFOPEN
329.2MGOSLIGHT OFFSET JOINTS BOTTOM OF PIPE AT ALMOST EVERY JOINT
171.6TFCSTUB
0MGOACTIVE MH CONN 9:00
329.7AMH3:10 AM
0MWL—
223.1TFOPEN
0AMH2:35AM
275TFOPEN

Properties (5)

additional_info
LOOKING FOR ANY DAMAGE OR BLOCKAGES
customer
LACSD
datetime
2019-04-16T01:22:05-07:00
documentation
MARTIN,REVELES,RUVALCABA
is_lateral_inspection
false
