Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 16, 2019, 07:34 AM

  • Section#1_02 1132_02 1131__4162019__I0133R.mp4

Date
04/16/2019
W/O
0765902
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00351
PipeID
P02914
Time
12:34 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Heavy Cleaning
Media Label
I0133R
Sewer Name
02 GARFIELD AVENUE EXTENSION TRUNK
City
MONTEBELLO
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
13
Purpose
Maintenance Related
Project
20190416MDM_GARFIELD_AVENUE_EXTENSION_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
02 1132
Downstream MH
02 1131
Dir. of Survey
Downstream
Length Surveyed
262.7 ft.
Total Length
262.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
4139
O&M Rating
31
Overall Index
3
Overall Quick
—
Overall Rating
31
Pipe schematic from manhole 02 1132 to 02 1131
MH: 02 1132MH: 02 1131downstream0 ft. AMH - Upstream Manhole, Survey Begins - 12:45AM0 ft. MWL - Water Level, 15 %of cross sectional area5.5 ft. MWM - Water Mark, 50 %of cross sectional area5.5 ft. MGO - General Observation - OPEN MH CONN 3:0010.2 ft. RMJ - Roots Medium Joint, from 09 to 03 o'clock, 5 %, within 8 inches of joint: YESR15.1 ft. RMJ - Roots Medium Joint, from 09 to 03 o'clock, 5 %, within 8 inches of joint: YESR27.3 ft. RMJ - Roots Medium Joint, from 09 to 03 o'clock, 5 %, within 8 inches of joint: YESR78.2 ft. RMJ - Roots Medium Joint, from 09 to 05 o'clock, 25 %, within 8 inches of joint: YESR78.2 ft. MGP - General Photograph - 25% ROOTS81.6 ft. RMJ - Roots Medium Joint, from 01 to 04 o'clock, 15 %, within 8 inches of joint: YESR91.2 ft. RMJ - Roots Medium Joint, from 08 to 11 o'clock, 10 %, within 8 inches of joint: YESR94.8 ft. RMJ - Roots Medium Joint, from 08 to 11 o'clock, 15 %, within 8 inches of joint: YESR141.4 ft. RMJ - Roots Medium Joint, from 08 to 11 o'clock, 10 %, within 8 inches of joint: YESR192.5 ft. RMJ - Roots Medium Joint, from 08 to 10 o'clock, 5 %, within 8 inches of joint: YESR262.7 ft. AMH - Downstream Manhole, Survey Ends - 1:10AM

Observation photos (5)

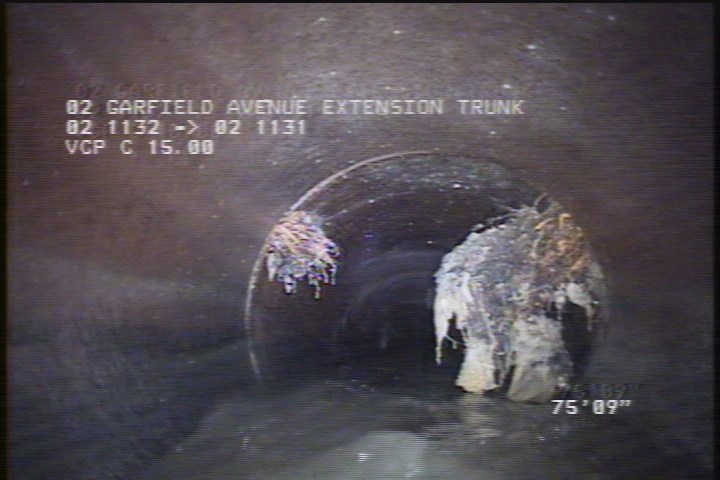

  • Roots Medium Joint, from 09 to 05 o'clock, 25 %, within 8 inches of joint: YESR

    78.2 ft. - Roots Medium Joint, from 09 to 05 o'clock, 25 %, within 8 inches of joint: YESR

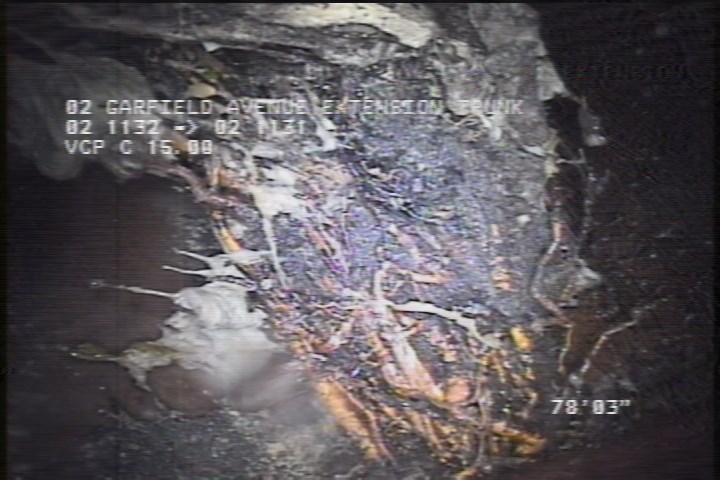

  • General Photograph - 25% ROOTS

    78.2 ft. - General Photograph - 25% ROOTS

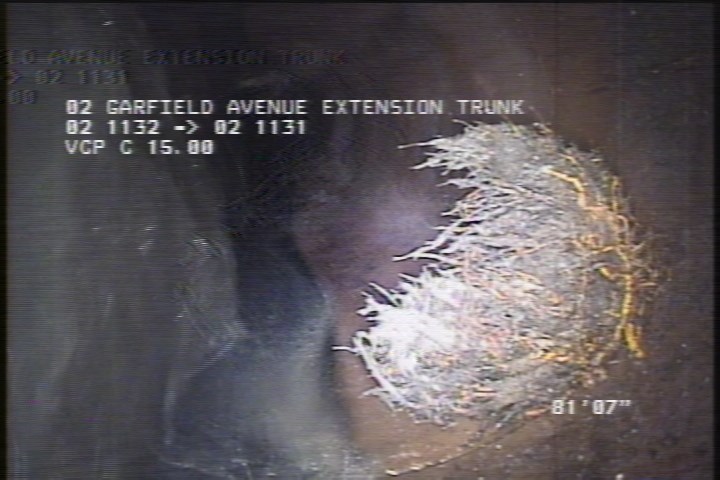

  • Roots Medium Joint, from 01 to 04 o'clock, 15 %, within 8 inches of joint: YESR

    81.6 ft. - Roots Medium Joint, from 01 to 04 o'clock, 15 %, within 8 inches of joint: YESR

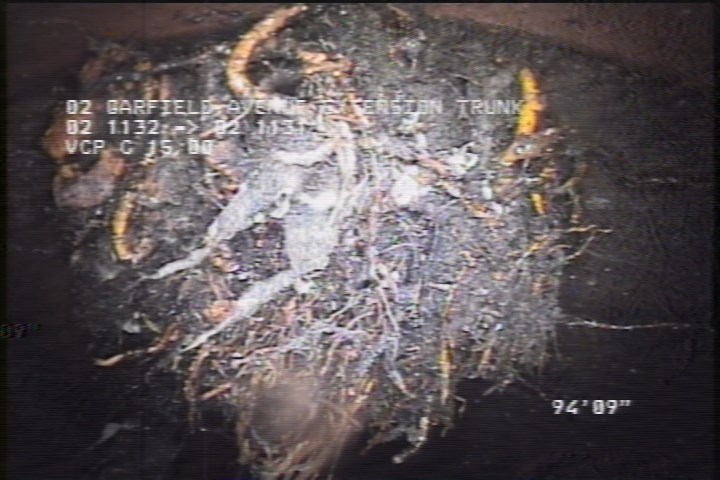

  • Roots Medium Joint, from 08 to 11 o'clock, 15 %, within 8 inches of joint: YESR

    94.8 ft. - Roots Medium Joint, from 08 to 11 o'clock, 15 %, within 8 inches of joint: YESR

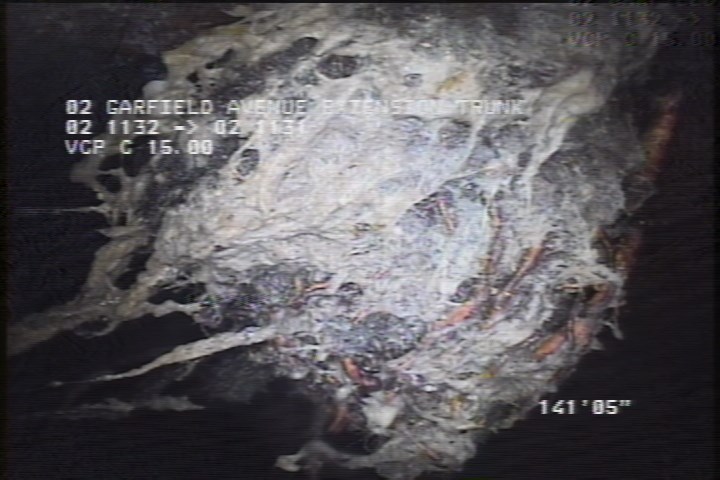

  • Roots Medium Joint, from 08 to 11 o'clock, 10 %, within 8 inches of joint: YESR

    141.4 ft. - Roots Medium Joint, from 08 to 11 o'clock, 10 %, within 8 inches of joint: YESR

All inspections of P02914Work order 0765902

Observations (15)

DistanceCodeObservation
5.5MWM—
81.6RMJ—
141.4RMJ—
5.5MGOOPEN MH CONN 3:00
0AMH12:45AM
10.2RMJ—
262.7AMH1:10AM
94.8RMJ—
192.5RMJ—
91.2RMJ—
78.2RMJ—
27.3RMJ—
15.1RMJ—
0MWL—
78.2MGP25% ROOTS

Properties (5)

additional_info
POST ROOT EVALUATION
customer
LACSD
datetime
2019-04-16T00:34:48-07:00
documentation
MARTIN,REVELES,RUVALCABA
is_lateral_inspection
false
