Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 3, 2019, 08:16 AM

  • 18 0510_18 0509_432019_013520.mp4

Date
04/03/2019
W/O
0764430
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00705
PipeID
P14364
Time
1:16 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1168
Sewer Name
18 SOUTH PLANT OUTFALL TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
10
Purpose
Maintenance Related
Project
20190403MDM_SOUTH_PLANT_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
18 0510
Downstream MH
18 0509
Dir. of Survey
Downstream
Length Surveyed
718 ft.
Total Length
718 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 18 0510 to 18 0509
MH: 18 0510MH: 18 0509downstream0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 1:30AM0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft.0 ft. MWL - Water Level, 10 %of cross sectional area125.3 ft. MGO - General Observation - 24" VCP179 ft. DSGV - Deposits Settled Gravel, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start201 ft. DSGV - Deposits Settled Gravel, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish406.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT JOINT TO JOINT LONGER524.5 ft. MWL - Water Level, 5 %of cross sectional area718 ft. AMH - Downstream Manhole, Survey Ends - 2:35AM

Observation photos (3)

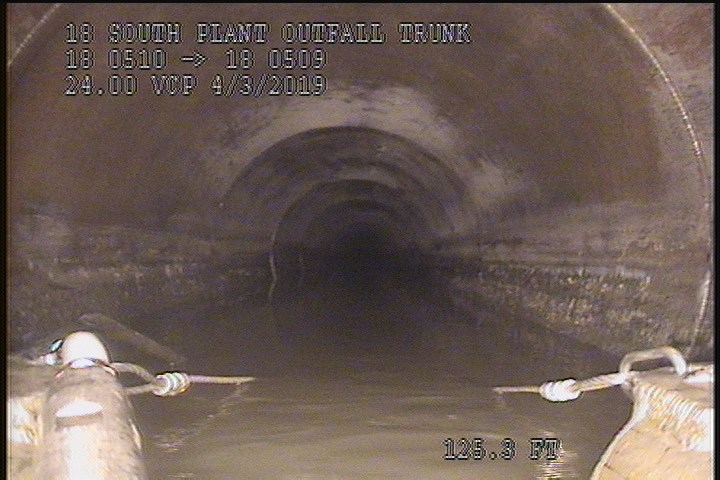

  • General Observation - 24" VCP

    125.3 ft. - General Observation - 24" VCP

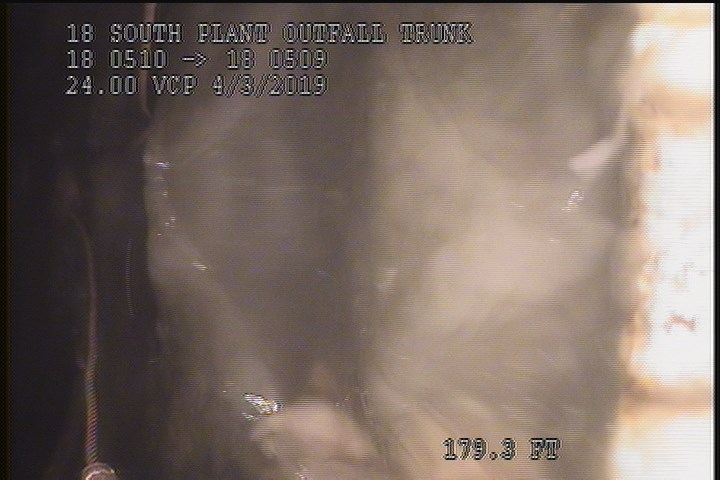

  • Deposits Settled Gravel, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    179 ft. - Deposits Settled Gravel, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

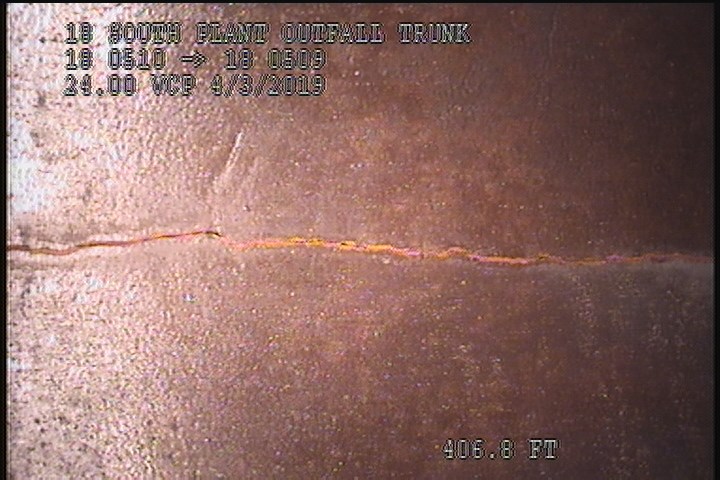

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT JOINT TO JOINT LONGER

    406.8 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT JOINT TO JOINT LONGER

All inspections of P14364Work order 0764430

Observations (11)

DistanceCodeObservation
718AMH2:35AM
125.3MGO24" VCP
201DSGV—
0MGOConn. @ Mh, 9 O' Clock. Active
0AMH1:30AM
406.8FLSLIGHT JOINT TO JOINT LONGER
0MWM—
0——
179DSGV—
524.5MWL—
0MWL—

Properties (5)

additional_info
LOOKING FOR HOLES-MAJOR DAMAGE
customer
LACSD
datetime
2019-04-03T01:16:40-07:00
documentation
MARTIN,OLIVER 111,RUVALCABA
is_lateral_inspection
false
