Wastewater/Activity/PacpInspection/1.0Apr 1, 2019, 07:31 PM
05 1975_J 0182_412019_124737.mp4
- Date
- 04/01/2019
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00545
- PipeID
- P07175
- Time
- 12:31 PM
- Certificate
- U-10140-0602254
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7951
- Sewer Name
- 05 9TH STREET CONNECTION TRUNK
- City
- SAN PEDRO
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 47A
- Purpose
- Routine Assessment
- Project
- 20190401SHO_9TH_STREET_CONNECTION_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 05 1975
- Downstream MH
- J 0182
- Dir. of Survey
- Downstream
- Length Surveyed
- 36.8 ft.
- Total Length
- 36.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

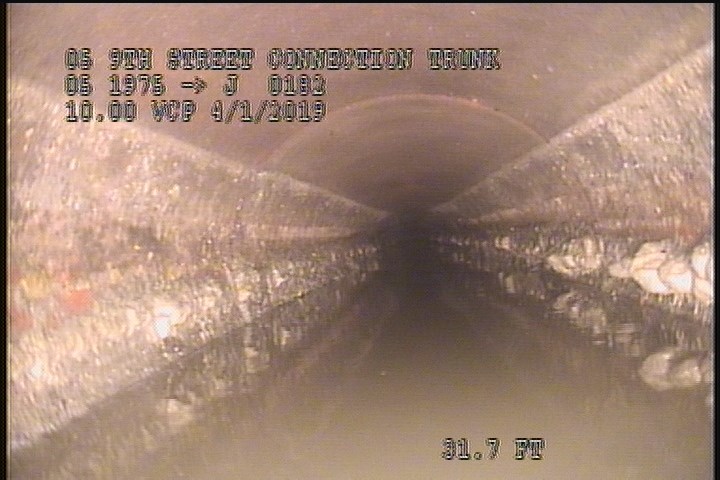

31.7 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

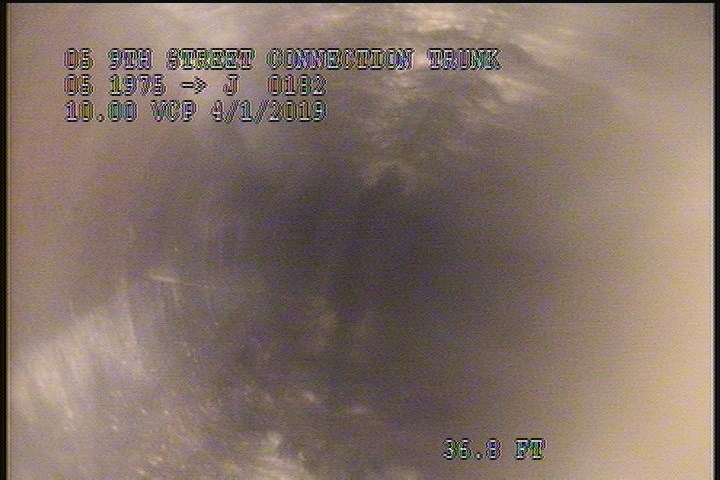

36.8 ft. - Survey Abandoned - FULL PIPE OF WATER
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 36.8 | DAGS | — |
| 0 | MWL | — |
| 0 | AMH | MH 1975 |
| 31.7 | DAGS | — |
| 36.8 | MSA | FULL PIPE OF WATER |
Properties (4)
- customer
- LACSD
- datetime
- 2019-04-01T12:31:49-07:00
- documentation
- OBREGON, BRAR, YOUNG, CASTILLO
- is_lateral_inspection
- false
