Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 1, 2019, 01:00 PM

  • 08 0007_08 0006_412019_060525.mp4

Date
04/01/2019
W/O
0763628
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00016
PipeID
P00007
Time
6:00 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1166
Sewer Name
08 MAIN STREET TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
07
Purpose
Capital Improvement Program Assesment
Project
20190401MDM_MAIN_STREET_TRUNK
Material
RCP-CTL
Shape
Circular
Height
33 in.
Upstream MH
08 0007
Downstream MH
08 0006
Dir. of Survey
Downstream
Length Surveyed
14.7 ft.
Total Length
14.7 ft.
Structural Index
5
Structural Quick
5141
Structural Rating
9
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
4
Overall Quick
—
Overall Rating
15
Pipe schematic from manhole 08 0007 to 08 0006
MH: 08 0007MH: 08 0006downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 6:00AM0 ft. MWM - Water Mark, 50 %of cross sectional area2 ft. MGO - General Observation - MISING TILES 99% START2 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG AREAS OF MISSING TILES2 ft. MGO - General Observation - MAG COAT 98% START8 ft. SRC - Surface Reinforcement Corroded, from 10 to 02 o'clock, within 8 inches of joint: NO - LONG & CIRCUM REBAR14 ft. MGO - General Observation - 98% MAG COAT FINISH14 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 09 o'clock, , within 8 inches of joint: NO - INSIDE MH14 ft. MGO - General Observation - 99% MISSING TILES FINISH14 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active14 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG AREAS OF MISSING TILES14.7 ft. AMH - Downstream Manhole, Survey Ends - 6:05AM

Observation photos (5)

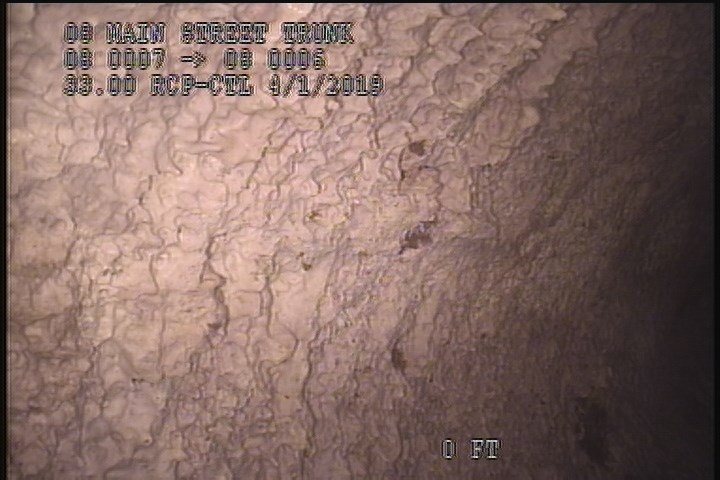

  • General Observation - MISING TILES 99% START

    2 ft. - General Observation - MISING TILES 99% START

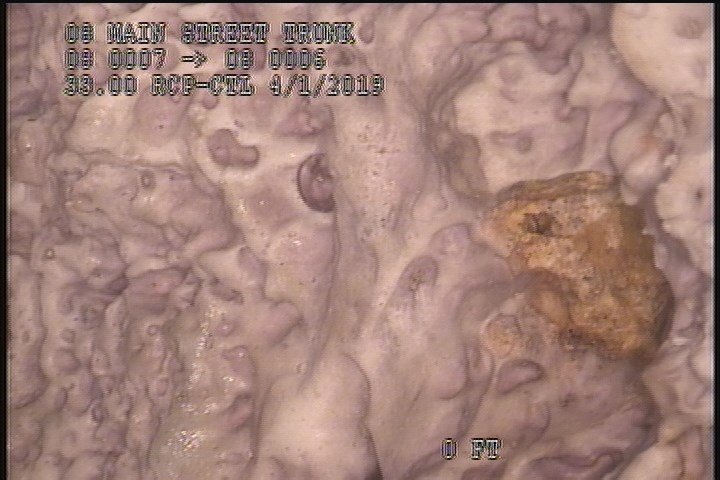

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG AREAS OF MISSING TILES

    2 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG AREAS OF MISSING TILES

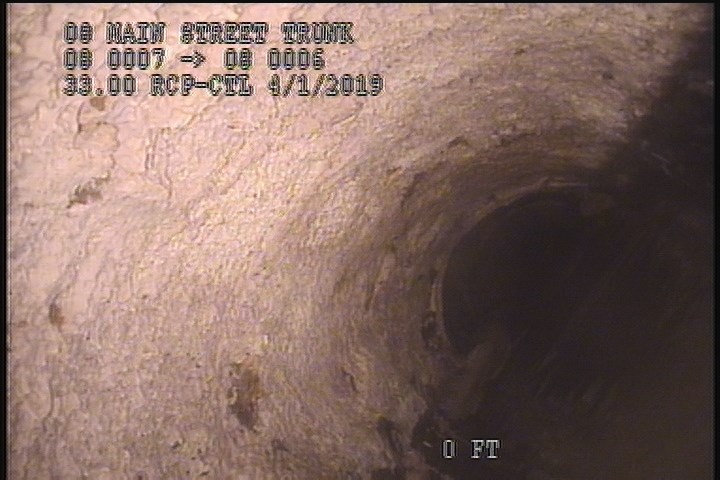

  • General Observation - MAG COAT 98% START

    2 ft. - General Observation - MAG COAT 98% START

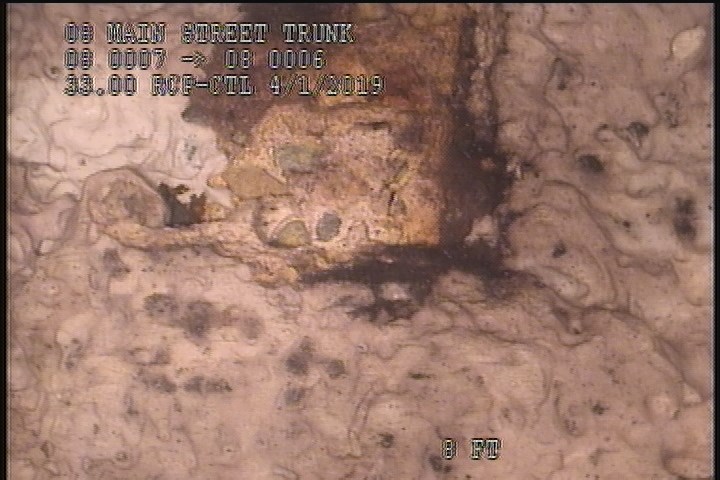

  • Surface Reinforcement Corroded, from 10 to 02 o'clock, within 8 inches of joint: NO - LONG & CIRCUM REBAR

    8 ft. - Surface Reinforcement Corroded, from 10 to 02 o'clock, within 8 inches of joint: NO - LONG & CIRCUM REBAR

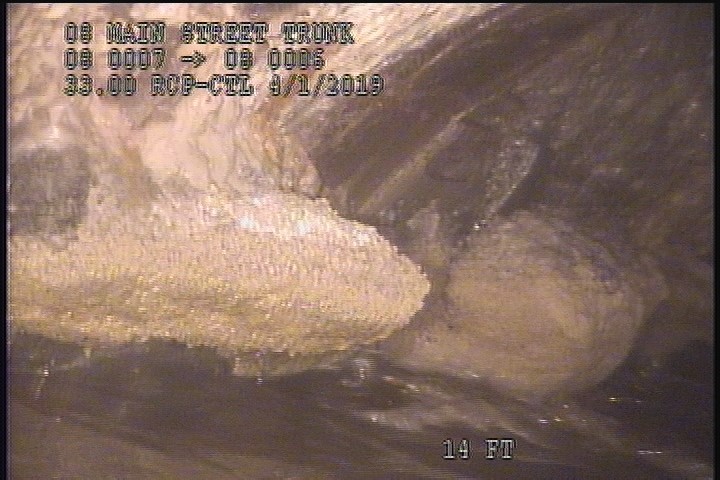

  • Deposits Attached Grease, 10 %of cross sectional area, from 08 to 09 o'clock, , within 8 inches of joint: NO - INSIDE MH

    14 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 09 o'clock, , within 8 inches of joint: NO - INSIDE MH

All inspections of P00007Work order 0763628

Observations (13)

DistanceCodeObservation
8SRCLONG & CIRCUM REBAR
2MGOMISING TILES 99% START
0MWL—
2SAMSEVERE AGG AREAS OF MISSING TILES
14MGO98% MAG COAT FINISH
14DAGSINSIDE MH
0AMH6:00AM
14MGO99% MISSING TILES FINISH
14MGOConn. @ Mh, 3 O' Clock. Active
14.7AMH6:05AM
14SAMSEVERE AGG AREAS OF MISSING TILES
2MGOMAG COAT 98% START
0MWM—

Properties (6)

custom_field_three
LONG & CIRCUM REBAR CORRODED-98% MAG COAT
custom_field_two
1
customer
LACSD
datetime
2019-04-01T06:00:44-07:00
documentation
MARTIN,REVELES,OLIVER 111,RUVALCABA
is_lateral_inspection
false
