Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 1, 2019, 08:00 AM

  • 08 0009_08 0008_412019_050008.mp4

Date
04/01/2019
W/O
0763628
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00016
PipeID
P00009
Time
1:00 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1166
Sewer Name
08 MAIN STREET TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
07
Purpose
Capital Improvement Program Assesment
Project
20190401MDM_MAIN_STREET_TRUNK
Material
RCP-CTL
Shape
Circular
Height
33 in.
Upstream MH
08 0009
Downstream MH
08 0008
Dir. of Survey
Downstream
Length Surveyed
301.8 ft.
Total Length
301.8 ft.
Structural Index
5
Structural Quick
5141
Structural Rating
9
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 08 0009 to 08 0008
MH: 08 0009MH: 08 0008downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:45AM0 ft. MWL - Water Level, 20 %of cross sectional area2 ft. MGO - General Observation - 5% MISSING TILES START2 ft. MGO - General Observation - 98% MAG COAT START2 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG AREAS OF MISSING TILES44.7 ft. MGO - General Observation - 30% MISSING TILES48.1 ft. MGO - General Observation - 100% MISSING TILES 1 SECTION96.6 ft. MGO - General Observation - 100% MISSING TILES 1 SECTION99.1 ft. SRC - Surface Reinforcement Corroded, from 12 to 02 o'clock, within 8 inches of joint: NO - CIRCUM REBAR114.6 ft. MGO - General Observation - 100% MISSING TILES 1 SECTION127.3 ft. MGO - General Observation - 80% MISSING TILES START167.3 ft. MGO - General Observation - 5% MISSING TILES START210.9 ft. MGO - General Observation - 100% MISSING TILES228.7 ft. MGO - General Observation - 10% MISSING TILES301.4 ft. MGO - General Observation - 10% MISSING TILES FINISH301.4 ft. MGO - General Observation - 98% MAG COAT FINISH301.4 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG AREAS OF MISSING TILES301.8 ft. AMH - Downstream Manhole, Survey Ends - 5:10AM

Observation photos (8)

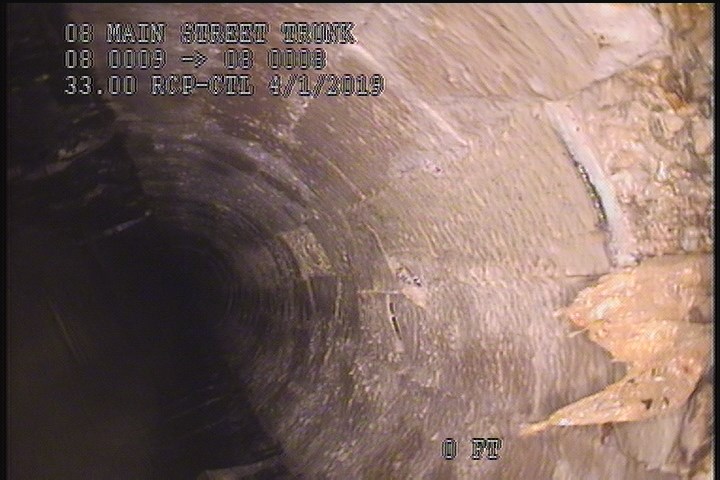

  • General Observation - 5% MISSING TILES START

    2 ft. - General Observation - 5% MISSING TILES START

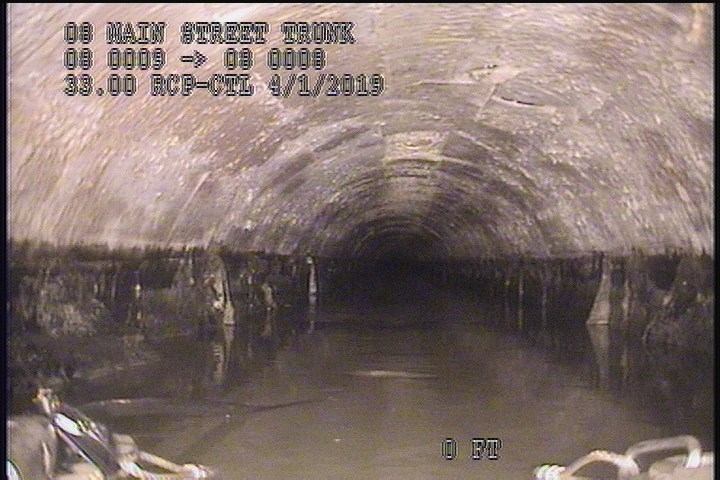

  • General Observation - 98% MAG COAT START

    2 ft. - General Observation - 98% MAG COAT START

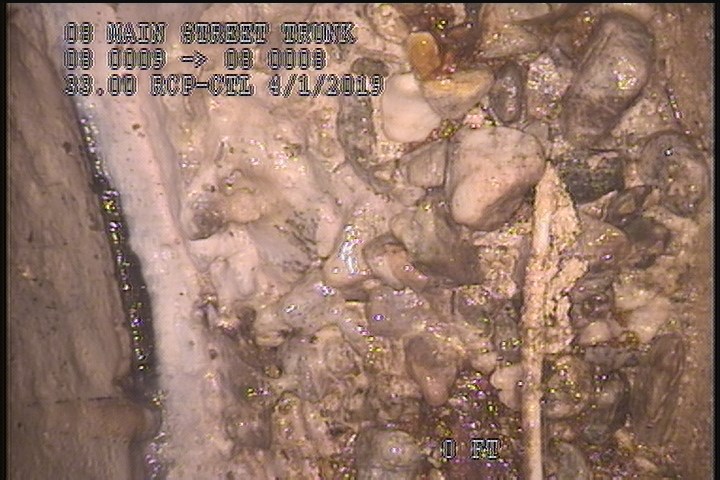

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG AREAS OF MISSING TILES

    2 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG AREAS OF MISSING TILES

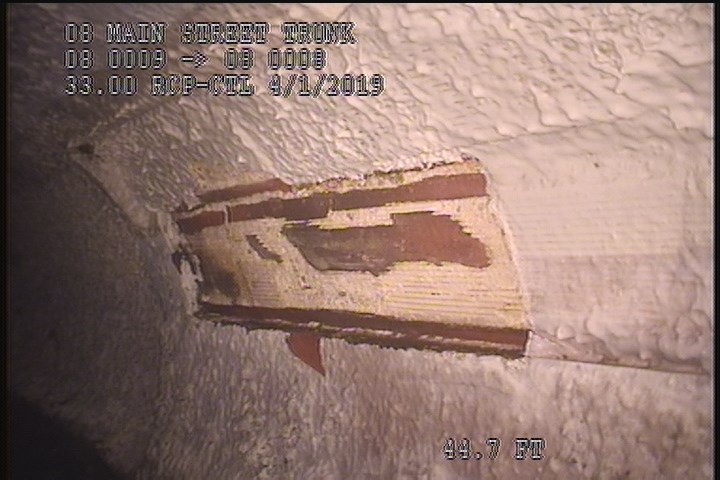

  • General Observation - 30% MISSING TILES

    44.7 ft. - General Observation - 30% MISSING TILES

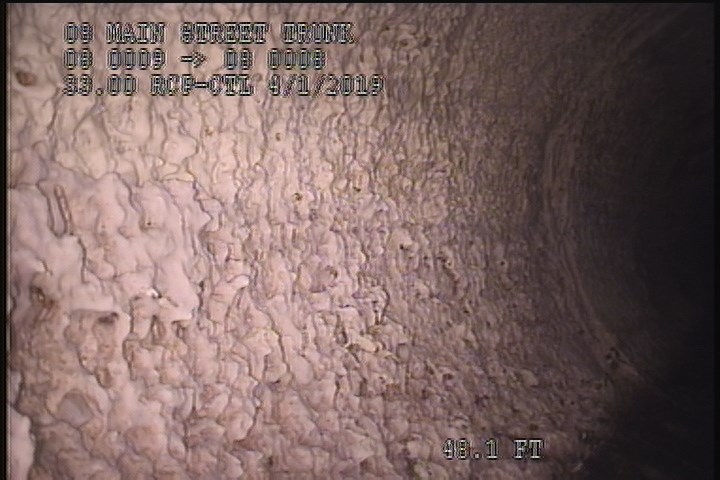

  • General Observation - 100% MISSING TILES 1 SECTION

    48.1 ft. - General Observation - 100% MISSING TILES 1 SECTION

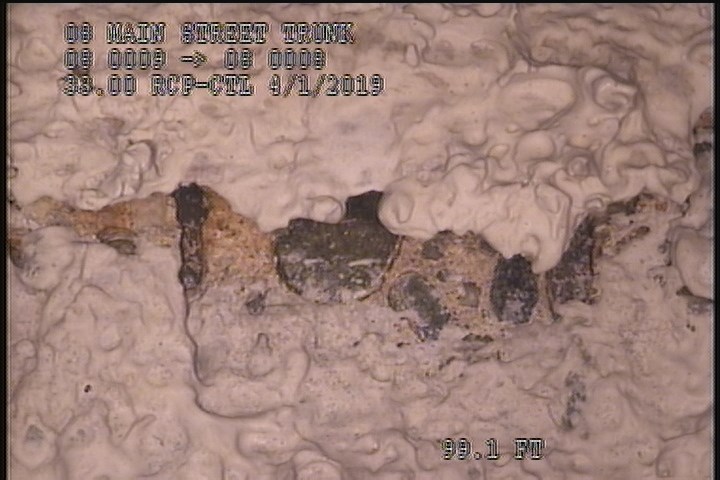

  • Surface Reinforcement Corroded, from 12 to 02 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

    99.1 ft. - Surface Reinforcement Corroded, from 12 to 02 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

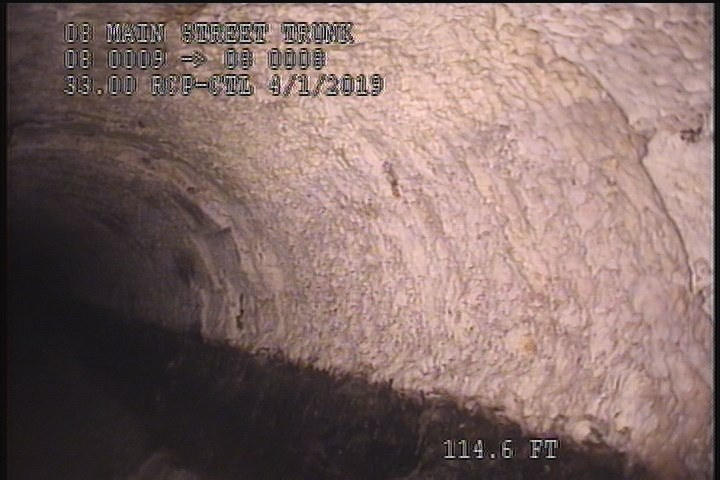

  • General Observation - 100% MISSING TILES 1 SECTION

    114.6 ft. - General Observation - 100% MISSING TILES 1 SECTION

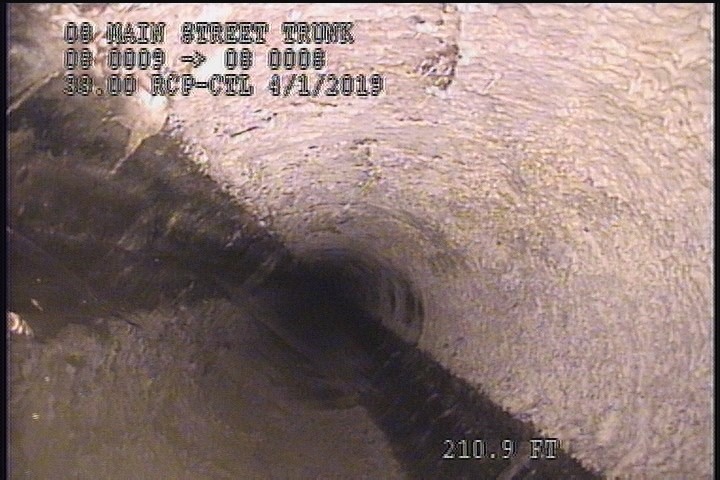

  • General Observation - 100% MISSING TILES

    210.9 ft. - General Observation - 100% MISSING TILES

All inspections of P00009Work order 0763628

Observations (19)

DistanceCodeObservation
44.7MGO30% MISSING TILES
210.9MGO100% MISSING TILES
48.1MGO100% MISSING TILES 1 SECTION
2MGO5% MISSING TILES START
301.4MGO10% MISSING TILES FINISH
301.4MGO98% MAG COAT FINISH
301.8AMH5:10AM
167.3MGO5% MISSING TILES START
96.6MGO100% MISSING TILES 1 SECTION
99.1SRCCIRCUM REBAR
0MWM—
114.6MGO100% MISSING TILES 1 SECTION
0AMH4:45AM
228.7MGO10% MISSING TILES
2MGO98% MAG COAT START
2SAMSEVERE AGG AREAS OF MISSING TILES
127.3MGO80% MISSING TILES START
0MWL—
301.4SAMSEVERE AGG AREAS OF MISSING TILES

Properties (6)

custom_field_three
CORRODED REBAR-98% MAG COAT
custom_field_two
1
customer
LACSD
datetime
2019-04-01T01:00:20-07:00
documentation
MARTIN,REVELES,OLIVER 111,RUVALCABA
is_lateral_inspection
false
