Wastewater/Activity/PacpInspection/1.0Apr 1, 2019, 07:52 AM
08 0011_08 0010_412019_033515.mp4
- Date
- 04/01/2019
- W/O
- 0763628
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00016
- PipeID
- P00011
- Time
- 12:52 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H1166
- Sewer Name
- 08 MAIN STREET TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 07
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190401MDM_MAIN_STREET_TRUNK
- Material
- RCP-CTL
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- 08 0011
- Downstream MH
- 08 0010
- Dir. of Survey
- Downstream
- Length Surveyed
- 261.8 ft.
- Total Length
- 261.8 ft.
- Structural Index
- 4
- Structural Quick
- 5142
- Structural Rating
- 13
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (8)

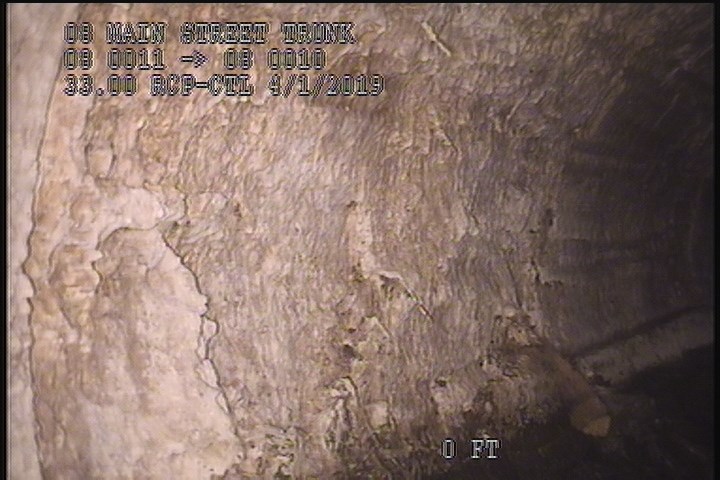

2 ft. - General Observation - 30% MISSING TILES START

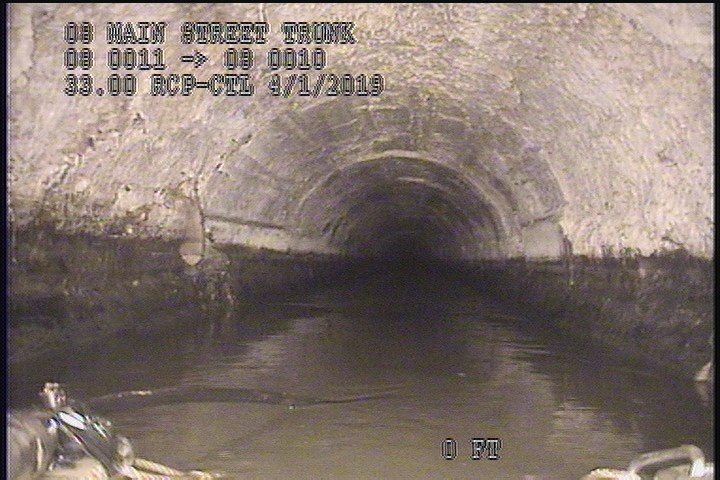

2 ft. - General Observation - MAG COAT 98% START

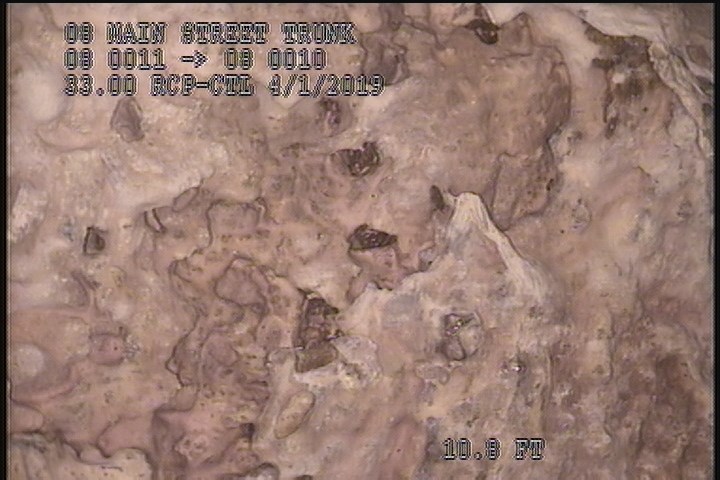

2 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG AREAS OF MISSING TILES

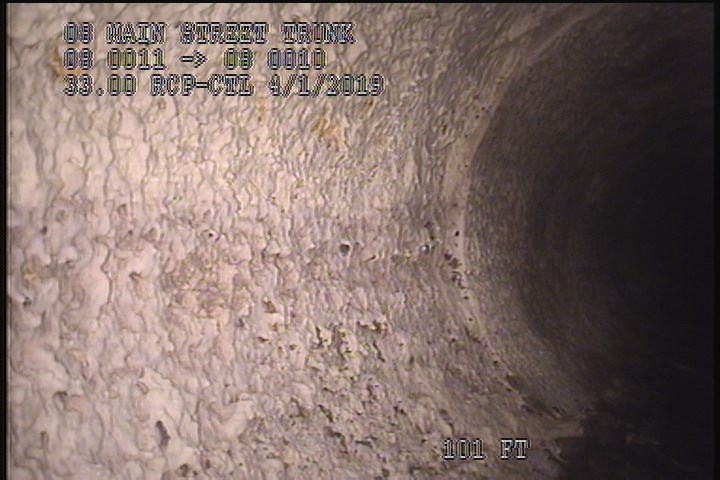

101 ft. - General Observation - 100% MISSING TILES 1 SECTION

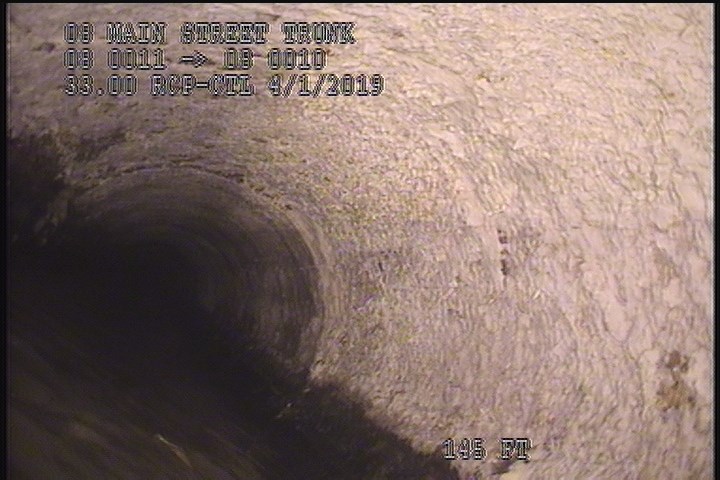

145 ft. - General Observation - 100% MISSING TILES 1 SECTION

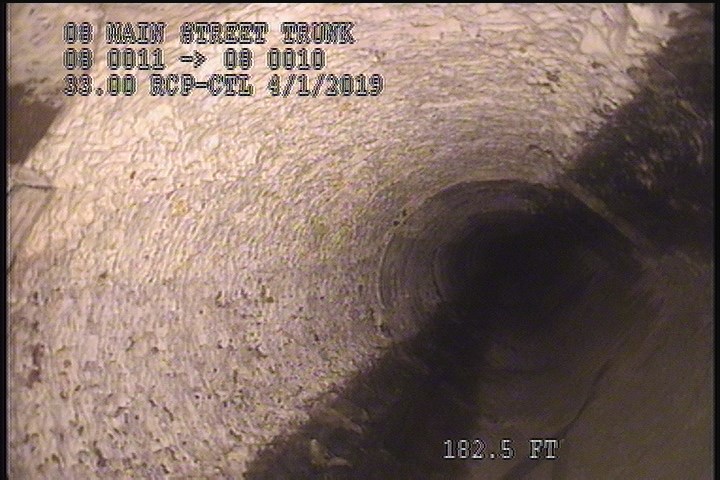

182.5 ft. - General Observation - 100% MISSING TILES 1 SECTION

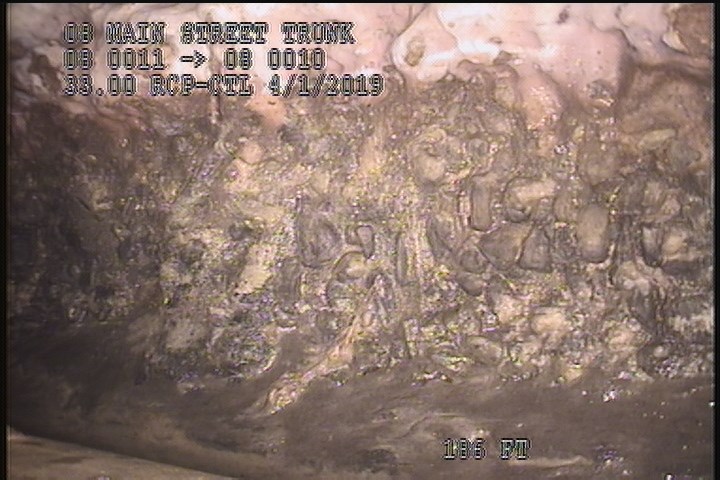

186 ft. - Surface Aggregate Missing, from 03 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG

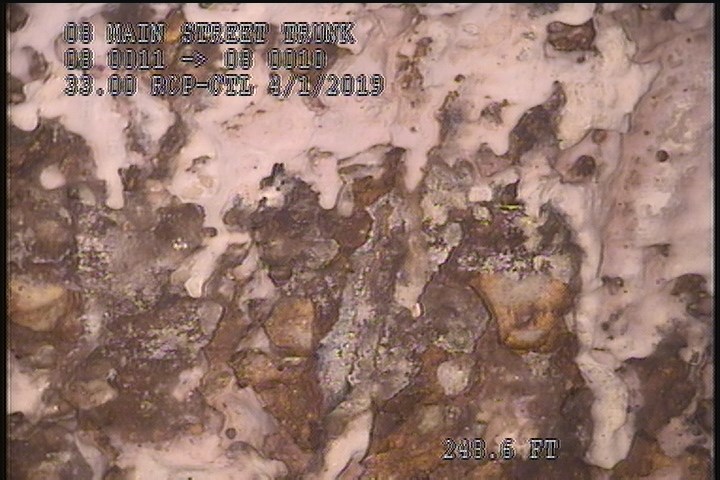

248.6 ft. - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: NO - CIRCUM REBAR
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 195.6 | MGO | 100% MISSING AGG 1 SECTION |
| 213.4 | MGO | 90% MISSING TILES START |
| 69.3 | MGO | 100% MISSING TILES |
| 248.6 | SRC | CIRCUM REBAR |
| 89.8 | MGO | 5% MISSING TILES |
| 186 | SAM | SEVERE AGG |
| 261.4 | MGO | 98% MAG COAT FINISH |
| 0 | AMH | 3:25AM |
| 164 | MGO | 100% MISSING TILES 1 SECTION |
| 182.5 | MGO | 100% MISSING TILES 1 SECTION |
| 101 | MGO | 100% MISSING TILES 1 SECTION |
| 2 | MGO | 30% MISSING TILES START |
| 2 | MGO | MAG COAT 98% START |
| 0 | MWM | — |
| 0 | MWL | — |
| 145 | MGO | 100% MISSING TILES 1 SECTION |
| 261.8 | AMH | 3:50AM |
| 2 | SAM | SEVERE AGG AREAS OF MISSING TILES |
| 261.4 | SAM | SEVERE AGG AREAS OF MISSING TILES |
Properties (6)
- custom_field_three
- CORRODED REBAR UNDER 98% MAG COAT
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2019-04-01T00:52:04-07:00
- documentation
- MARTIN,REVELES,OLIVER 111,RUVALCABA
- is_lateral_inspection
- false
