Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 2, 2019, 11:57 AM

  • 08 0681_08 0646_422019_053203.mp4

Date
04/02/2019
W/O
0761292
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00561
PipeID
P24995
Time
4:57 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1165
Sewer Name
08 MAIN STREET P.P. INFLUENT SEWER
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Capital Improvement Program Assesment
Project
20190401MDM_MAIN_STREET_P_P_INFLUENT_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
30 in.
Upstream MH
08 0681
Downstream MH
08 0646
Dir. of Survey
Downstream
Length Surveyed
22.9 ft.
Total Length
22.9 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
4
O&M Quick
5121
O&M Rating
7
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 08 0681 to 08 0646
MH: 08 0681MH: 08 0646downstream0 ft. MWL - Water Level, 60 %of cross sectional area0 ft. MWM - Water Mark, 80 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:35AM2 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SLIGHT FLAKING13.3 ft. MGO - General Observation - 30" VCP22.2 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish - SLIGHT FLAKING22.2 ft. MGO - General Observation - METAL PIPEI N MH22.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: NO22.9 ft. AMH - Downstream Manhole, Survey Ends - 5:50AM

Observation photos (3)

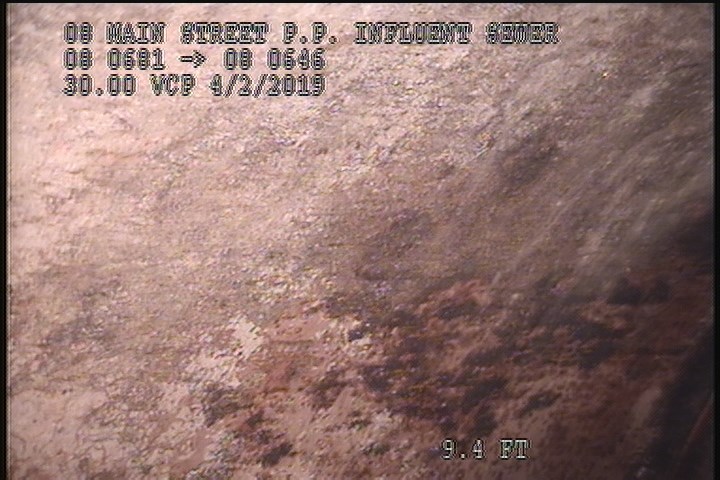

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SLIGHT FLAKING

    2 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SLIGHT FLAKING

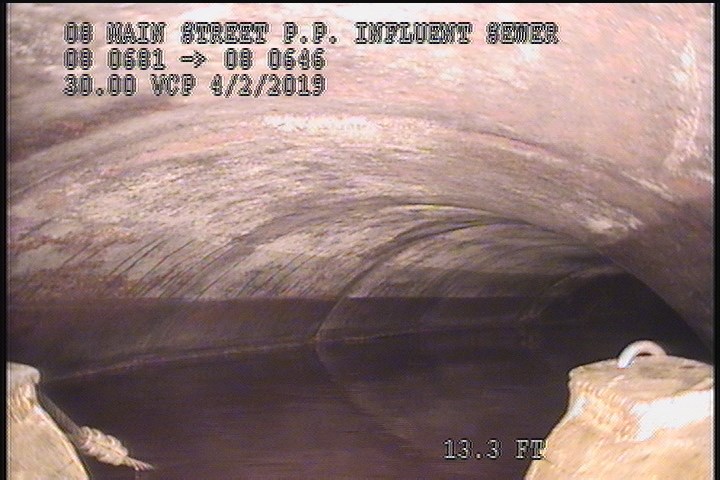

  • General Observation - 30" VCP

    13.3 ft. - General Observation - 30" VCP

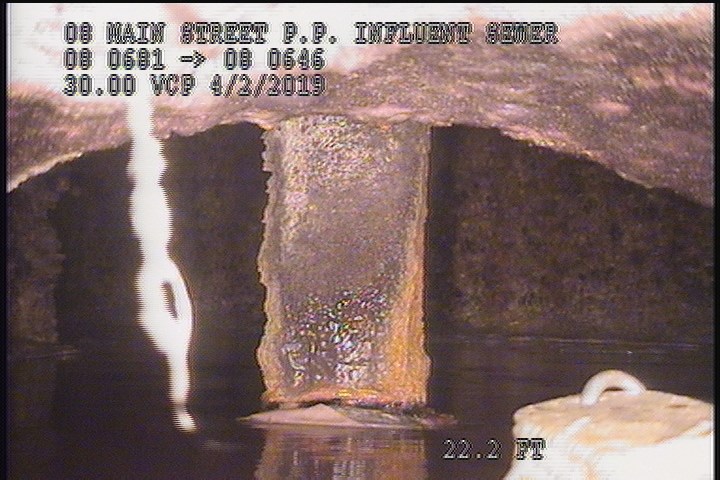

  • General Observation - METAL PIPEI N MH

    22.2 ft. - General Observation - METAL PIPEI N MH

All inspections of P24995Work order 0761292

Observations (9)

DistanceCodeObservation
22.2SSSSLIGHT FLAKING
2SSSSLIGHT FLAKING
22.9AMH5:50AM
22.2MGOMETAL PIPEI N MH
13.3MGO30" VCP
22.2DAGS—
0MWL—
0MWM—
0AMH5:35AM

Properties (6)

custom_field_three
SLIGHT FLAKING
custom_field_two
3
customer
LACSD
datetime
2019-04-02T04:57:35-07:00
documentation
MRTIN,OLIVER 111,RUVALCABA
is_lateral_inspection
false
