Wastewater/Activity/PacpInspection/1.0Apr 2, 2019, 11:57 AM
08 0682_08 0681_422019_051857.mp4
- Date
- 04/02/2019
- W/O
- 0761292
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00561
- PipeID
- P24996
- Time
- 4:57 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H1165
- Sewer Name
- 08 MAIN STREET P.P. INFLUENT SEWER
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190401MDM_MAIN_STREET_P_P_INFLUENT_SEWER
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 08 0682
- Downstream MH
- 08 0681
- Dir. of Survey
- Downstream
- Length Surveyed
- 29.9 ft.
- Total Length
- 29.9 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

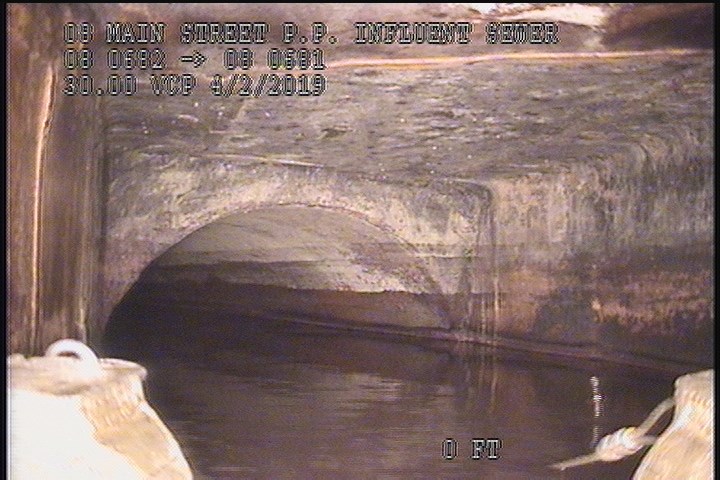

0 ft. - Water Mark, 80 %of cross sectional area

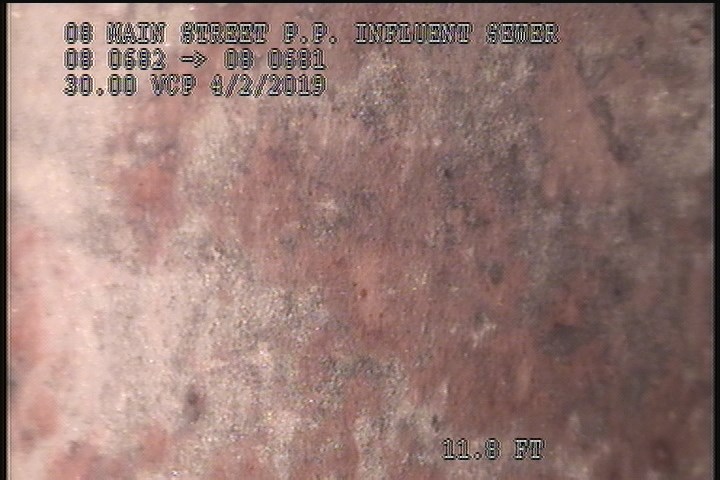

11.8 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SLIGHT FLAKING

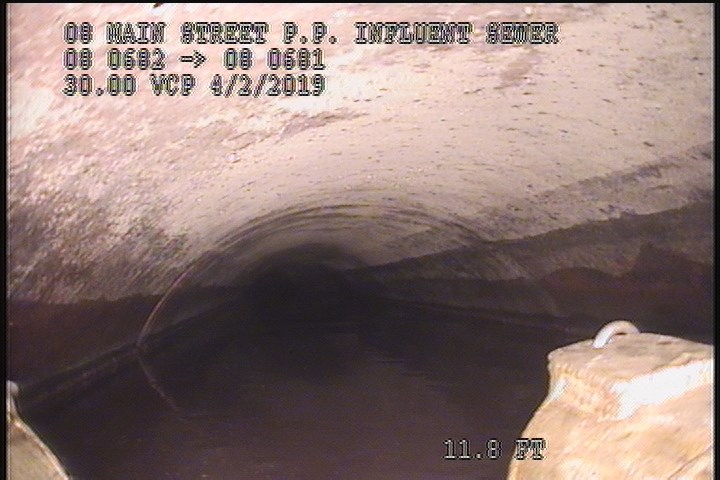

11.8 ft. - General Observation - 30" VCP
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 11.8 | SSS | SLIGHT FLAKING |
| 11.8 | MGO | 30" VCP |
| 29.9 | AMH | 5:30AM |
| 0 | MWM | — |
| 29.7 | SSS | SLIGHT FLAKING |
| 0 | AMH | 5:20AM |
| 0 | MWL | — |
Properties (6)
- custom_field_three
- SLIGHT FLAKING
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-04-02T04:57:05-07:00
- documentation
- MRTIN,,OLIVER 111,RUVALCABA
- is_lateral_inspection
- false
