Wastewater/Activity/PacpInspection/1.0Mar 29, 2019, 03:01 PM
A 1077_A JOINT_3292019_083715.mp4
- Date
- 03/29/2019
- W/O
- 0763421
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00335
- PipeID
- P09452
- Time
- 8:01 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7950
- Sewer Name
- A JOINT OUTFALL A - UNIT 4
- City
- LONG BEACH
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 09
- Purpose
- Maintenance Related
- Project
- 20190329DF_JOINT_OUTFALL_A_UNIT_4
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Upstream MH
- A JOINT
- Downstream MH
- A 1077
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.2 ft.
- Total Length
- 2.2 ft.
- Structural Index
- 4
- Structural Quick
- 5231
- Structural Rating
- 15
- O&M Index
- 5
- O&M Quick
- 5141
- O&M Rating
- 9
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 24
Observation photos (7)

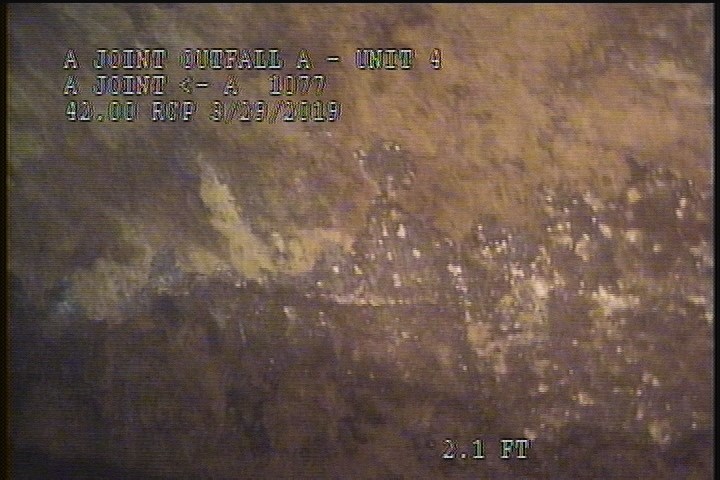

0.1 ft. - Water Mark, 100 %of cross sectional area

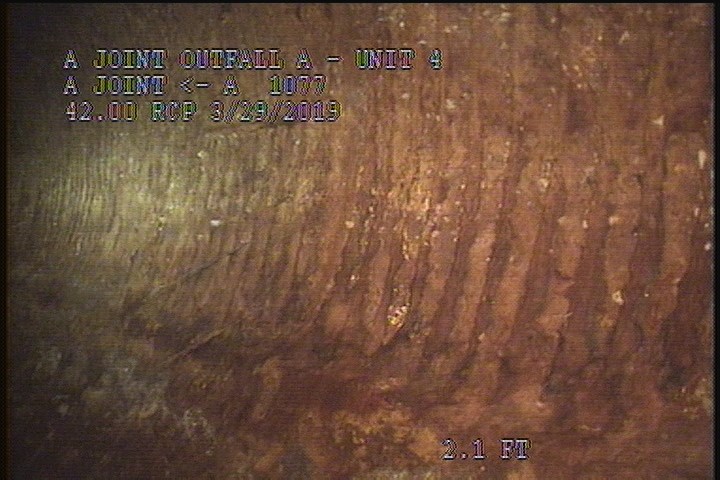

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

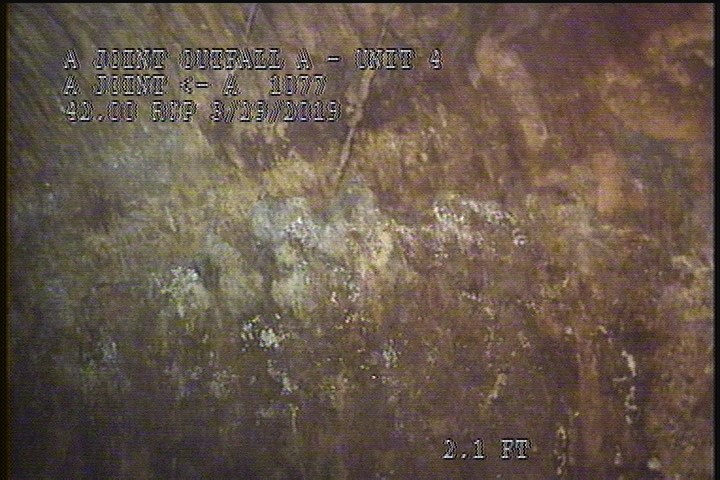

2 ft. - Alignment Up, 45 %

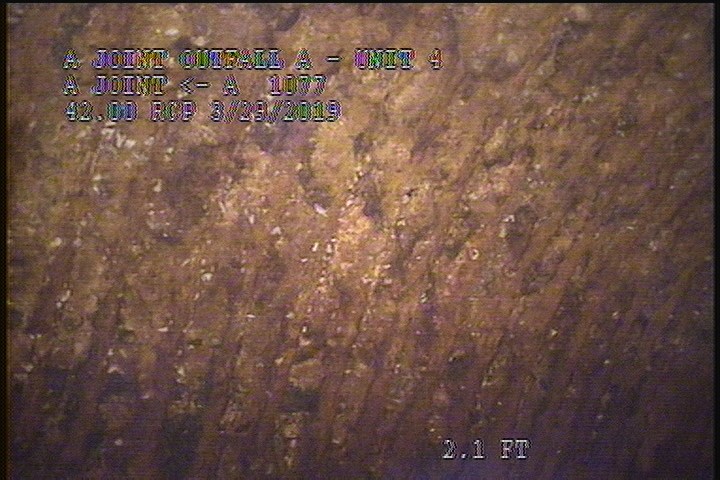

2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 30% MAG

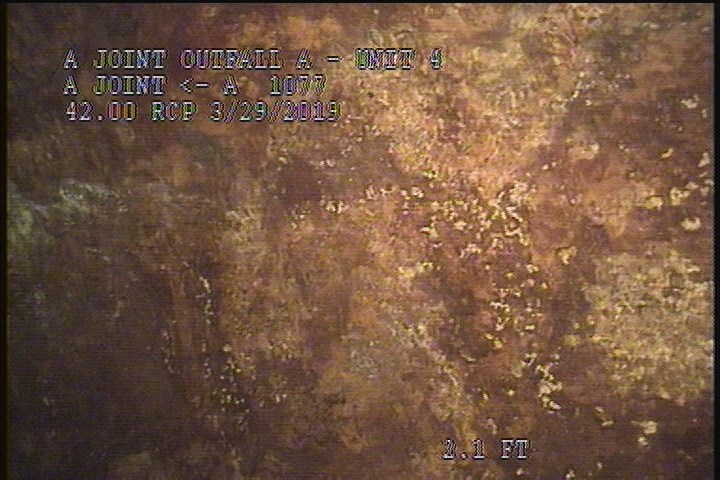

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

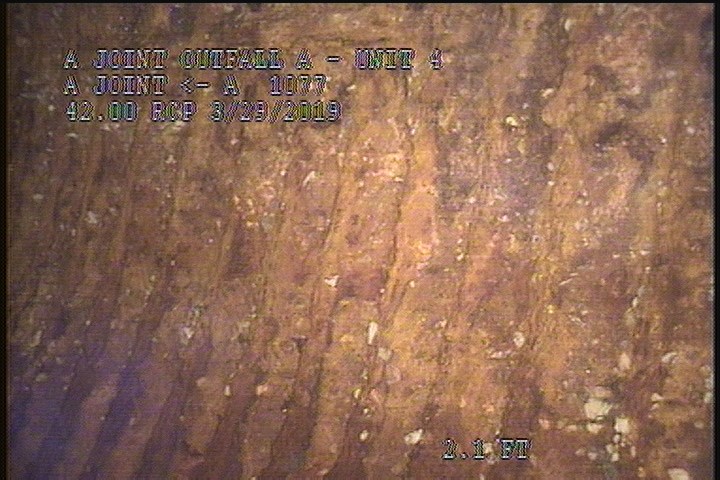

2.1 ft. - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES

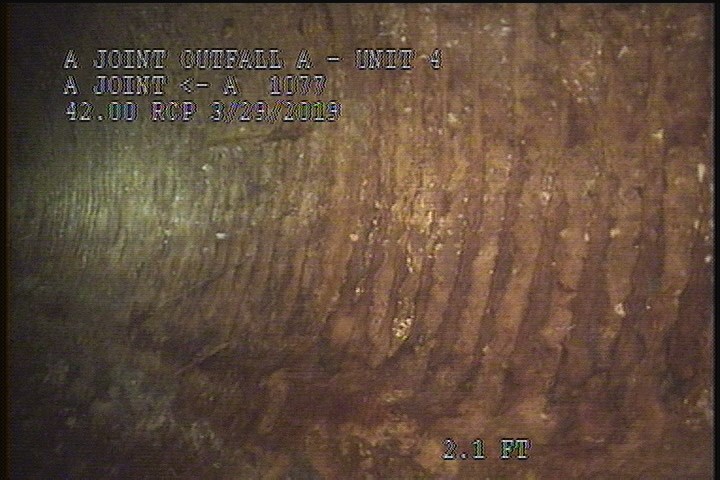

2.1 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | SRC | — |
| 2 | SAV | — |
| 2 | LU | — |
| 0.1 | MWL | — |
| 2.1 | SRV | — |
| 2 | SZ | 30% MAG |
| 2 | SSS | — |
| 0 | AMH | 8:07 AM |
| 2.2 | MSA | DEBRIS |
| 0.1 | MWM | — |
Properties (6)
- additional_info
- NORTH BARREL. VIEW OF UPLEG FROM D/S SIPHON
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-03-29T08:01:58-07:00
- documentation
- FRANKLIN, IGNACIO, RUVALCABA
- is_lateral_inspection
- false
