Wastewater/Activity/PacpInspection/1.0Mar 28, 2019, 06:15 PM
A 0433_A 0432_3282019_115432.mp4
- Date
- 03/28/2019
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00323
- PipeID
- P08155
- Time
- 11:15 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7949
- Sewer Name
- A JOA-1A LOS COYOTES WRP INTERCEPTOR
- City
- DOWNEY
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- 20190328DF_JOA_1A_LOS_COYOTES_WRP_INTERCEPTOR
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 63 in.
- Upstream MH
- A 0432
- Downstream MH
- A 0433
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.2 ft.
- Total Length
- 2.2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 5
- O&M Quick
- 5141
- O&M Rating
- 9
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (7)

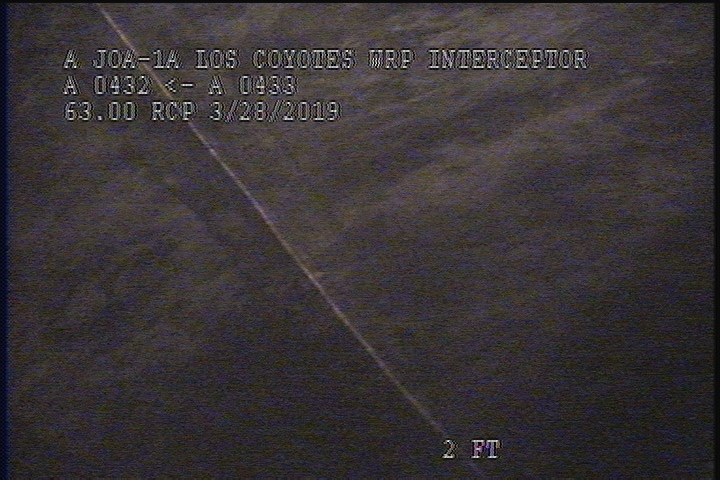

0 ft. - Water Mark, 100 %of cross sectional area

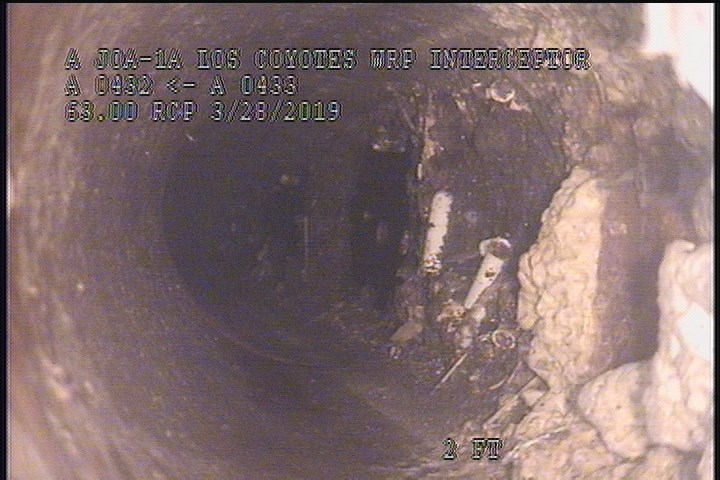

2 ft. - General Photograph

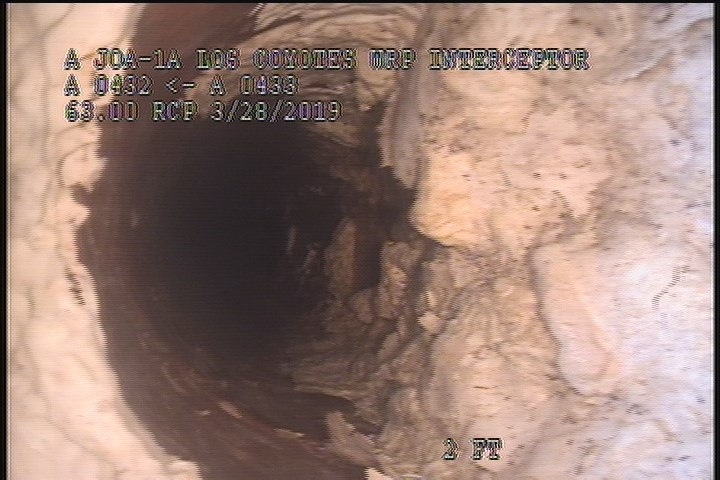

2 ft. - General Photograph - AIRLINE

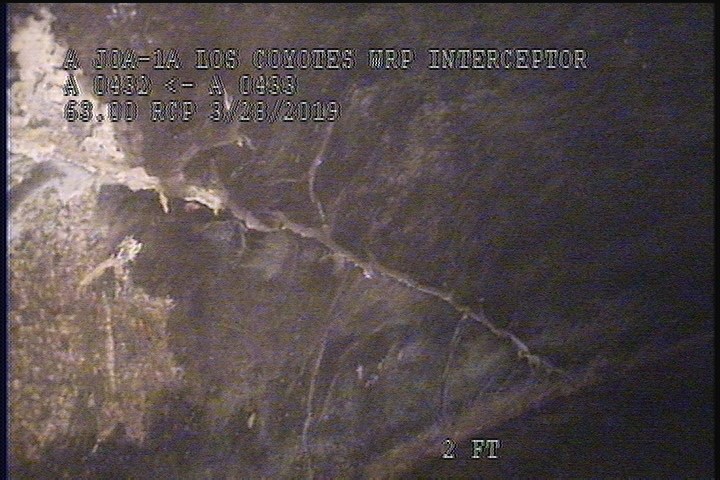

2 ft. - Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES

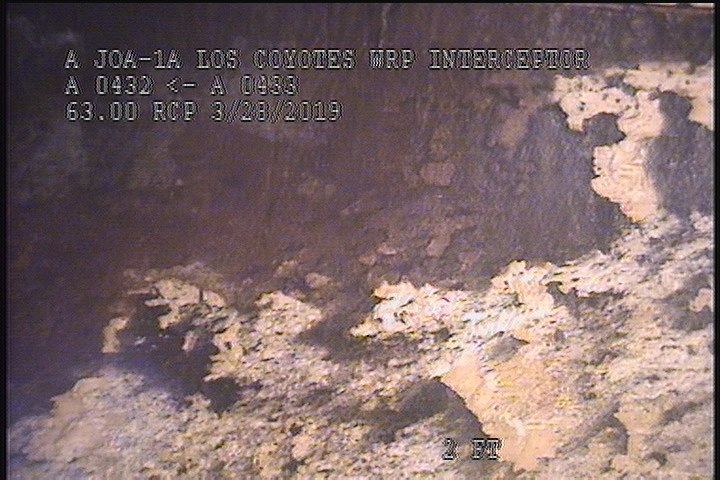

2 ft. - General Photograph

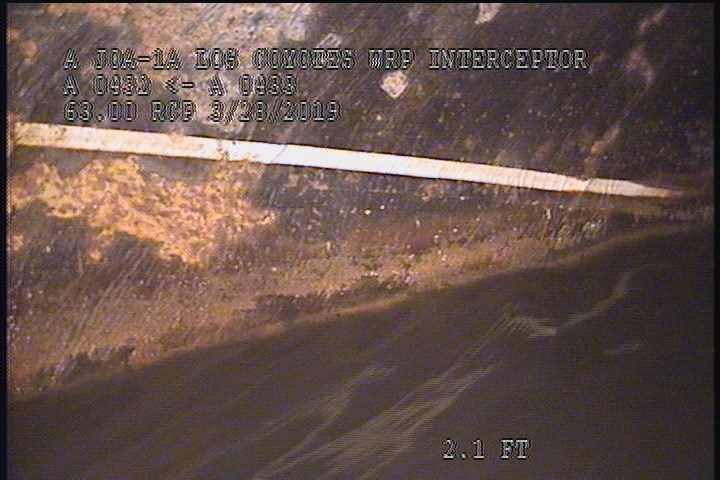

2.1 ft. - Alignment Up, 45 %

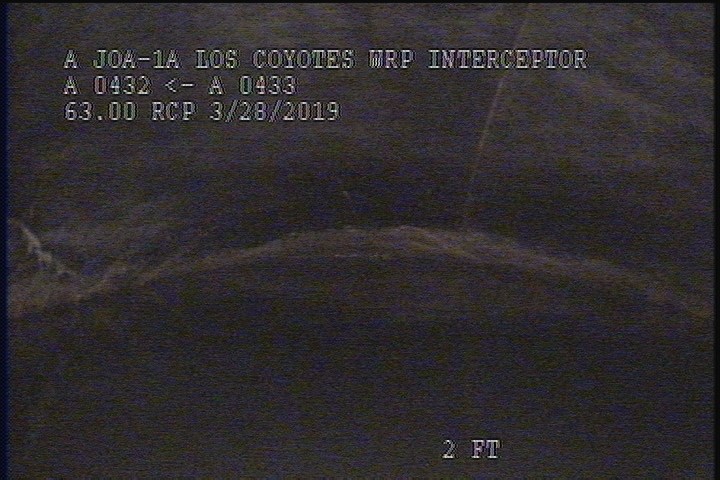

2.2 ft. - Survey Abandoned - HIGH WATER
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGP | — |
| 0 | AMH | 11:30 AM |
| 2 | MGP | AIRLINE |
| 2.1 | LU | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 2 | LFW | — |
| 2.2 | MSA | HIGH WATER |
| 2 | MGP | — |
Properties (6)
- additional_info
- VIEW OF UPLEG FROM D/S SIPHON
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-03-28T11:15:50-07:00
- documentation
- FRANKLIN, IGNACIO, RUVALCABA
- is_lateral_inspection
- false
