Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 28, 2019, 06:10 PM

  • A 0433_A 0432_3282019_112300.mp4

  • A 0433_A 0432_3282019_113530.mp4

Date
03/28/2019
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00323
PipeID
P08155
Time
11:10 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7949
Sewer Name
A JOA-1A LOS COYOTES WRP INTERCEPTOR
City
DOWNEY
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
26
Purpose
Routine Assessment
Project
20190328DF_JOA_1A_LOS_COYOTES_WRP_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
63 in.
Upstream MH
A 0433
Downstream MH
A 0432
Dir. of Survey
Downstream
Length Surveyed
13.3 ft.
Total Length
13.3 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
5
O&M Quick
5141
O&M Rating
9
Overall Index
4
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole A 0433 to A 0432
MH: A 0433MH: A 0432downstream0 ft. MWL - Water Level, 100 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 11:17 AM0 ft. MWM - Water Mark, 100 %of cross sectional area2 ft. MGP - General Photograph2 ft. MGP - General Photograph - AIRLINE2 ft. LD - Alignment Down, 45 %10.4 ft. LFW - Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES13 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)13.3 ft. MSA - Survey Abandoned - HIGH WATER

Observation photos (7)

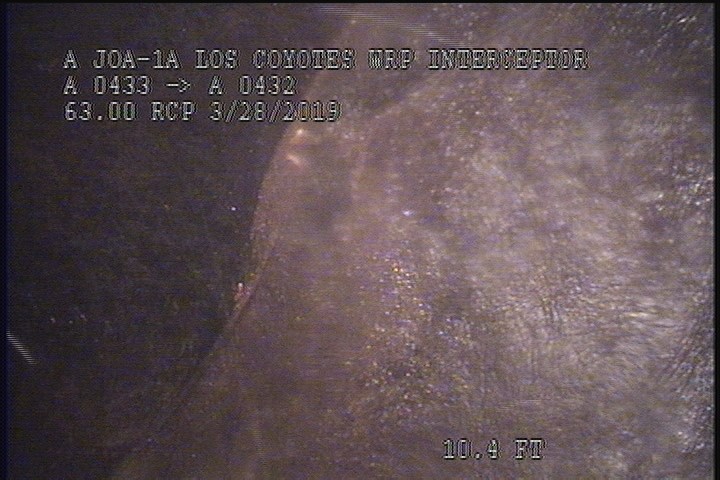

  • Water Level, 100 %of cross sectional area

    0 ft. - Water Level, 100 %of cross sectional area

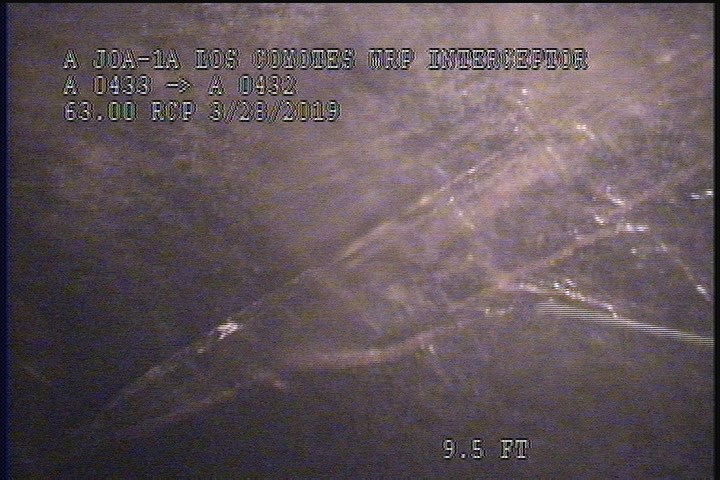

  • Water Mark, 100 %of cross sectional area

    0 ft. - Water Mark, 100 %of cross sectional area

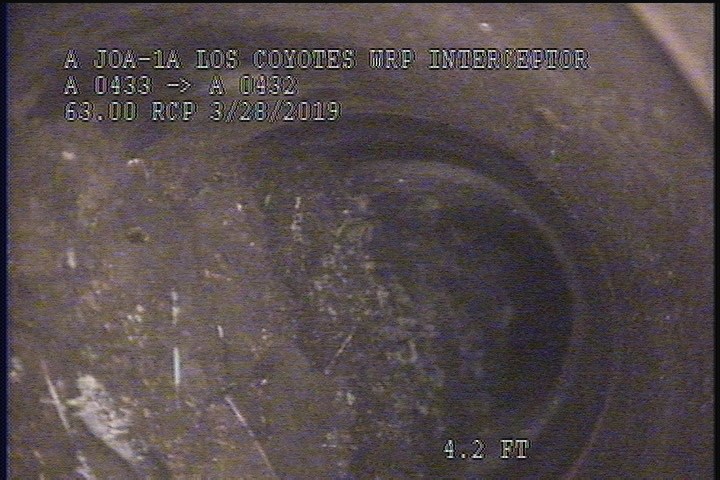

  • General Photograph

    2 ft. - General Photograph

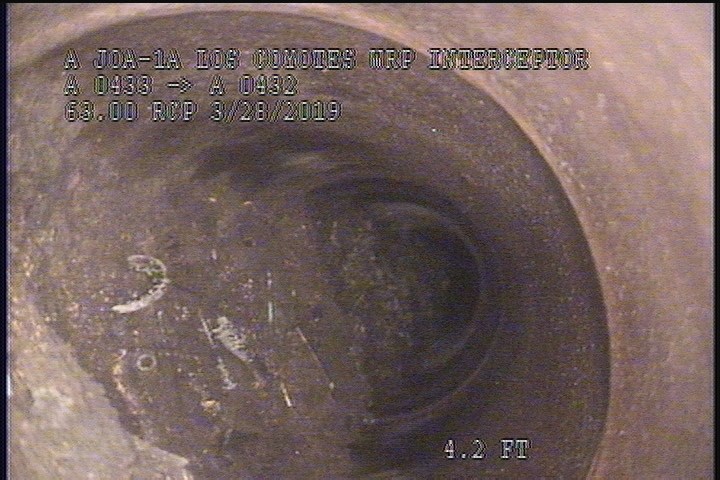

  • General Photograph - AIRLINE

    2 ft. - General Photograph - AIRLINE

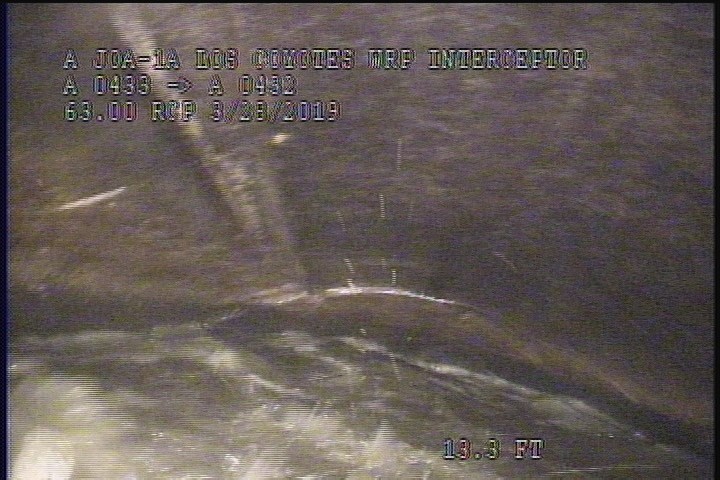

  • Alignment Down, 45 %

    2 ft. - Alignment Down, 45 %

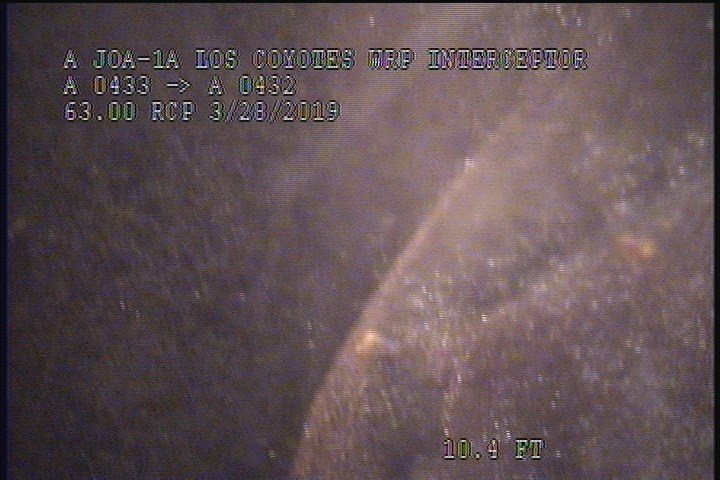

  • Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES

    10.4 ft. - Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES

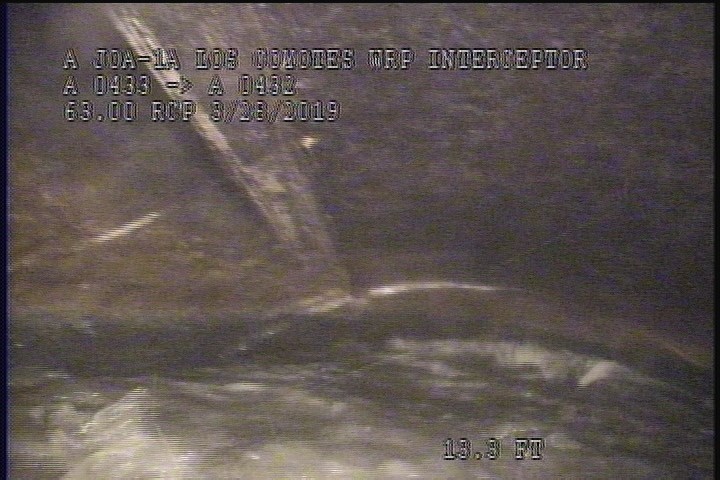

  • Survey Abandoned - HIGH WATER

    13.3 ft. - Survey Abandoned - HIGH WATER

All inspections of P08155Work order PENDING

Observations (9)

DistanceCodeObservation
2MGP—
13.3MSAHIGH WATER
0MWL—
13MGOGREASE THROUGHOUT THE REACH (5%)
0AMH11:17 AM
2MGPAIRLINE
10.4LFW—
0MWM—
2LD—

Properties (6)

additional_info
VIEW OF DOWNLEG FROM U/S SIPHON
custom_field_two
5
customer
LACSD
datetime
2019-03-28T11:10:57-07:00
documentation
FRANKLIN, IGNACIO, RUVALCABA
is_lateral_inspection
false
