Wastewater/Activity/PacpInspection/1.0Mar 28, 2019, 04:03 PM
A 0934_A 0212_3282019_103105.mp4
- Date
- 03/28/2019
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00323
- PipeID
- P08149
- Time
- 9:03 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7949
- Sewer Name
- A JOA-1A LOS COYOTES WRP INTERCEPTOR
- City
- SOUTH GATE
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- 20190328DF_JOA_1A_LOS_COYOTES_WRP_INTERCEPTOR
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 72.19999694824219 in.
- Upstream MH
- A 0212
- Downstream MH
- A 0934
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.4 ft.
- Total Length
- 2.4 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 5
- O&M Quick
- 5141
- O&M Rating
- 9
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (5)

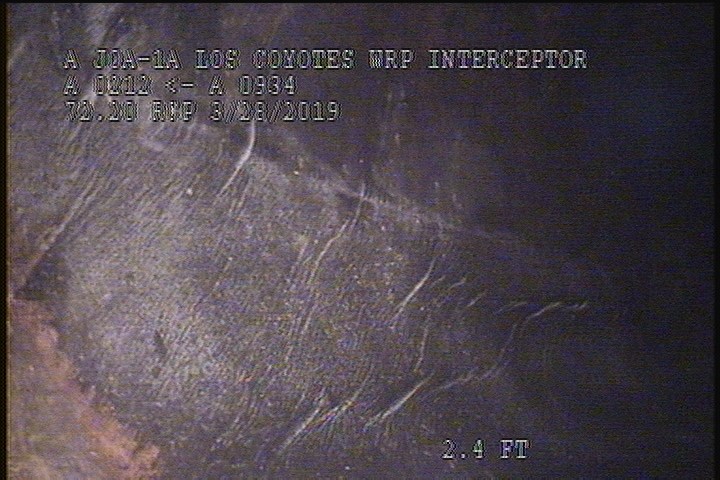

0 ft. - Downstream Manhole, Survey Begins - 10:00 AM

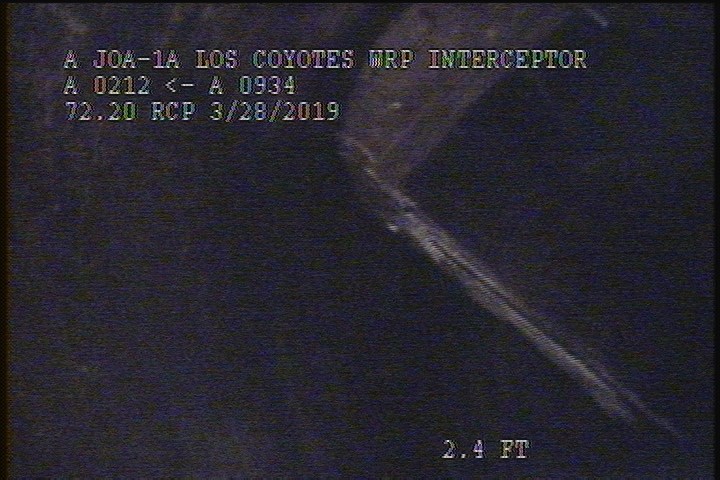

0 ft. - Water Level, 100 %of cross sectional area

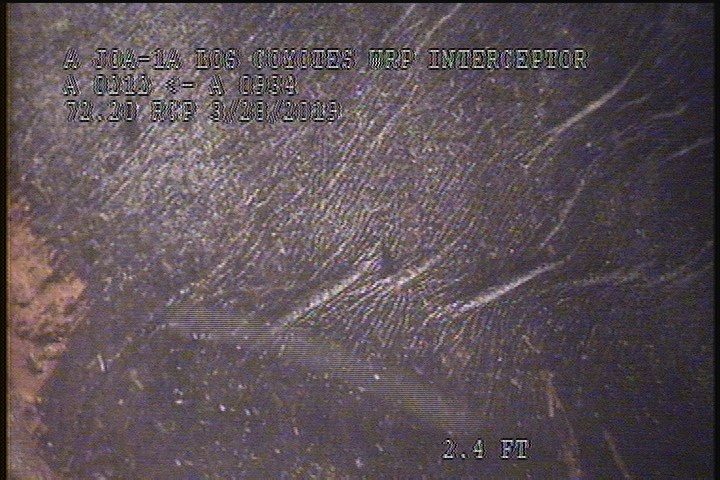

0 ft. - Lining Failure Blistered, from 08 to 04 o'clock, within 8 inches of joint: YES

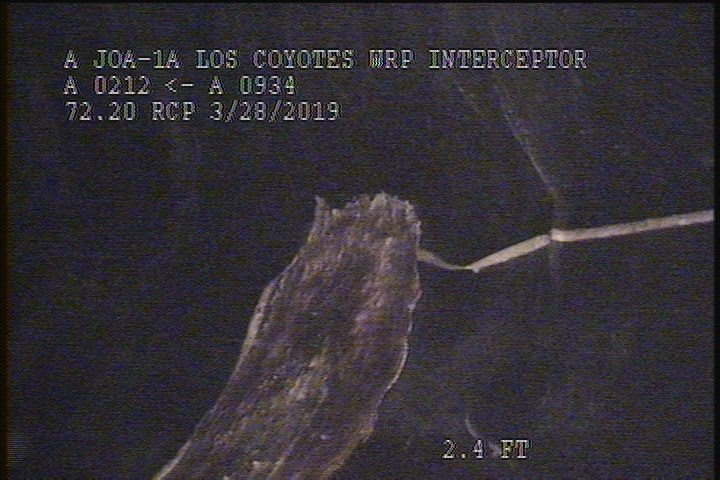

0 ft. - Water Mark, 100 %of cross sectional area

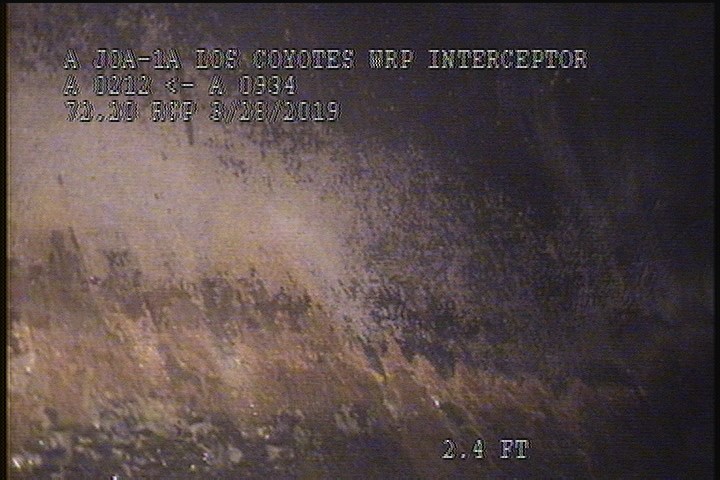

2 ft. - Alignment Up, 45 %
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 10:00 AM |
| 0 | MWL | — |
| 2 | LU | — |
| 0 | LFB | — |
| 0 | MWM | — |
| 2.4 | MSA | HIGH WATER |
Properties (6)
- additional_info
- VIEW OF THE UPLEG FROM THE D/S SIPHON
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-03-28T09:03:48-07:00
- documentation
- FRANKLIN, IGNACIO, RUVALCABA
- is_lateral_inspection
- false
