Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 26, 2019, 11:42 AM

  • A 1035_A 1034_3262019_050647.mp4

Date
03/26/2019
W/O
0762538
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00918
PipeID
P20810
Time
4:42 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1160
Sewer Name
A JOA-1A DISTRICT 5 INTERCEPTOR RELIEF
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
20
Purpose
Routine Assessment
Project
20190326MDM_JOA_1A_DISTRICT_5_INTERCEPTOR_RELIEF
Material
RCP-PTL
Shape
Circular
Height
54 in.
Upstream MH
A 1035
Downstream MH
A 1034
Dir. of Survey
Downstream
Length Surveyed
682.8 ft.
Total Length
682.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole A 1035 to A 1034
MH: A 1035MH: A 1034downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:45AM0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area8 ft. MGO - General Observation - 54" RCP-PTL410.1 ft. MGO - General Observation - 54" RCP-PTL414.2 ft. MGO - General Observation - PTL LINER682.8 ft. AMH - Downstream Manhole, Survey Ends - 5:15AM

Observation photos (3)

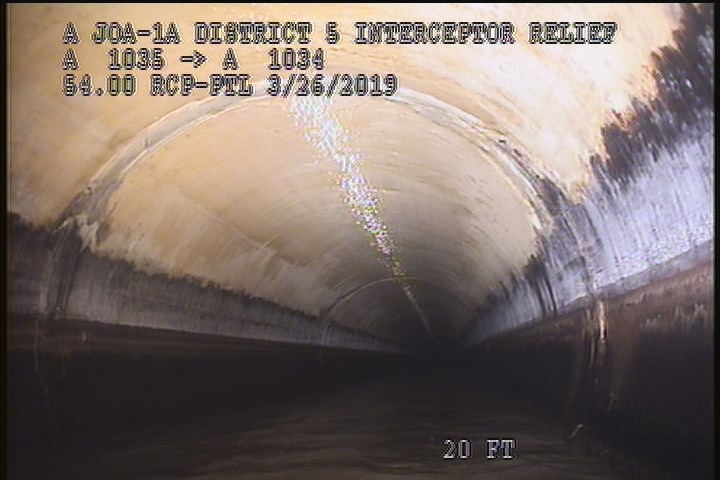

  • General Observation - 54" RCP-PTL

    8 ft. - General Observation - 54" RCP-PTL

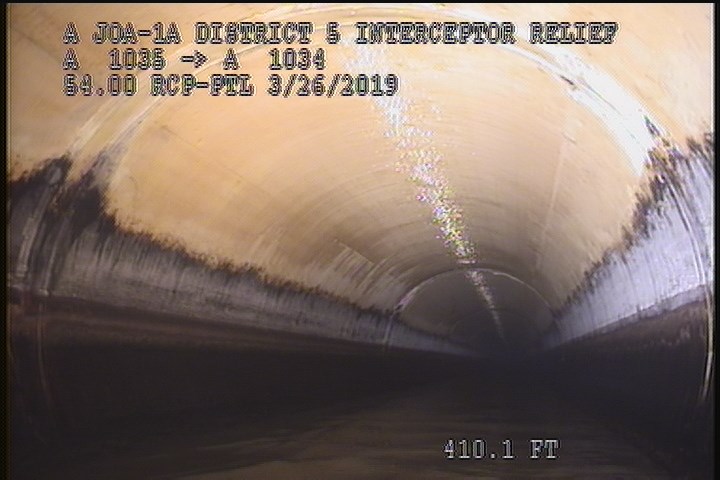

  • General Observation - 54" RCP-PTL

    410.1 ft. - General Observation - 54" RCP-PTL

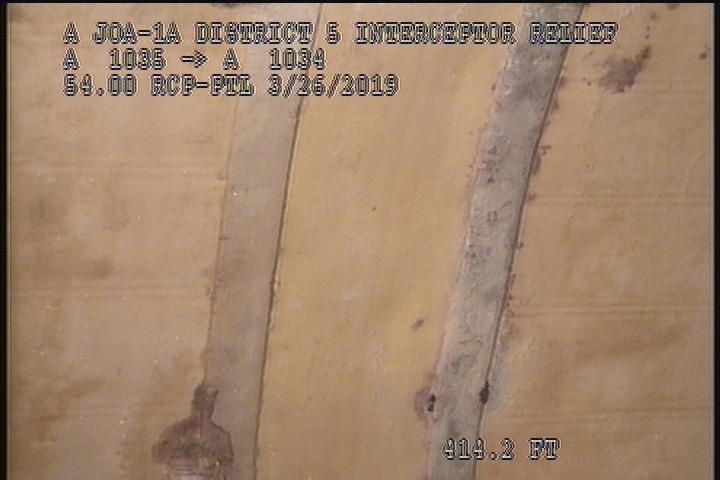

  • General Observation - PTL LINER

    414.2 ft. - General Observation - PTL LINER

All inspections of P20810Work order 0762538

Observations (7)

DistanceCodeObservation
0AMH4:45AM
0MWL—
682.8AMH5:15AM
410.1MGO54" RCP-PTL
8MGO54" RCP-PTL
0MWM—
414.2MGOPTL LINER

Properties (6)

custom_field_three
LINER GOOD COND
custom_field_two
4
customer
LACSD
datetime
2019-03-26T04:42:20-07:00
documentation
MARTIN,REVELES,OLIVER 111,CASTILLO
is_lateral_inspection
false
