Wastewater/Activity/PacpInspection/1.0Mar 19, 2019, 04:46 PM
30 0125_30 0343_3192019_100330.mp4
- Date
- 03/19/2019
- W/O
- 0760336
- Weather
- Dry
- Operator/Surveyor
- SHADLER
- Sewer ID
- Z00878
- PipeID
- P17830
- Time
- 9:46 AM
- Certificate
- U-415-06024035
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7943
- Sewer Name
- 30 SOUTH BAY CITIES MAIN TRUNK
- City
- REDONDO BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 07
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190319KS_SOUTH_BAY_CITIES_MAIN_TRUNK
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 30 0125
- Downstream MH
- 30 0343
- Dir. of Survey
- Downstream
- Length Surveyed
- 146.2 ft.
- Total Length
- 146.2 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (5)

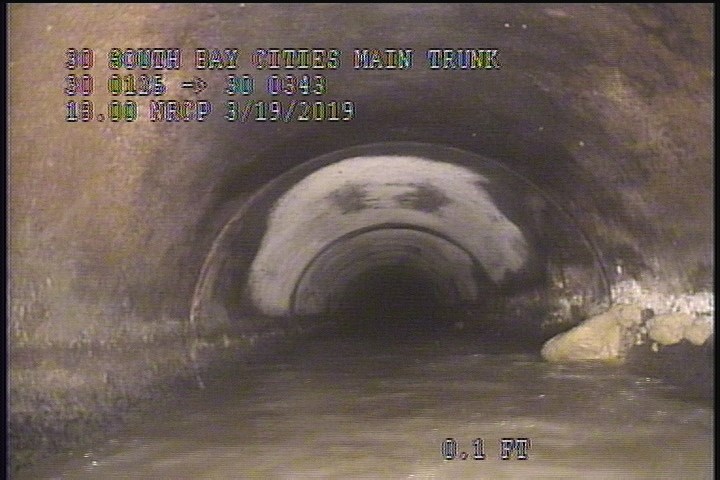

0.1 ft. - Water Level, 65 %of cross sectional area

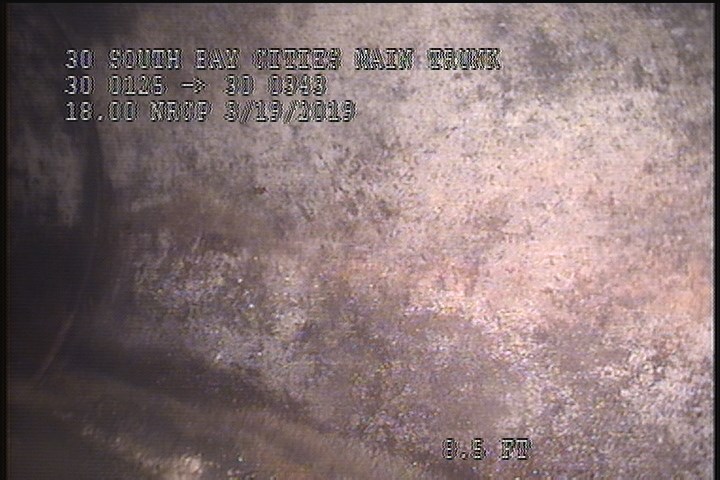

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

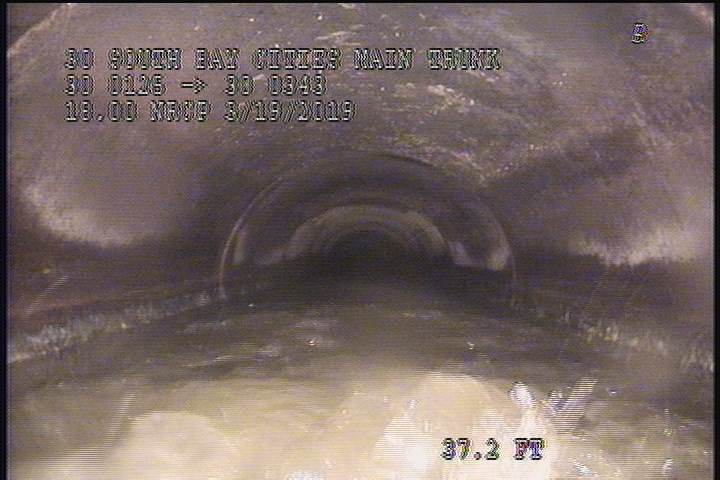

37.2 ft. - General Photograph

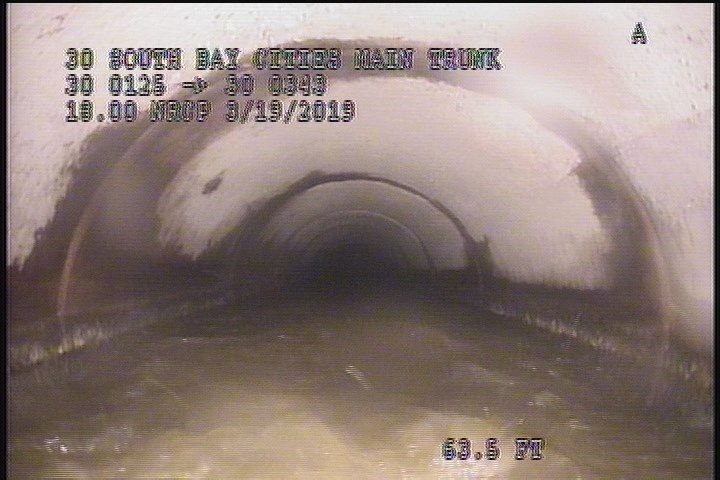

63.5 ft. - General Photograph

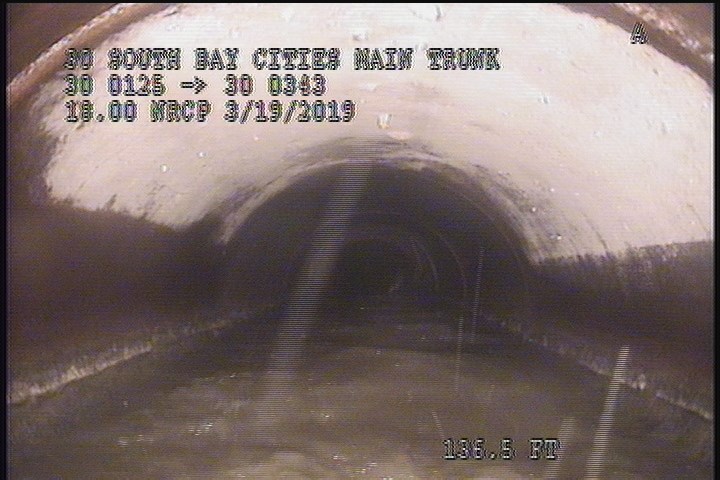

136.5 ft. - General Photograph
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 136.5 | MGP | — |
| 0 | AMH | 9:47 A.M. |
| 2 | MGO | Conn. @ Mh, 3 O' Clock. Active |
| 146.2 | AMH | 10:39 A.M. |
| 144.2 | SSS | — |
| 63.5 | MGP | — |
| 37.2 | MGP | — |
| 146.2 | MGO | GREASE THROUGHOUT THE REACH (5%) |
| 0.1 | MWM | — |
| 0.1 | MWL | — |
| 2 | SSS | — |
| 6.1 | DAGS | — |
Properties (7)
- additional_info
- ONSCREEN DISPLAY SAYS NRCP MATERIAL. ACTUAL MATERIAL IS VCP
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-03-19T09:46:00-07:00
- documentation
- SHADLER, FRANKLIN, IGNACIO
- is_lateral_inspection
- false
- year_laid
- 19781025
