Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 21, 2019, 06:17 PM

  • 30 0116_30 0117_3212019_112008.mp4

Date
03/21/2019
W/O
0760336
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00878
PipeID
P17820
Time
11:17 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7945
Sewer Name
30 SOUTH BAY CITIES MAIN TRUNK
City
REDONDO BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
06
Purpose
Capital Improvement Program Assesment
Project
20190315DF_SOUTH_BAY_CITIES_MAIN_TRUNK
Material
NRCP
Shape
Circular
Height
18 in.
Upstream MH
30 0117
Downstream MH
30 0116
Dir. of Survey
Upstream
Length Surveyed
448 ft.
Total Length
448 ft.
Structural Index
2
Structural Quick
3122
Structural Rating
7
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 30 0117 to 30 0116
MH: 30 0117MH: 30 0116upstream0 ft. MGO - General Observation - Grease Throughout The Reach (5%)0 ft. MGO - General Observation - ROACHES @ MH0 ft. AMH - Upstream Manhole, Survey Ends - 11:43 AM2.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish2.1 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 85% MAG2.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish130.1 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES403 ft. MGP - General Photograph446 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG446 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start446 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start448 ft. AMH - Downstream Manhole, Survey Begins - 11:18 AM448 ft. MWM - Water Mark, 25 %of cross sectional area448 ft. MWL - Water Level, 20 %of cross sectional area448 ft. MGO - General Observation - ROACHES @ MH

Observation photos (5)

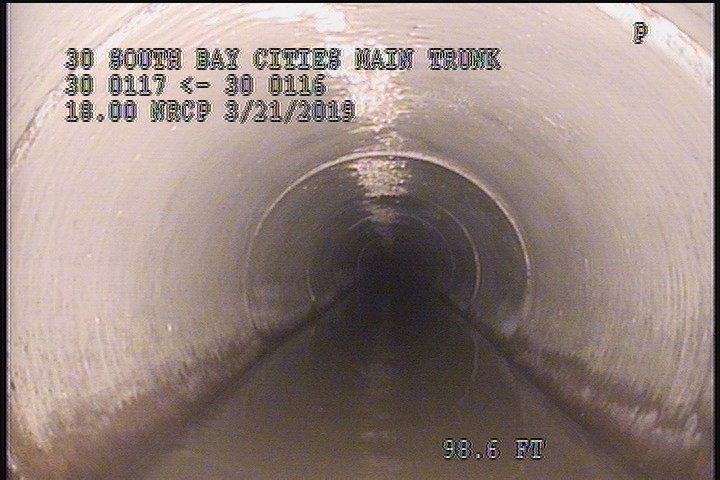

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG

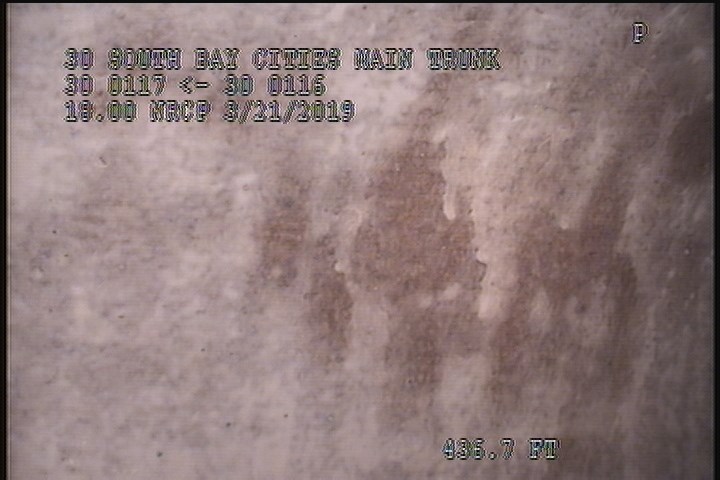

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

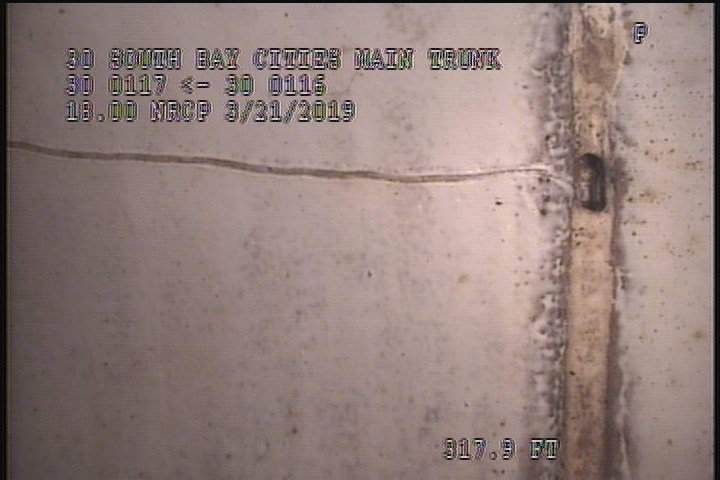

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

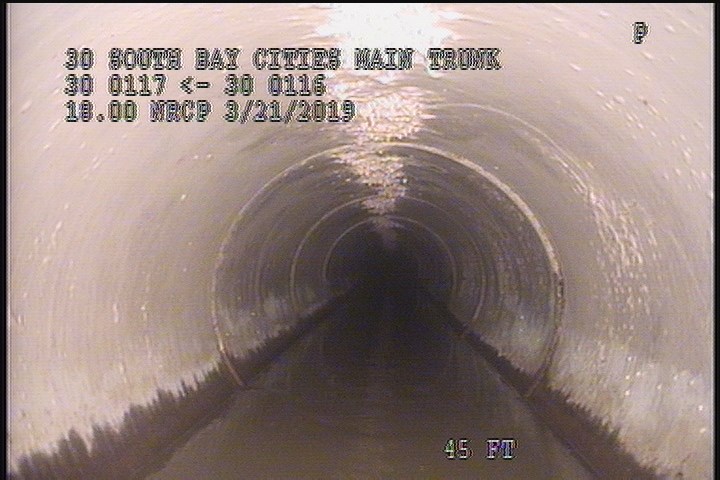

  • General Photograph

    45 ft. - General Photograph

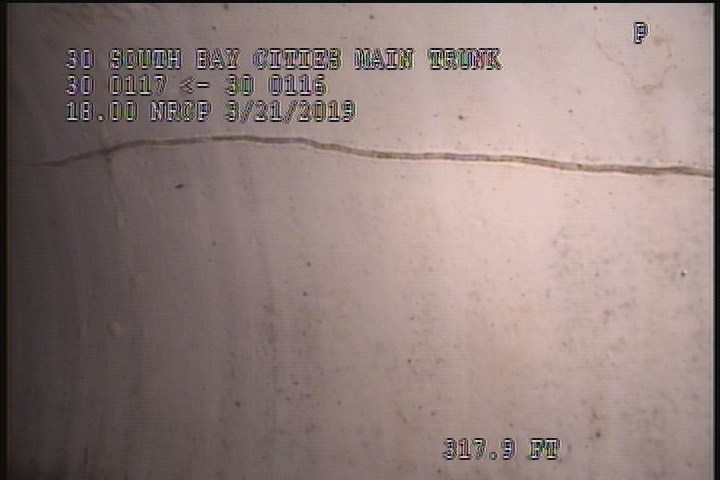

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    317.9 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

All inspections of P17820Work order 0760336

Observations (15)

DistanceCodeObservation
45MGP—
0AMH11:18 AM
2SZ85% MAG
448MGOGrease Throughout The Reach (5%)
445.9CM—
445.9SZ85% MAG
0MWM—
2SSS—
0MWL—
317.9CL—
448MGOROACHES @ MH
445.9SSS—
2CM—
448AMH11:43 AM
0MGOROACHES @ MH

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2019-03-21T11:17:41-07:00
documentation
FRANKLIN, IGNACIO, RUVALCABA
is_lateral_inspection
false
