Wastewater/Activity/PacpInspection/1.0Mar 20, 2019, 04:26 PM
30 0119_30 0118_3202019_102754.mp4
- Date
- 03/20/2019
- W/O
- 0760336
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00878
- PipeID
- P17822
- Time
- 9:26 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7944
- Sewer Name
- 30 SOUTH BAY CITIES MAIN TRUNK
- City
- REDONDO BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 06
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190315DF_SOUTH_BAY_CITIES_MAIN_TRUNK
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 30 0119
- Downstream MH
- 30 0118
- Dir. of Survey
- Downstream
- Length Surveyed
- 450 ft.
- Total Length
- 450 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (7)

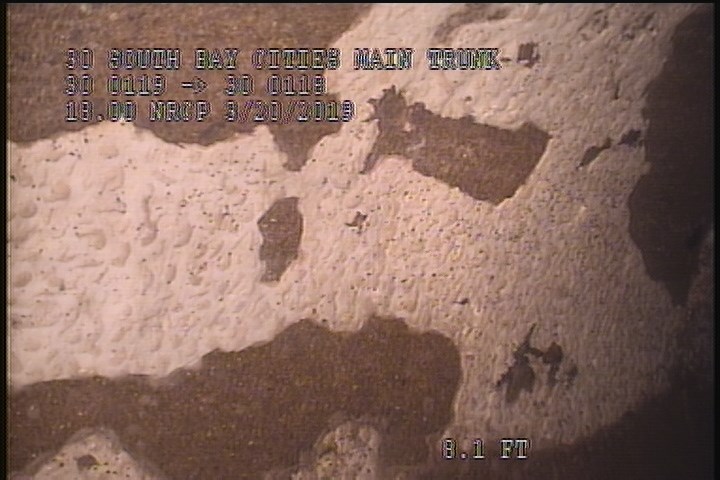

0 ft. - Water Mark, 20 %of cross sectional area

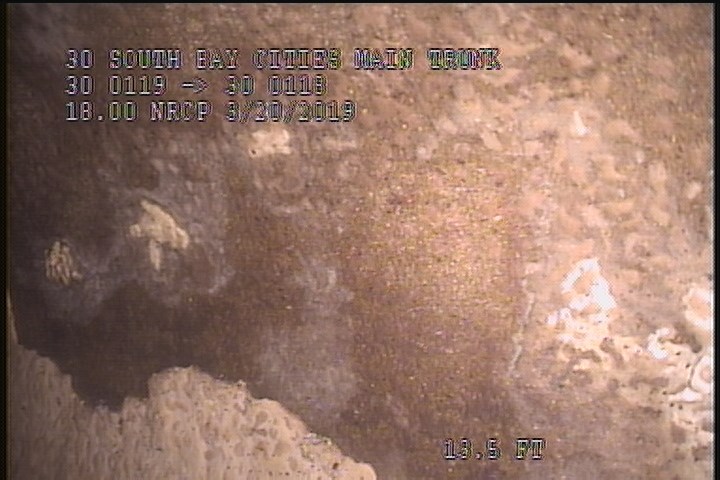

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

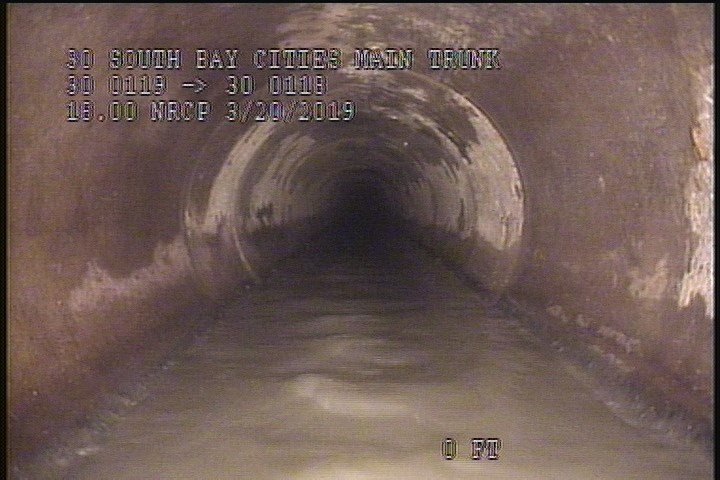

2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG

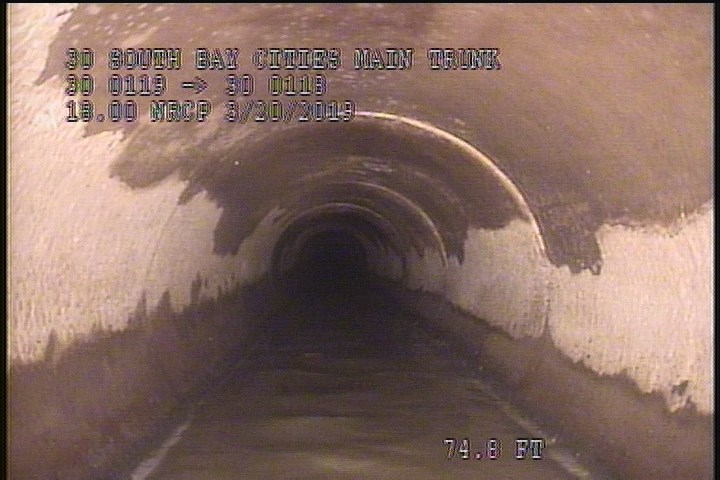

74.9 ft. - General Photograph

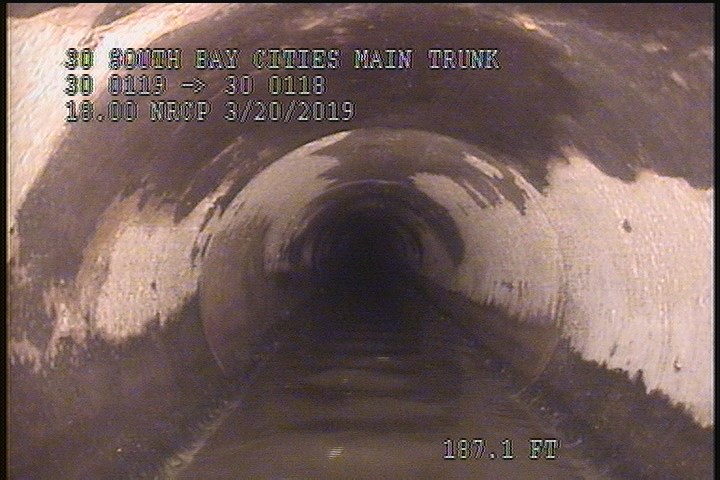

187.1 ft. - General Photograph

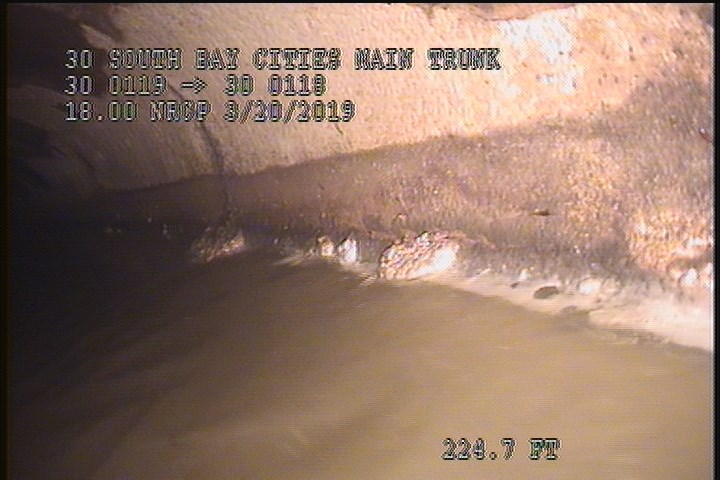

224.7 ft. - General Photograph - GREASE

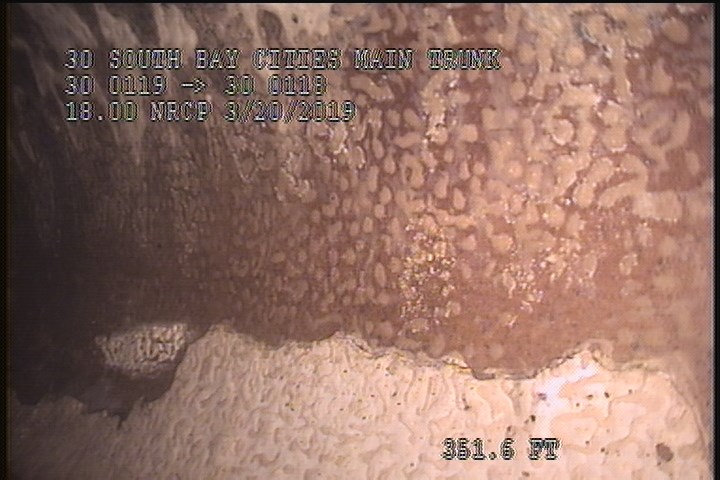

351.6 ft. - General Photograph
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 450 | AMH | 10:48 AM |
| 450 | MGO | ROACHES @ MH |
| 0 | AMH | 10:30 AM |
| 187.1 | MGP | — |
| 351.6 | MGP | — |
| 224.7 | MGP | GREASE |
| 2 | SSS | — |
| 447.7 | SSS | — |
| 447.7 | SZ | 65% MAG |
| 450 | MGO | GREASE THROUGHOUT THE REACH (5%) |
| 0 | MWL | — |
| 74.9 | MGP | — |
| 2 | SZ | 65% MAG |
| 0 | MWM | — |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-03-20T09:26:19-07:00
- documentation
- FRANKLIN, IGNACIO
- is_lateral_inspection
- false
