Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 15, 2019, 05:41 PM

  • 30 0123_30 0122_3152019_105015.mp4

Date
03/15/2019
W/O
0760336
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00878
PipeID
P17827
Time
10:41 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7942
Sewer Name
30 SOUTH BAY CITIES MAIN TRUNK
City
REDONDO BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
06
Purpose
Capital Improvement Program Assesment
Project
20190315DF_SOUTH_BAY_CITIES_MAIN_TRUNK
Material
NRCP
Shape
Circular
Height
18 in.
Upstream MH
30 0122
Downstream MH
30 0123
Dir. of Survey
Upstream
Length Surveyed
412.1 ft.
Total Length
412.1 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 30 0122 to 30 0123
MH: 30 0122MH: 30 0123upstream0 ft. AMH - Upstream Manhole, Survey Ends - 11:12 AM0 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)0.7 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 90% MAG2.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES2.6 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach179.2 ft. MGP - General Photograph308.8 ft. MGP - General Photograph362.4 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"364 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 08 o'clock, , within 8 inches of joint: YES410.1 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 90% MAG412.1 ft. MWL - Water Level, 20 %of cross sectional area412.1 ft. MWM - Water Mark, 25 %of cross sectional area412.1 ft. AMH - Downstream Manhole, Survey Begins - 10:43 AM

Observation photos (6)

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 90% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 90% MAG

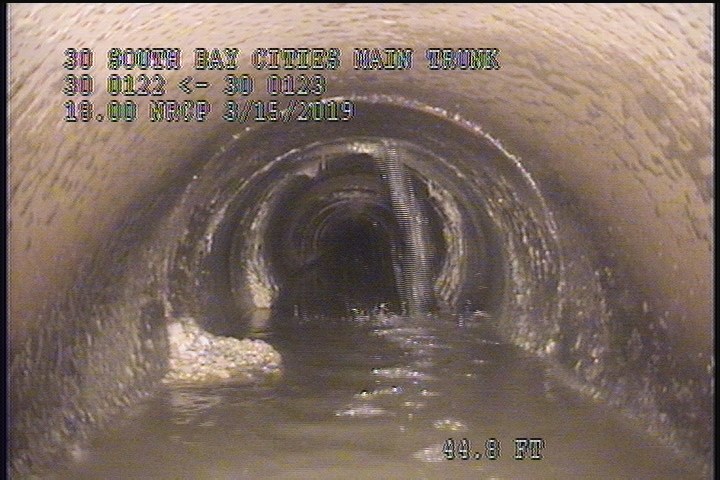

  • Deposits Attached Grease, 5 %of cross sectional area, from 07 to 08 o'clock, , within 8 inches of joint: YES

    48.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 08 o'clock, , within 8 inches of joint: YES

  • General Photograph

    103.3 ft. - General Photograph

  • General Photograph

    232.9 ft. - General Photograph

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

    409.5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

  • General Observation - Peeling & Flaking Throughout The Reach

    409.5 ft. - General Observation - Peeling & Flaking Throughout The Reach

All inspections of P17827Work order 0760336

Observations (13)

DistanceCodeObservation
48.1DAGS—
103.3MGP—
411.4SZ90% MAG
0MWL—
412.1AMH11:12 AM
409.5SSS—
409.5MGOPeeling & Flaking Throughout The Reach
232.9MGP—
2SZ90% MAG
0MWM—
49.7TFA—
412.1MGOGREASE THROUGHOUT THE REACH (5%)
0AMH10:43 AM

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2019-03-15T10:41:27-07:00
documentation
FRANKLIN, IGNACIO, RUVALCABA
is_lateral_inspection
false
