Wastewater/Activity/PacpInspection/1.0Mar 7, 2019, 09:19 AM
14 0466_14 0465 _03072019_023503.mp4
- Date
- 03/07/2019
- W/O
- 750756
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00580
- PipeID
- P18555
- Time
- 1:19 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6419
- Sewer Name
- 14 TRUNK "D"
- City
- LANCASTER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- RFIR_WO_750756_TV14023_FEB2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 14 0466
- Downstream MH
- 14 0465
- Dir. of Survey
- Downstream
- Length Surveyed
- 75.2 ft.
- Total Length
- 75.2 ft.
- Structural Index
- 3
- Structural Quick
- 3B2B
- Structural Rating
- 75
- O&M Index
- 3
- O&M Quick
- 513B
- O&M Rating
- 74
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 149
Observation photos (2)

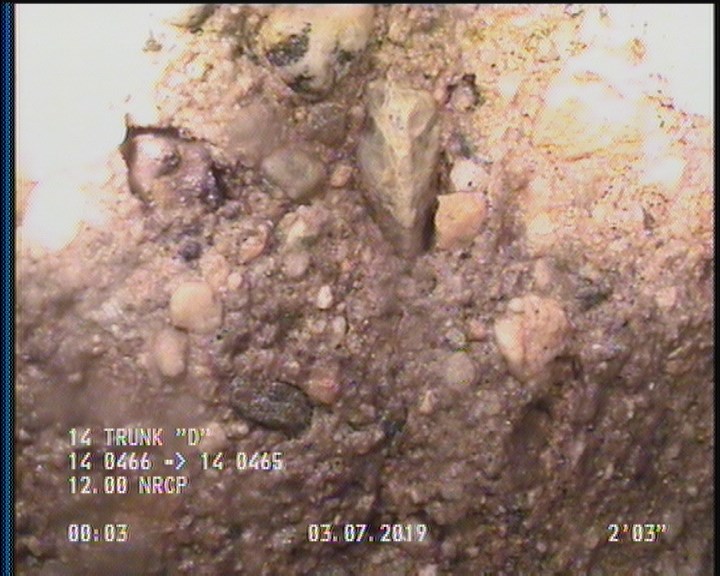

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

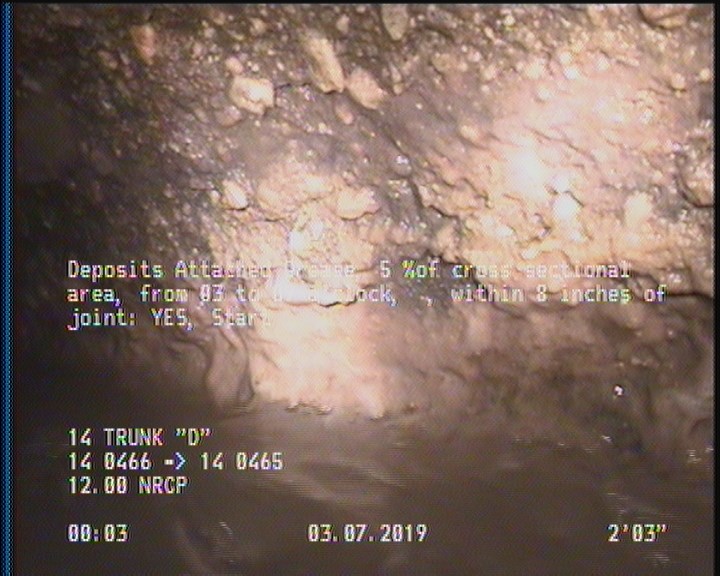

2.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 14 0466 |
| 2.2 | DAGS | — |
| 2 | SSS | — |
| 75.2 | SAP | — |
| 35.5 | TFC | — |
| 0 | MWL | — |
| 8.7 | DSZ | DEBRIS |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 75.2 | SSS | — |
| 2 | SAP | — |
| 75.2 | DSZ | — |
| 75.2 | DAGS | — |
| 0 | MWM | — |
| 75.2 | MSA | DUE TO DEBRIS |
Properties (6)
- additional_info
- SC365935
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-03-07T01:19:54-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
