Wastewater/Activity/PacpInspection/1.0Mar 7, 2019, 07:33 AM
14 0468_14 0467 _03072019_004744.mp4
- Date
- 03/06/2019
- W/O
- 750756
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00580
- PipeID
- P18557
- Time
- 11:33 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6419
- Sewer Name
- 14 TRUNK "D"
- City
- LANCASTER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- RFIR_WO_750756_TV14023_FEB2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 14 0468
- Downstream MH
- 14 0467
- Dir. of Survey
- Downstream
- Length Surveyed
- 339.8 ft.
- Total Length
- 339.8 ft.
- Structural Index
- 3
- Structural Quick
- 3L2L
- Structural Rating
- 335
- O&M Index
- 2
- O&M Quick
- 412L
- O&M Rating
- 138
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 473
Observation photos (3)

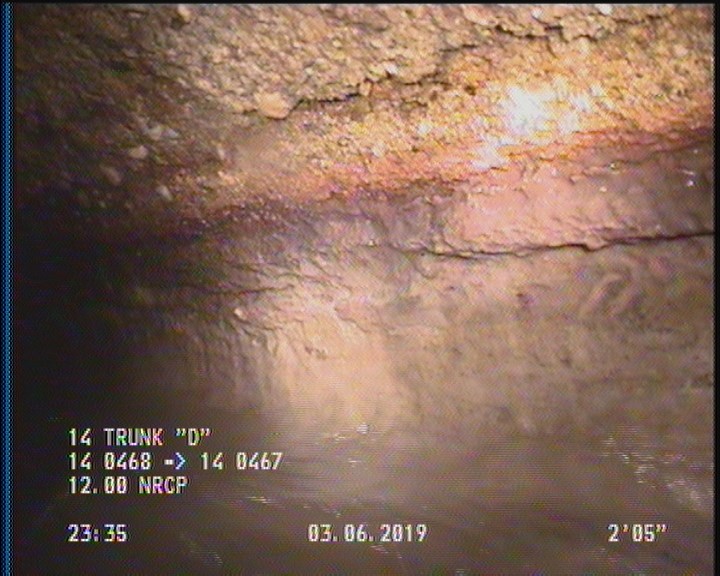

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

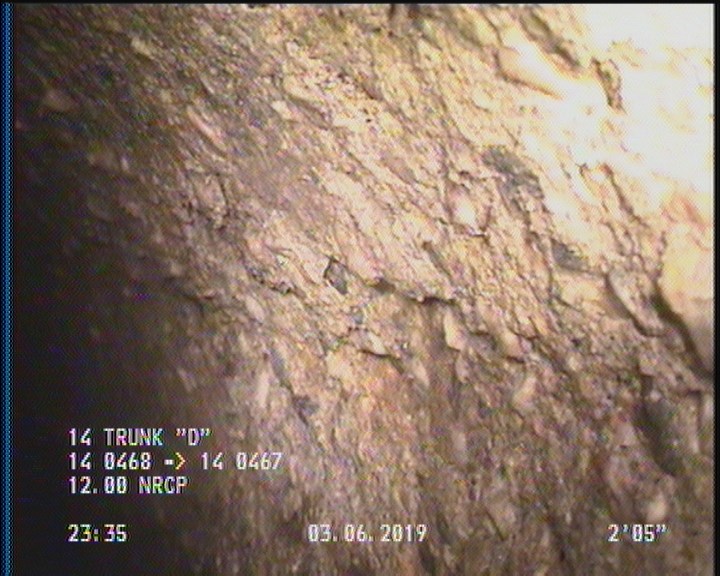

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

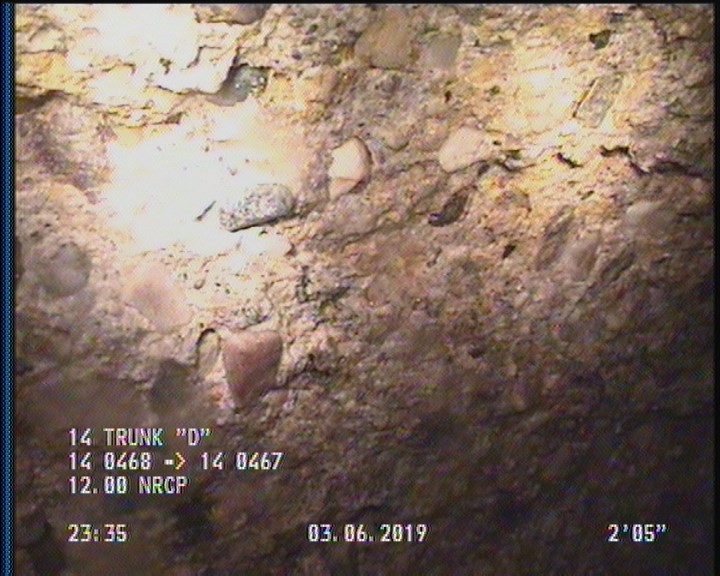

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 136.4 | TFC | — |
| 337.5 | DAGS | — |
| 2 | SSS | — |
| 188.6 | TFC | — |
| 87.3 | TFC | — |
| 337.5 | SSS | — |
| 337.5 | SAP | — |
| 2 | SAP | — |
| 322.1 | TFC | — |
| 0 | AMH | 14 0468 |
| 261.4 | TFC | — |
| 339.8 | AMH | 14 0467 |
| 31.3 | TFC | — |
| 111.7 | TFC | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 59.2 | TFC | — |
Properties (6)
- additional_info
- SC365935
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-03-06T23:33:52-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
