Wastewater/Activity/PacpInspection/1.0Mar 7, 2019, 10:12 AM
14 0463_14 0336_03072019_032737.mp4
- Date
- 03/07/2019
- W/O
- 750756
- Weather
- Light Rain
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00580
- PipeID
- P18552
- Time
- 2:12 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6419
- Sewer Name
- 14 TRUNK "D"
- City
- LANCASTER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- RFIR_WO_750756_TV14023_FEB2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 14 0463
- Downstream MH
- 14 0336
- Dir. of Survey
- Downstream
- Length Surveyed
- 337.5 ft.
- Total Length
- 337.5 ft.
- Structural Index
- 3
- Structural Quick
- 3L2L
- Structural Rating
- 335
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 134
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 469
Observation photos (3)

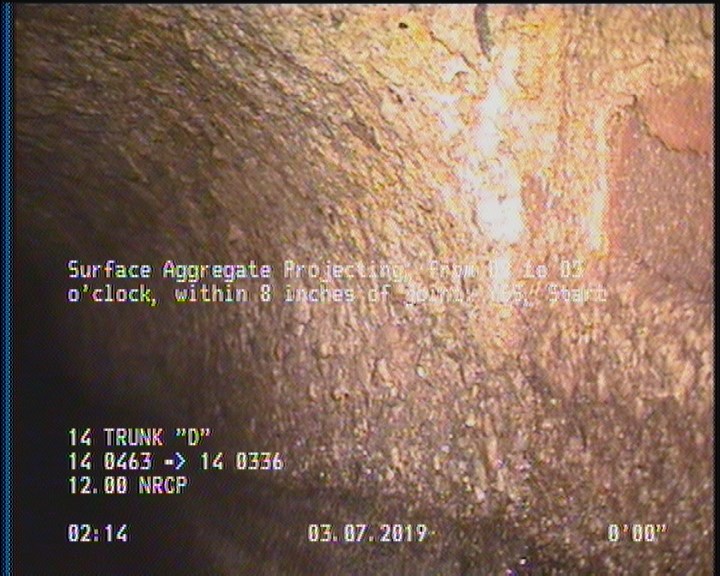

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

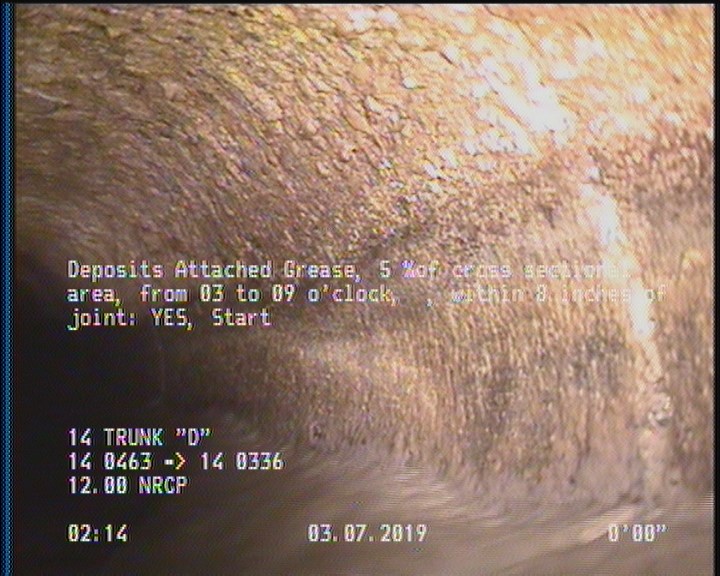

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

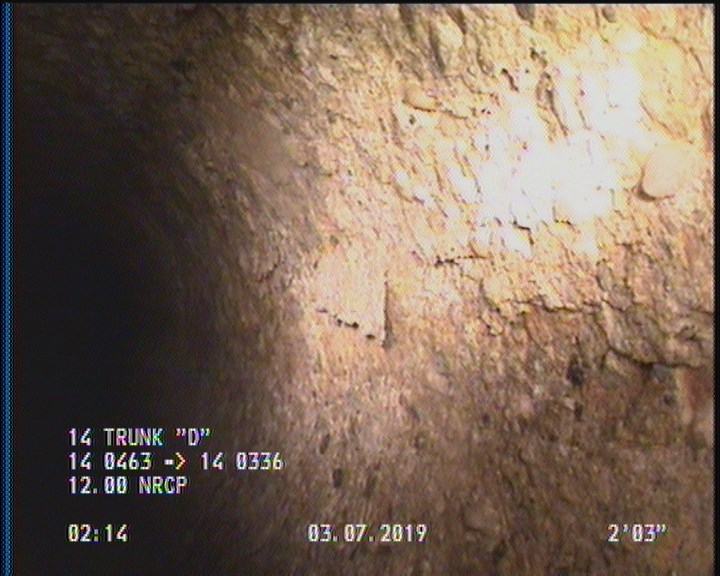

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (24)
| Distance | Code | Observation |
|---|---|---|
| 291.6 | TFC | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 168.9 | TFC | — |
| 2 | SAP | — |
| 337.5 | AMH | 14 0336 |
| 263.5 | TFC | — |
| 68.1 | TFC | — |
| 115.6 | TFC | — |
| 2 | DAGS | — |
| 15 | TFC | — |
| 295.4 | TFC | — |
| 215.6 | TFC | — |
| 0 | AMH | 14 0463 |
| 337.5 | MGO | ACTIVE CONNECTION AT MH 9 AND 12 O'CLOCK |
| 337.4 | SAP | — |
| 2 | SSS | — |
| 139.2 | TFC | — |
| 44 | TFC | — |
| 337.4 | DAGS | — |
| 91.8 | TFC | — |
| 240.8 | TFC | — |
| 337.4 | SSS | — |
| 192.2 | TFC | — |
Properties (6)
- additional_info
- SC365935
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-03-07T02:12:55-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
