Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 30, 2019, 10:27 AM

  • F 0029_F 0028_4302019_050626.mp4

Date
04/30/2019
W/O
0767445
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00033
PipeID
P10119
Time
3:27 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1190
Sewer Name
F JOINT OUTFALL F - UNIT 1
City
PARAMOUNT
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
02
Purpose
Capital Improvement Program Assesment
Project
20190430MDM_JOINT_OUTFALL_F_UNIT_1
Material
Reinforced Concrete Pipe
Shape
Circular
Height
69 in.
Upstream MH
F 0029
Downstream MH
F 0028
Dir. of Survey
Downstream
Length Surveyed
500.7 ft.
Total Length
500.7 ft.
Structural Index
5
Structural Quick
5341
Structural Rating
19
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
5
Overall Quick
—
Overall Rating
19
Pipe schematic from manhole F 0029 to F 0028
MH: F 0029MH: F 0028downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG0 ft. AMH - Upstream Manhole, Survey Begins - 5:05AM2 ft. SRC - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LONG & CIRCUM REBAR2.3 ft. MGO - General Observation - 69" RCP14.6 ft. SRC - Surface Reinforcement Corroded, from 11 to 02 o'clock, within 8 inches of joint: NO - LONG & CIRCUM REBAR417.3 ft. SRC - Surface Reinforcement Corroded, from 11 to 01 o'clock, within 8 inches of joint: NO - CIRCUM REBAR500.5 ft. SRC - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - LONG & CIRCUM REBAR500.5 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG500.7 ft. AMH - Downstream Manhole, Survey Ends - 5:35AM

Observation photos (5)

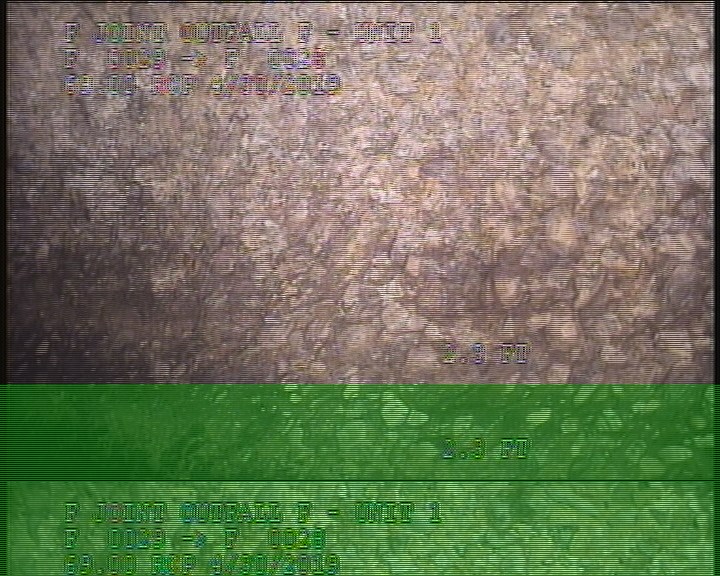

  • Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    0 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

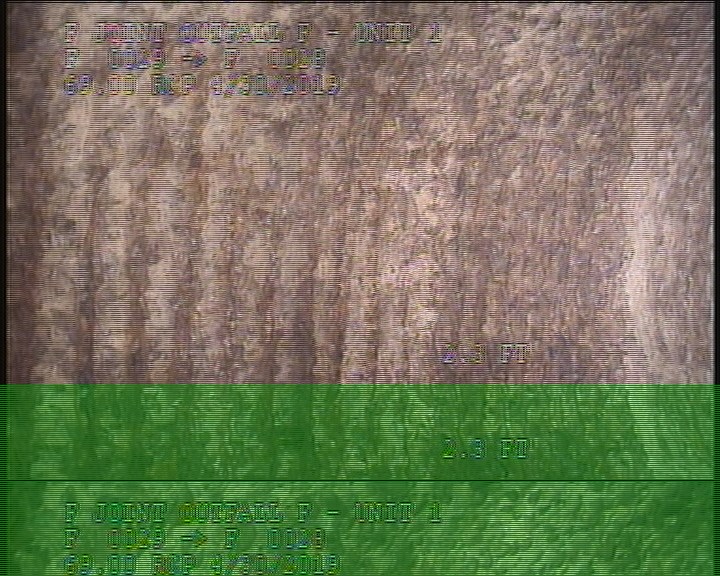

  • Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LONG & CIRCUM REBAR

    2 ft. - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LONG & CIRCUM REBAR

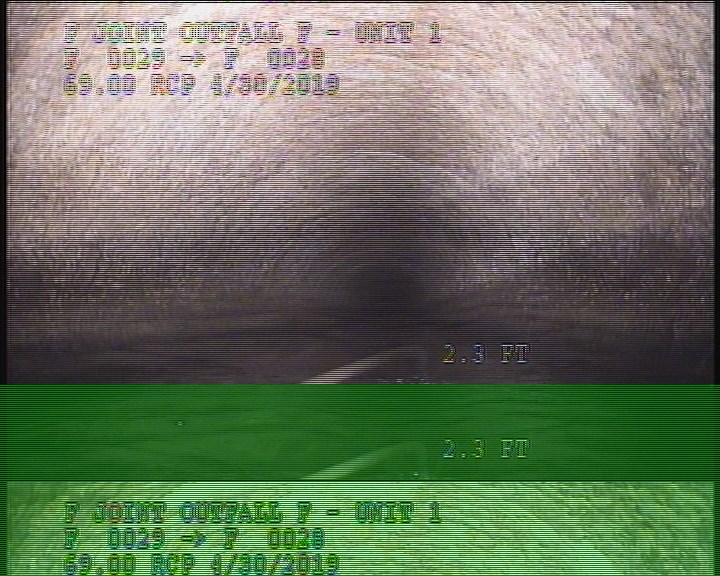

  • General Observation - 69" RCP

    2.3 ft. - General Observation - 69" RCP

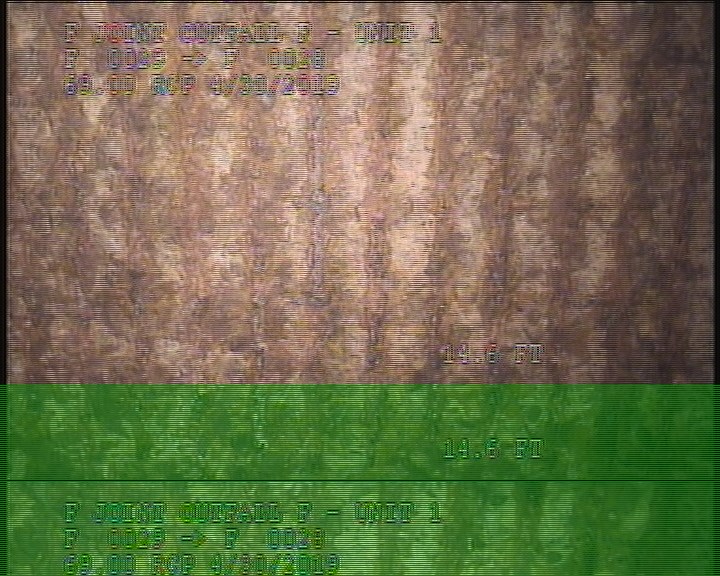

  • Surface Reinforcement Corroded, from 11 to 02 o'clock, within 8 inches of joint: NO - LONG & CIRCUM REBAR

    14.6 ft. - Surface Reinforcement Corroded, from 11 to 02 o'clock, within 8 inches of joint: NO - LONG & CIRCUM REBAR

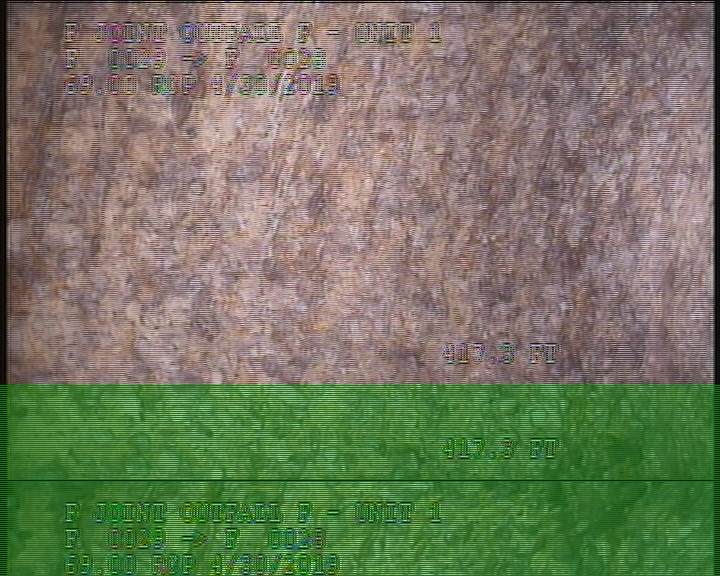

  • Surface Reinforcement Corroded, from 11 to 01 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

    417.3 ft. - Surface Reinforcement Corroded, from 11 to 01 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

All inspections of P10119Work order 0767445

Observations (11)

DistanceCodeObservation
0MWM—
0MWL—
0SAMSEVERE AGG
0AMH5:05AM
417.3SRCCIRCUM REBAR
14.6SRCLONG & CIRCUM REBAR
500.7AMH5:35AM
500.5SRCLONG & CIRCUM REBAR
500.5SAMSEVERE AGG
2SRCLONG & CIRCUM REBAR
2.3MGO69" RCP

Properties (6)

custom_field_three
LONG & CIRCUM REBAR CORRODED
custom_field_two
1
customer
LACSD
datetime
2019-04-30T03:27:50-07:00
documentation
MARTIN,REVELES,OLIVER 111,RUVALCABA
is_lateral_inspection
false
