Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 24, 2019, 11:52 AM

  • 15 0383_15 0382A_4242019_053143.mp4

Date
04/24/2019
W/O
0766292
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00325
PipeID
P08293
Time
4:52 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1186
Sewer Name
A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
City
ROSEMEAD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
15
Purpose
Capital Improvement Program Assesment
Project
20190424MDM_JOA_1A_SAN_JOSE_CREEK_WRP_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
15 0383
Downstream MH
15 0382A
Dir. of Survey
Downstream
Length Surveyed
170.8 ft.
Total Length
170.8 ft.
Structural Index
3
Structural Quick
5141
Structural Rating
16
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
16
Pipe schematic from manhole 15 0383 to 15 0382A
MH: 15 0383MH: 15 0382Adownstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:30AM2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVFERE AGG12 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - PEELING CONCRETE13.2 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVER3E AGG81.4 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG169.1 ft. SRV - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO - POSSIBLE CIRCUM REBAR170.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE170.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG170.8 ft. AMH - Downstream Manhole, Survey Ends - 5:45AM

Observation photos (5)

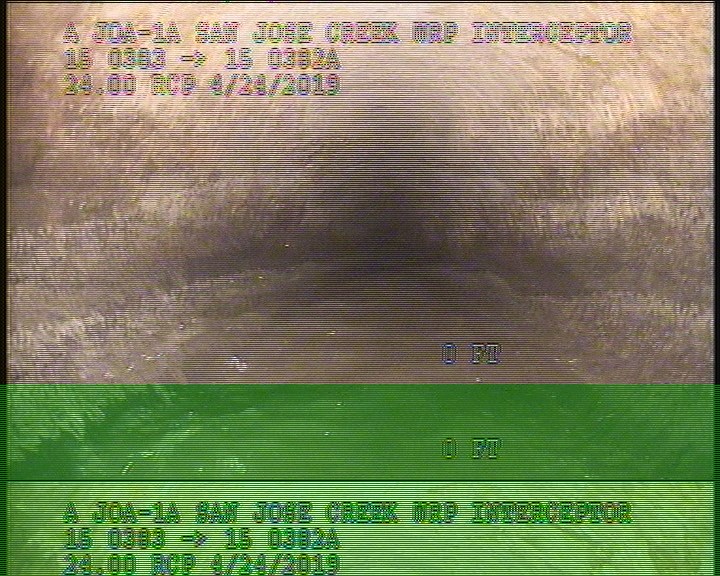

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

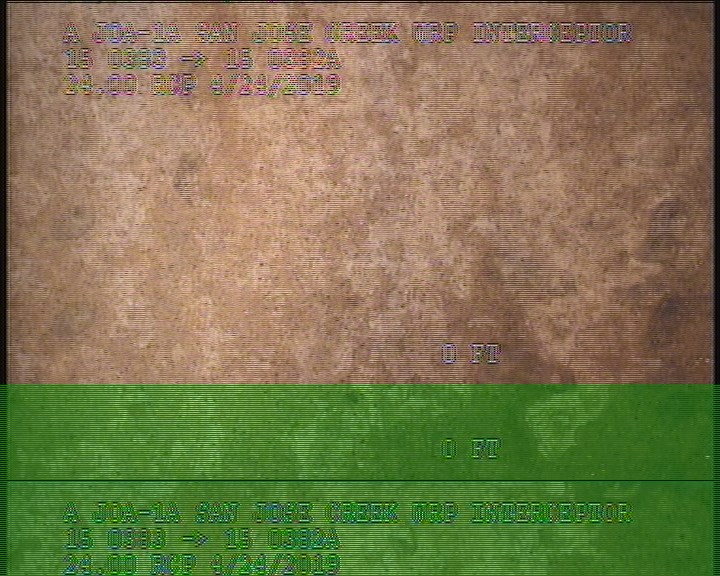

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVFERE AGG

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVFERE AGG

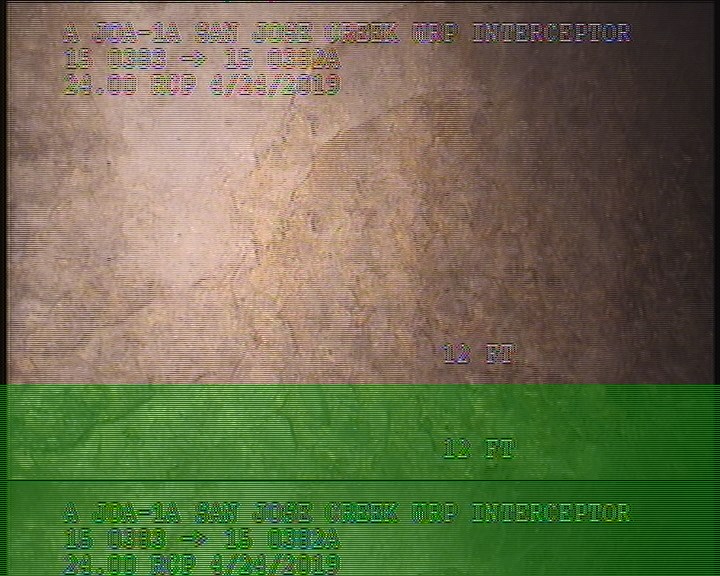

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - PEELING CONCRETE

    12 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - PEELING CONCRETE

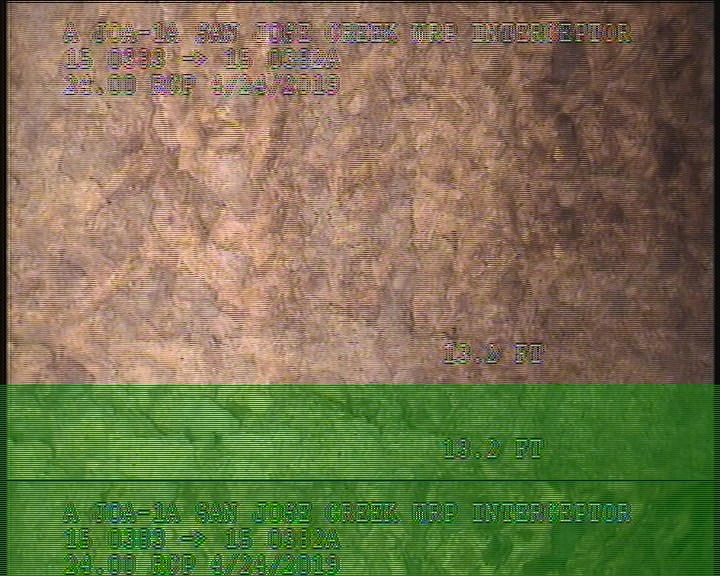

  • Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVER3E AGG

    13.2 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVER3E AGG

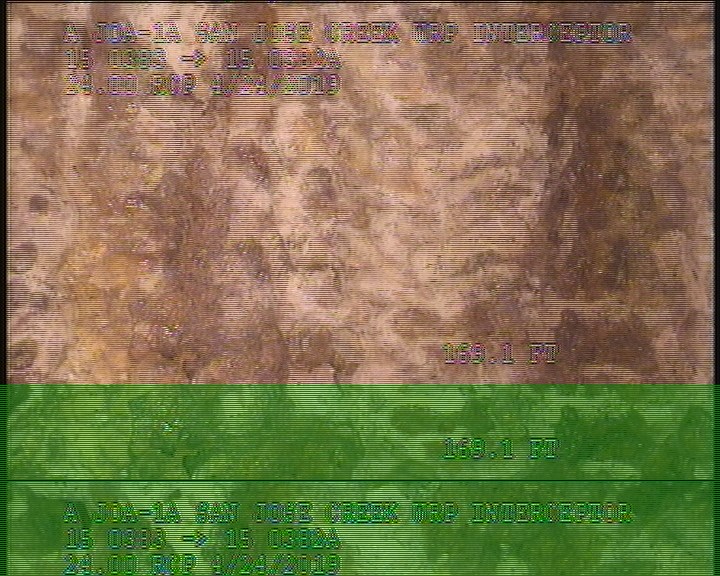

  • Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO - POSSIBLE CIRCUM REBAR

    169.1 ft. - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO - POSSIBLE CIRCUM REBAR

All inspections of P08293Work order 0766292

Observations (12)

DistanceCodeObservation
169.1SRVPOSSIBLE CIRCUM REBAR
170.2SSSBLISTERING PEELING CONCRETE
2SSSBLISTERING PEELING CONCRETE
2SAVSEVFERE AGG
0MWL—
0MWM—
13.2SAMSEVER3E AGG
0AMH5:30AM
170.2SAVSEVERE AGG
81.4SAMSEVERE AGG
170.8AMH5:45AM
12SSSPEELING CONCRETE

Properties (6)

custom_field_three
MISSING SEVERE AGG-1 POSSIBLE CIRCUM REBAR VISIBLE
custom_field_two
3
customer
LACSD
datetime
2019-04-24T04:52:08-07:00
documentation
MARTIN,REVELES,OLIVER 111,RUVALCABA
is_lateral_inspection
false
