Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 16, 2019, 05:18 PM

  • 15 0155_15 0154_4162019_102216.mp4

Date
04/16/2019
W/O
0765241
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00635
PipeID
P12056
Time
10:18 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7963
Sewer Name
15 TYLER AVENUE RELIEF TRUNK
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Capital Improvement Program Assesment
Project
20190415DF_TYLER_AVENUE_RELIEF_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
15 0155
Downstream MH
15 0154
Dir. of Survey
Downstream
Length Surveyed
489.7 ft.
Total Length
489.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 15 0155 to 15 0154
MH: 15 0155MH: 15 0154downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:19 AM0.1 ft. MWL - Water Level, 20 %of cross sectional area0.1 ft. MWM - Water Mark, 25 %of cross sectional area0.1 ft. MGO - General Observation - ROACHES @ MH8 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 80% MAG102.4 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"106.7 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach235.3 ft. MGP - General Photograph404.7 ft. MGP - General Photograph461.7 ft. MGP - General Photograph487.1 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach487.1 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)488 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 80% MAG488 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 80% MAG489.7 ft. MGO - General Observation - ROACHES @ MH489.7 ft. AMH - Downstream Manhole, Survey Ends - 10:50 AM489.7 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active

Observation photos (5)

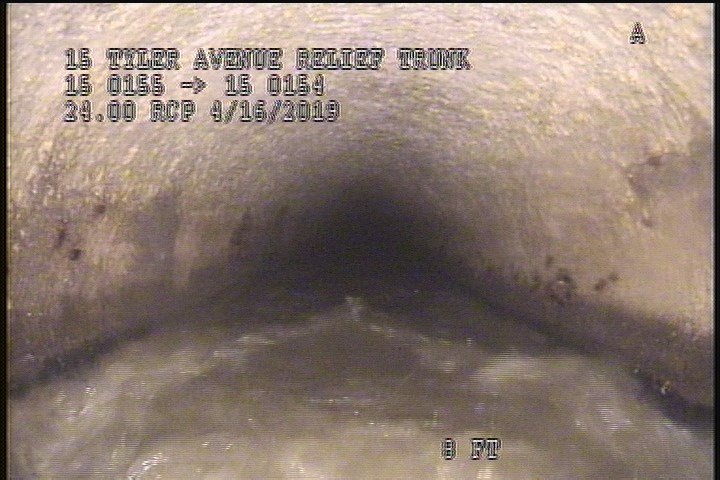

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 80% MAG

    8 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 80% MAG

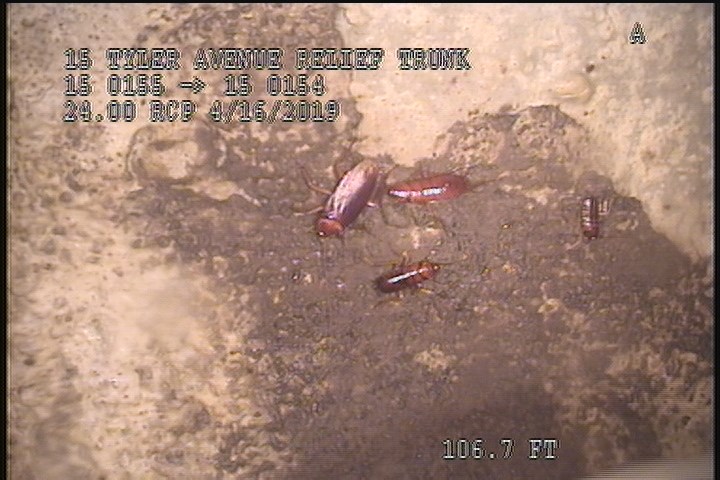

  • General Observation - Peeling & Flaking Throughout The Reach

    106.7 ft. - General Observation - Peeling & Flaking Throughout The Reach

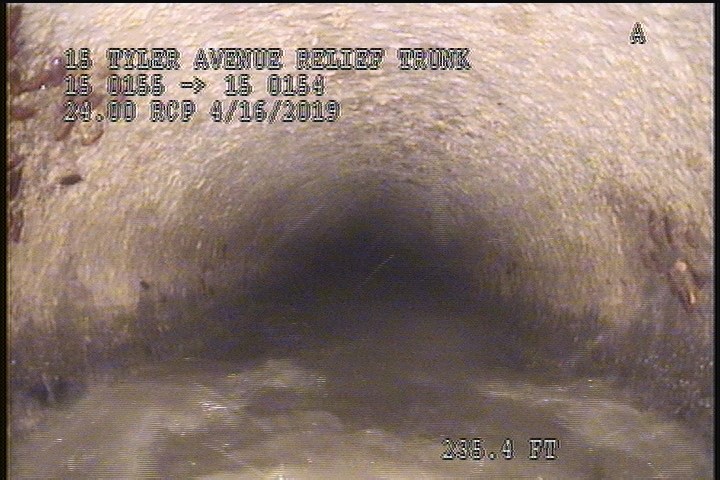

  • General Photograph

    235.3 ft. - General Photograph

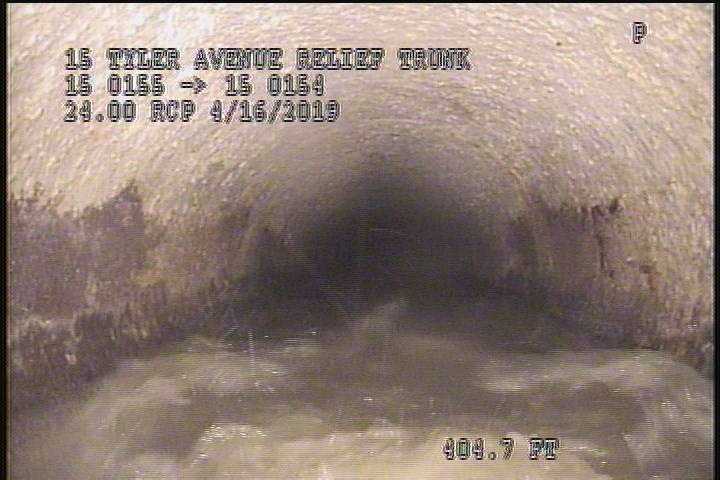

  • General Photograph

    404.7 ft. - General Photograph

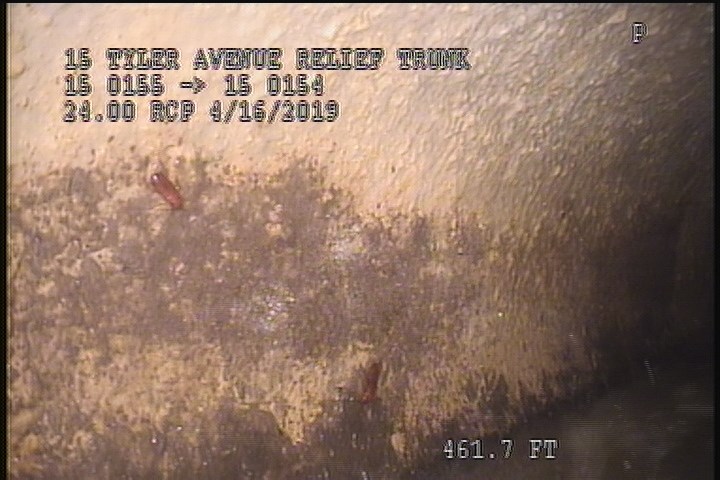

  • General Photograph

    461.7 ft. - General Photograph

All inspections of P12056Work order 0765241

Observations (17)

DistanceCodeObservation
0.1MWL—
487.1MGOPeeling & Flaking Throughout The Reach
8SZ80% MAG
106.7MGOPeeling & Flaking Throughout The Reach
102.4TFA—
488SZ80% MAG
489.7MGOROACHES @ MH
404.7MGP—
0.1MWM—
488SZ80% MAG
489.7AMH10:50 AM
0.1MGOROACHES @ MH
461.7MGP—
0AMH10:19 AM
235.3MGP—
489.7MGOConn. @ Mh, 3 O' Clock. Active
487.1MGOGREASE THROUGHOUT THE REACH (5%)

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2019-04-16T10:18:59-07:00
documentation
FRANKLIN, CASTILLO, SHADLER
is_lateral_inspection
false
