Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 10, 2019, 05:50 PM

  • A 0109_A 1238_4102019_105750.mp4

  • A 0109_A 1238_4102019_131811.mp4

Date
04/10/2019
W/O
0765379
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00331
PipeID
P22667
Time
10:50 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7961
Sewer Name
A JOINT OUTFALL A - UNIT 2
City
CARSON
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
16
Purpose
Maintenance Related
Project
20190410DF_JOINT_OUTFALL_A_UNIT_2
Material
Reinforced Concrete Pipe
Shape
Rectangular
Height
108 in.
Upstream MH
A 1238
Downstream MH
A 0109
Dir. of Survey
Upstream
Length Surveyed
2 ft.
Total Length
2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
5
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole A 1238 to A 0109
MH: A 1238MH: A 0109upstream0 ft. MGP - General Photograph0 ft. MSA - Survey Abandoned - GREASE0 ft. MGP - General Photograph0 ft. MGP - General Photograph2 ft. MWM - Water Mark, 95 %of cross sectional area2 ft. AMH - Downstream Manhole, Survey Begins - 10:56 AM2 ft. MWL - Water Level, 90 %of cross sectional area

Observation photos (4)

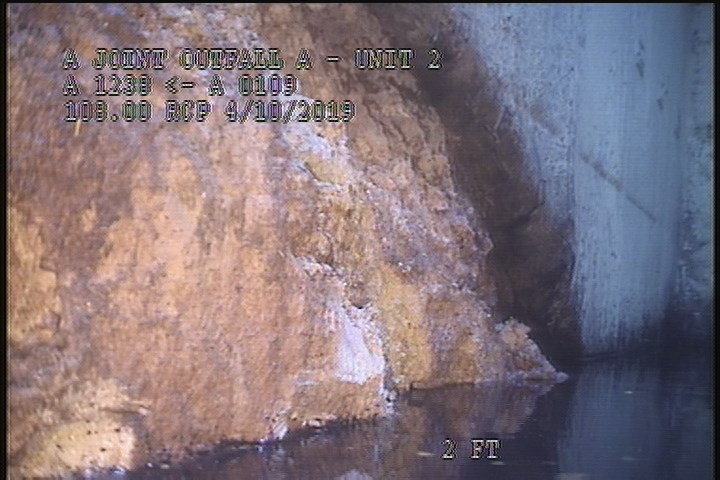

  • Water Mark, 95 %of cross sectional area

    0 ft. - Water Mark, 95 %of cross sectional area

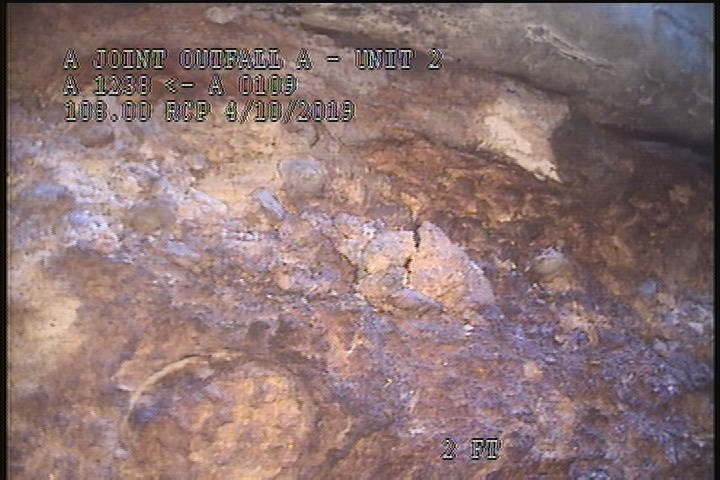

  • General Photograph

    2 ft. - General Photograph

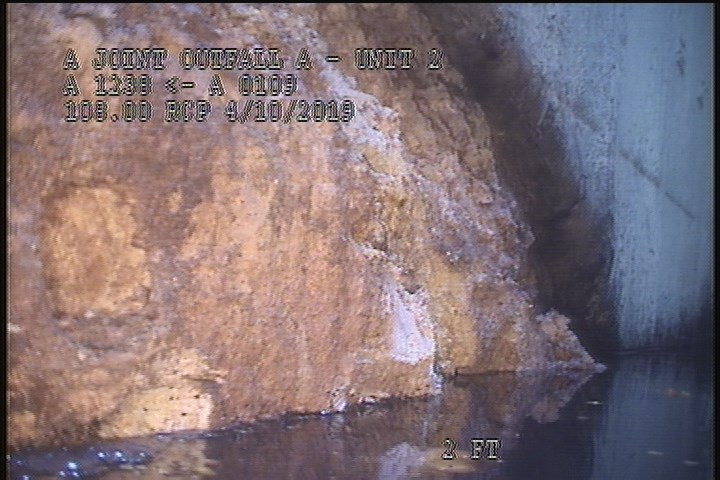

  • General Photograph

    2 ft. - General Photograph

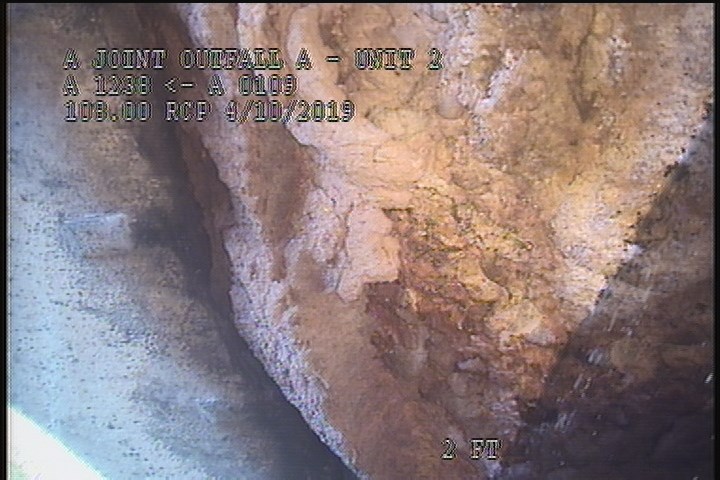

  • General Photograph

    2 ft. - General Photograph

All inspections of P22667Work order 0765379

Observations (7)

DistanceCodeObservation
2MGP—
0MWM—
2MSAGREASE
0AMH10:56 AM
2MGP—
0MWL—
2MGP—

Properties (5)

custom_field_two
5
customer
LACSD
datetime
2019-04-10T10:50:34-07:00
documentation
FRANKLIN, CASTILLO, IGNACIO, SHADLER
is_lateral_inspection
false
