Wastewater/Activity/PacpInspection/1.0Apr 9, 2019, 03:54 PM
15 1162_15 1161_492019_092217.mp4
- Date
- 04/09/2019
- W/O
- 0765242
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00635
- PipeID
- P25908
- Time
- 8:54 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7960
- Sewer Name
- 15 TYLER AVENUE RELIEF TRUNK
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- 20190409SHO_TYLER_AVENUE_RELIEF_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 15 1162
- Downstream MH
- 15 1161
- Dir. of Survey
- Downstream
- Length Surveyed
- 252.8 ft.
- Total Length
- 252.8 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

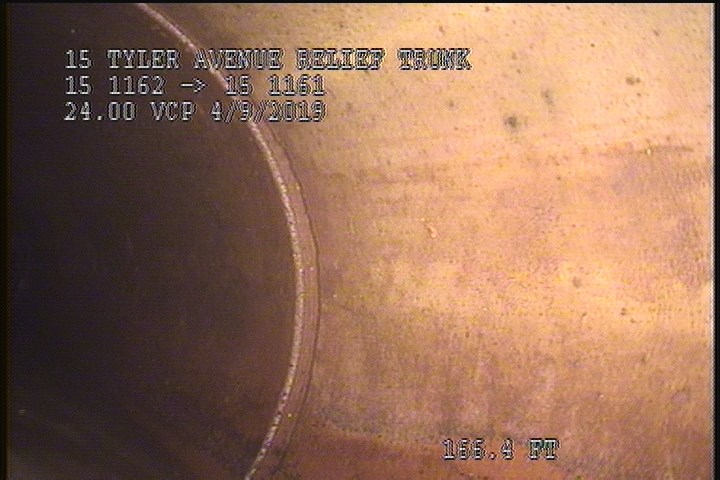

166.4 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - DISCOLORATION
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 175.6 | TFA | — |
| 166.4 | SSS | DISCOLORATION |
| 0 | MWM | — |
| 120.5 | TFA | — |
| 252.8 | AMH | MH 1161 |
| 231.4 | TFA | — |
| 250.5 | SSS | — |
| 0 | AMH | MH 1162 |
| 0 | MWL | — |
Properties (7)
- custom_field_three
- DISCOLORATION/SPALLING
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-04-09T08:54:46-07:00
- documentation
- OBREGON, YOUNG, BRAR, CASTILLO
- is_lateral_inspection
- false
- year_laid
- 20080312
