Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 6, 2019, 02:33 PM

  • A 0614_A 0613_462019_074532.mp4

Date
04/06/2019
W/O
0763051
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00316
PipeID
P07819
Time
7:33 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7956
Sewer Name
A JOA-1A DISTRICT 21 INTERCEPTOR
City
INDUSTRY
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
24
Purpose
Routine Assessment
Project
20190405DF_JOA_1A_DISTRICT_21_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
A 0614
Downstream MH
A 0613
Dir. of Survey
Downstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
5
O&M Quick
5141
O&M Rating
9
Overall Index
4
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole A 0614 to A 0613
MH: A 0614MH: A 0613downstream0 ft. MWM - Water Mark, 100 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 7:34 AM0 ft. MWL - Water Level, 100 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES2 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES2 ft. MGP - General Photograph - AIRLINE2.1 ft. LU - Alignment Up, 45 %2.1 ft. MSA - Survey Abandoned - HIGH WATER

Observation photos (6)

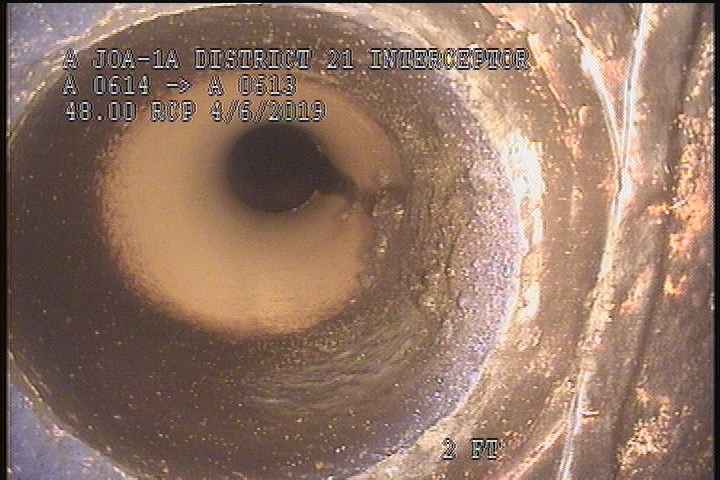

  • Water Level, 100 %of cross sectional area

    0 ft. - Water Level, 100 %of cross sectional area

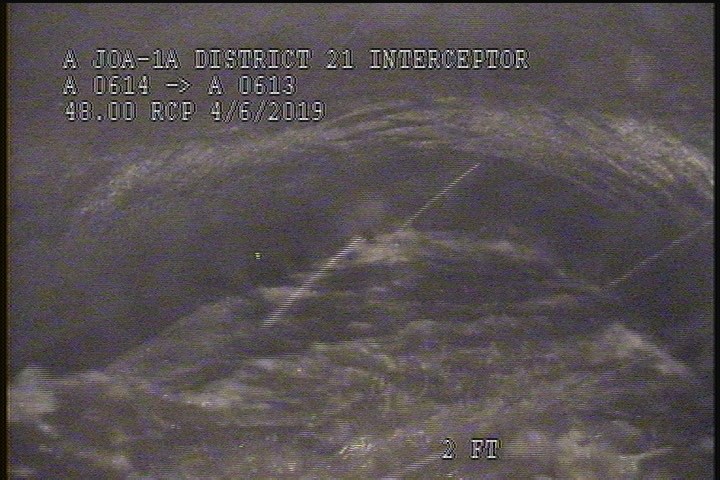

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

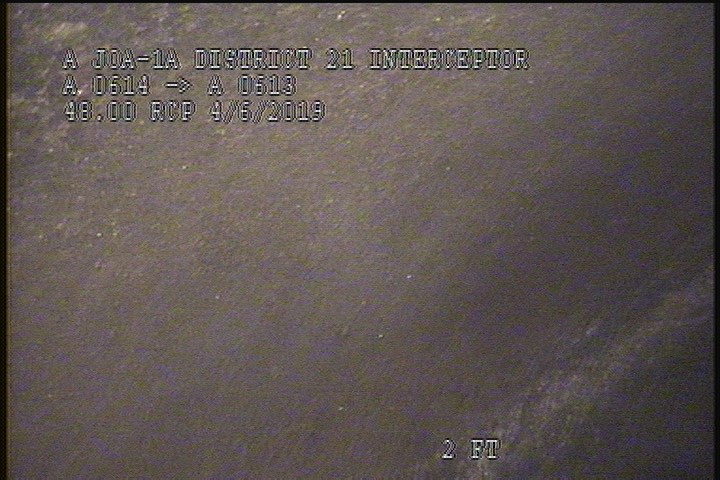

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

  • General Photograph - AIRLINE

    2 ft. - General Photograph - AIRLINE

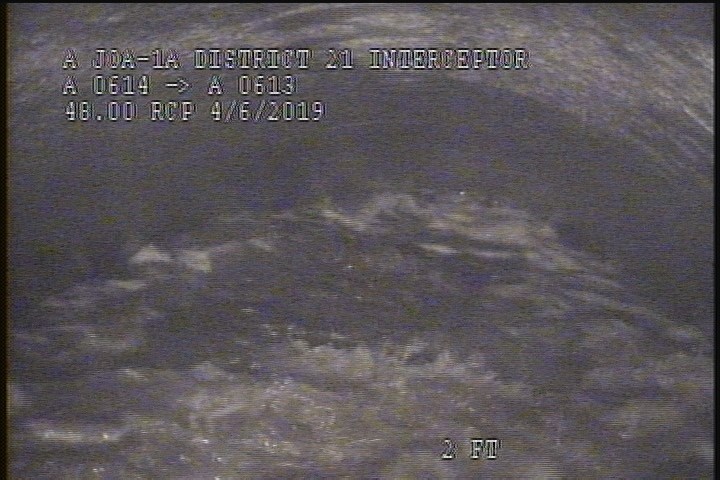

  • Alignment Up, 45 %

    2.1 ft. - Alignment Up, 45 %

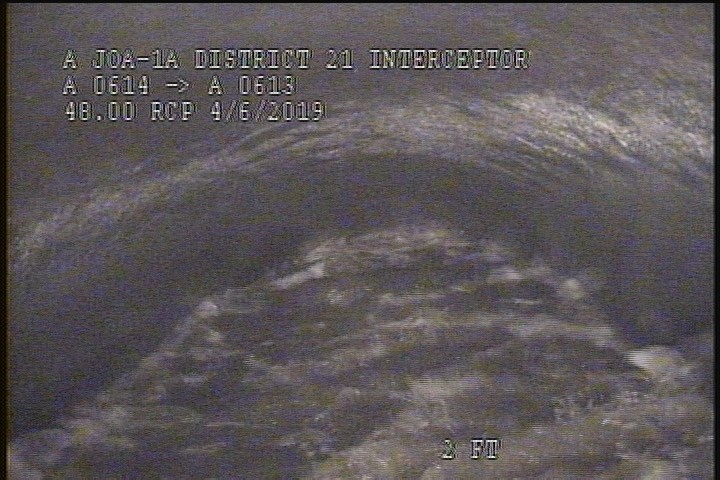

  • Survey Abandoned - HIGH WATER

    2.1 ft. - Survey Abandoned - HIGH WATER

All inspections of P07819Work order 0763051

Observations (9)

DistanceCodeObservation
0MWM—
2SSS—
2.1LU—
2MGOGREASE THROUGHOUT THE REACH (5%)
2SAV—
2.1MSAHIGH WATER
0AMH7:34 AM
0MWL—
2MGPAIRLINE

Properties (6)

additional_info
VIEW OF THE DOWNLEG FROM THE U/S SIPHON
custom_field_two
5
customer
LACSD
datetime
2019-04-06T07:33:20-07:00
documentation
FRANKLIN, CASTILLO, OBREGON, RAMIREZ
is_lateral_inspection
false
