Wastewater/Activity/PacpInspection/1.0Apr 6, 2019, 02:17 PM
A 0614_A 0613_462019_072500.mp4
- Date
- 04/06/2019
- W/O
- 0763051
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00316
- PipeID
- P07819
- Time
- 7:17 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7956
- Sewer Name
- A JOA-1A DISTRICT 21 INTERCEPTOR
- City
- INDUSTRY
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- 20190405DF_JOA_1A_DISTRICT_21_INTERCEPTOR
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- A 0613
- Downstream MH
- A 0614
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 3
- Structural Quick
- 5131
- Structural Rating
- 10
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (6)

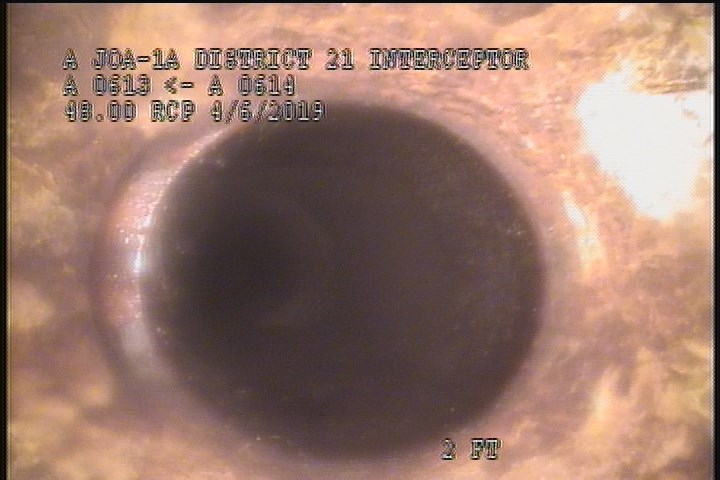

0 ft. - Water Mark, 100 %of cross sectional area

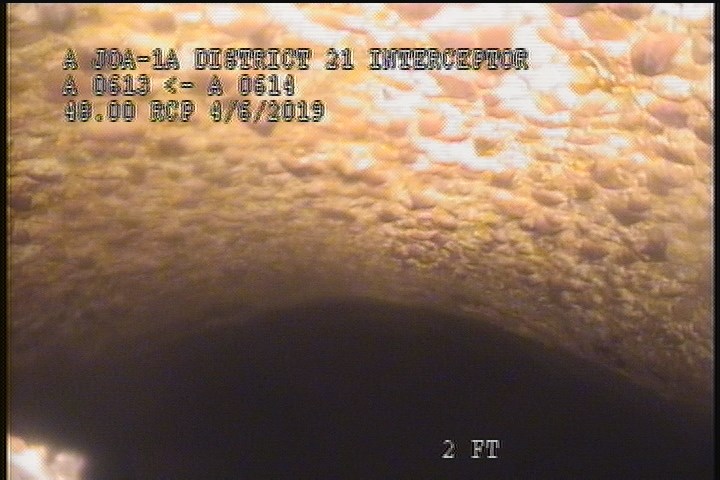

0 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

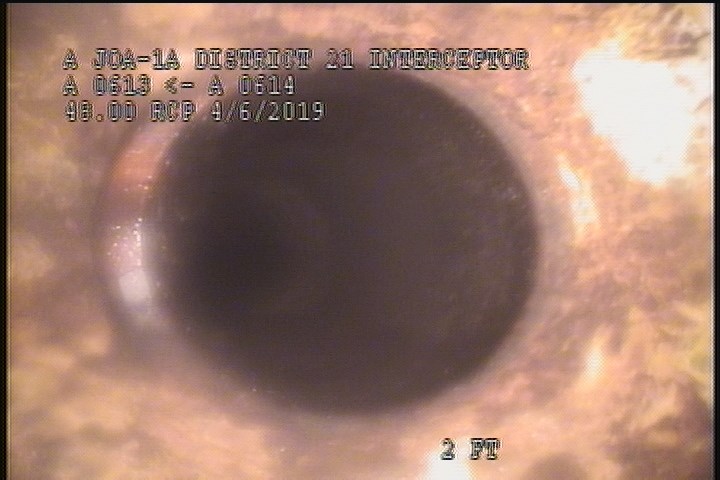

2 ft. - General Photograph

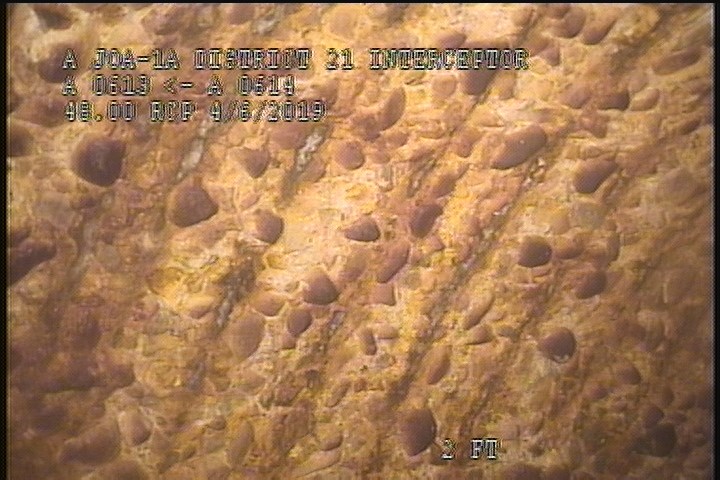

2 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

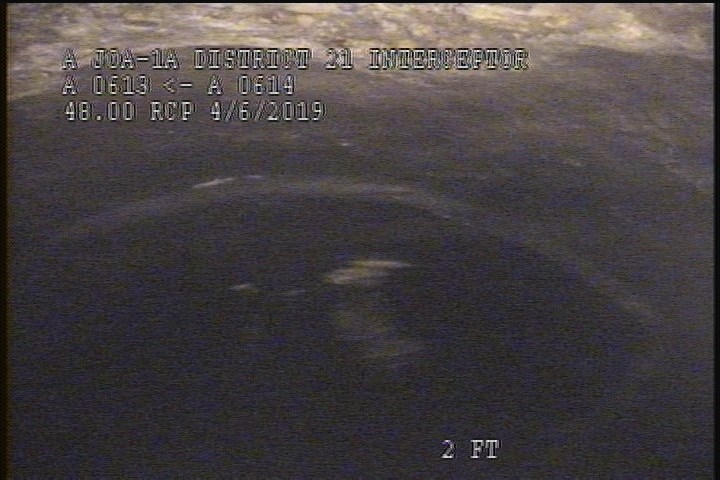

2 ft. - General Photograph

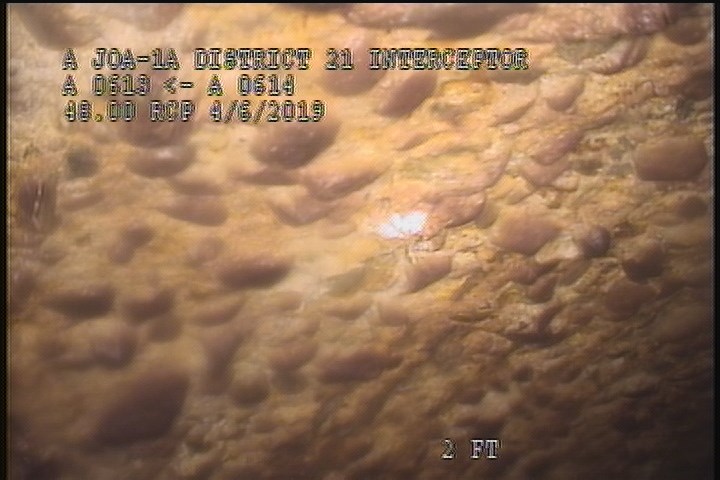

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 2.1 | MSA | HIGH WATER |
| 2 | MGP | — |
| 2 | SRV | — |
| 0 | AMH | 7:20 AM |
| 2 | MGP | — |
| 0 | MWL | — |
| 0 | SAV | — |
| 2 | MGO | GREASE THROUGHOUT THE REACH (5%) |
| 2 | SSS | — |
Properties (6)
- additional_info
- VIEW OF THE UPLEG FROM THE D/S SIPHON
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-04-06T07:17:42-07:00
- documentation
- FRANKLIN, CASTILLO, OBREGON, RAMIREZ
- is_lateral_inspection
- false
