Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 6, 2019, 12:43 PM

  • A 0613_A 0612_462019_062732.mp4

Date
04/06/2019
W/O
0763051
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00316
PipeID
P07818
Time
5:43 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7957
Sewer Name
A JOA-1A DISTRICT 21 INTERCEPTOR
City
INDUSTRY
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
24
Purpose
Routine Assessment
Project
20190405DF_JOA_1A_DISTRICT_21_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
A 0613
Downstream MH
A 0612
Dir. of Survey
Downstream
Length Surveyed
425.4 ft.
Total Length
425.4 ft.
Structural Index
3
Structural Quick
5132
Structural Rating
13
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole A 0613 to A 0612
MH: A 0613MH: A 0612downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:53 AM2 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 60% MAG8 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"129.7 ft. MGP - General Photograph136.9 ft. MGP - General Photograph418.8 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 60% MAG418.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish418.8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish418.8 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish418.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish418.9 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)418.9 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach425.4 ft. AMH - Downstream Manhole, Survey Ends - 6:50 AM

Observation photos (6)

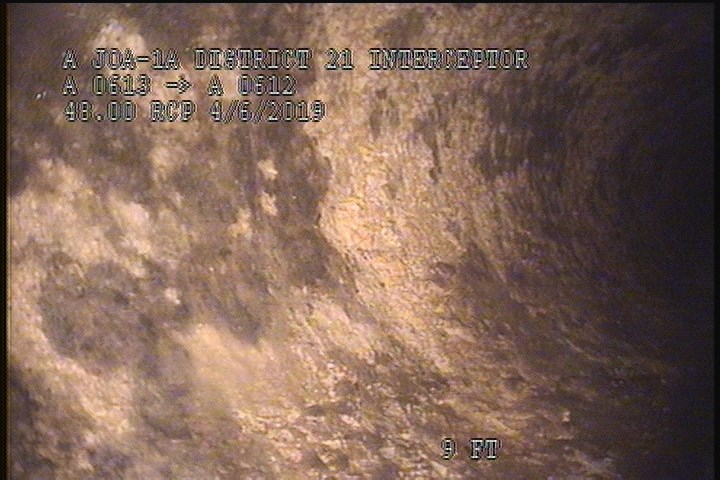

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

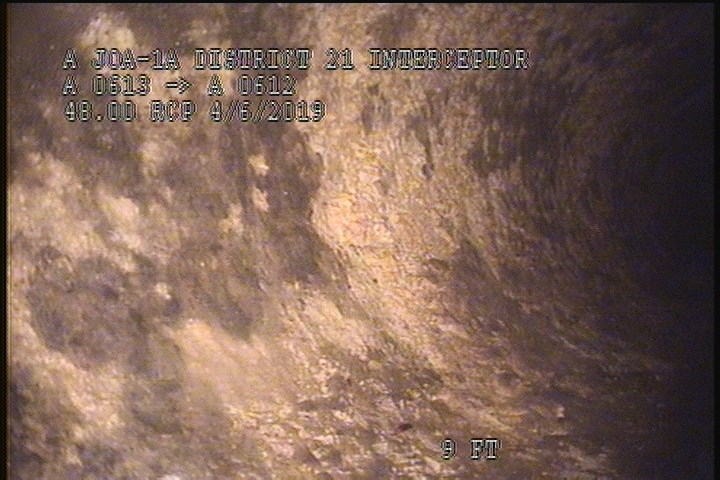

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

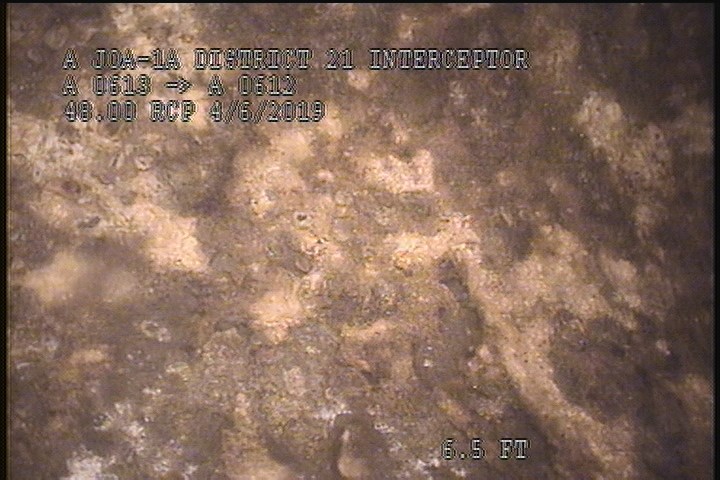

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

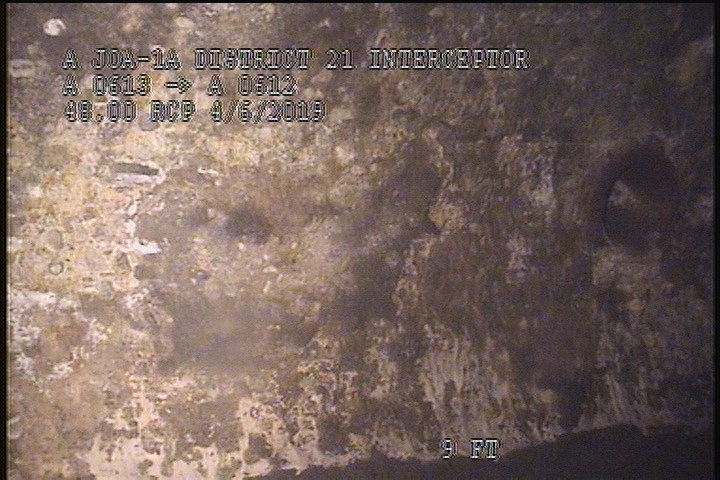

  • Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"

    8 ft. - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"

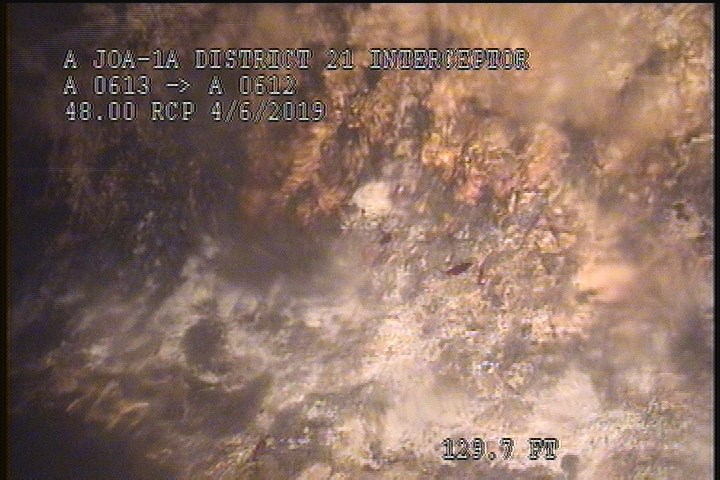

  • General Photograph

    129.7 ft. - General Photograph

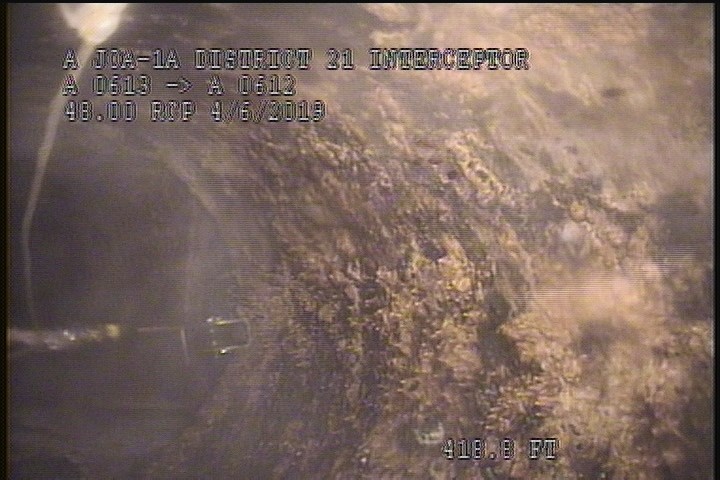

  • General Photograph

    136.9 ft. - General Photograph

All inspections of P07818Work order 0763051

Observations (19)

DistanceCodeObservation
418.8SZ60% MAG
2SRV—
2SAP—
418.8SSS—
2SAV—
418.8SAP—
136.9MGP—
129.7MGP—
2SSS—
0MWL—
418.9MGOGREASE THROUGHOUT THE REACH (5%)
425.4AMH6:50 AM
418.8SRV—
2SZ60% MAG
8TFC—
418.9MGOPeeling & Flaking Throughout The Reach
0MWM—
418.8SAV—
0AMH5:53 AM

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-04-06T05:43:45-07:00
documentation
FRANKLIN, CASTILLO, OBREGON, RAMIREZ
is_lateral_inspection
false
