Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 5, 2019, 06:56 PM

  • A 0614_A 0613_452019_120659.mp4

Date
04/05/2019
W/O
0763051
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00316
PipeID
P07819
Time
11:56 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7956
Sewer Name
A JOA-1A DISTRICT 21 INTERCEPTOR
City
INDUSTRY
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
24
Purpose
Routine Assessment
Project
20190405DF_JOA_1A_DISTRICT_21_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
A 0613
Downstream MH
A 0614
Dir. of Survey
Upstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
5
O&M Quick
5141
O&M Rating
9
Overall Index
3
Overall Quick
—
Overall Rating
17
Pipe schematic from manhole A 0613 to A 0614
MH: A 0613MH: A 0614upstream0 ft. MSA - Survey Abandoned - HIGH WATER0.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES0.1 ft. LU - Alignment Up, 45 %0.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES0.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES0.1 ft. MGP - General Photograph - AIRLINE0.1 ft. MGO - General Observation - Grease Throughout The Reach (5%)2.1 ft. AMH - Downstream Manhole, Survey Begins - 11:57 AM2.1 ft. MWM - Water Mark, 100 %of cross sectional area2.1 ft. MGO - General Observation - Grease Throughout The Reach (5%)2.1 ft. MWL - Water Level, 100 %of cross sectional area

Observation photos (3)

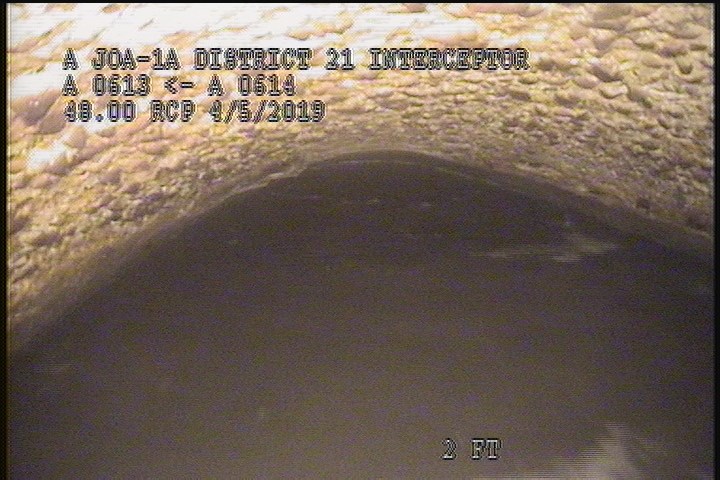

  • General Observation - Grease Throughout The Reach (5%)

    0 ft. - General Observation - Grease Throughout The Reach (5%)

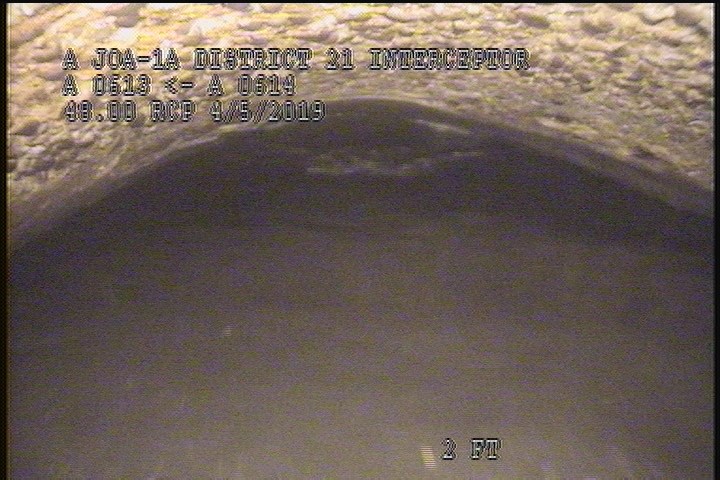

  • Alignment Up, 45 %

    2 ft. - Alignment Up, 45 %

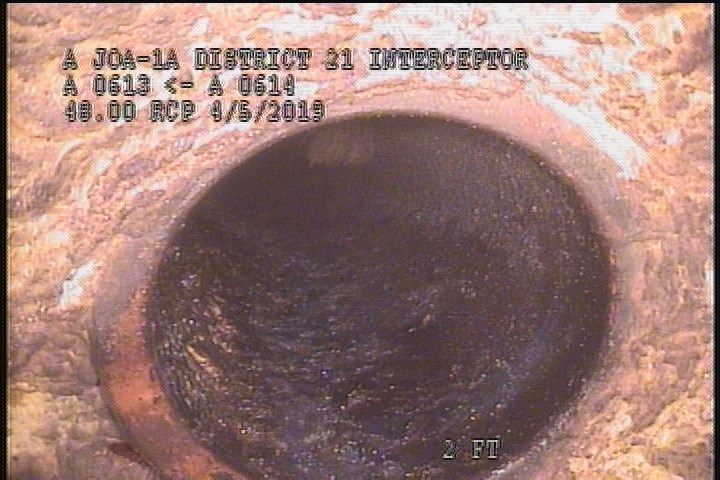

  • General Photograph - AIRLINE

    2 ft. - General Photograph - AIRLINE

All inspections of P07819Work order 0763051

Observations (11)

DistanceCodeObservation
2SAV—
2LU—
0AMH11:57 AM
2SAP—
0MWM—
0MGOGrease Throughout The Reach (5%)
2SSS—
2.1MSAHIGH WATER
0MWL—
2MGPAIRLINE
2MGOGrease Throughout The Reach (5%)

Properties (6)

additional_info
VIEW OF THE UPLEG FROM THE D/S SIPHON
custom_field_two
5
customer
LACSD
datetime
2019-04-05T11:56:03-07:00
documentation
FRANKLIN, CASTILLO, IGNACIO
is_lateral_inspection
false
