Wastewater/Activity/PacpInspection/1.0Mar 20, 2019, 07:37 AM
20 0043_20 0042_03202019_014350.mp4
- Date
- 03/20/2019
- W/O
- 756628
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00742
- PipeID
- P18964
- Time
- 12:37 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6431
- Sewer Name
- 20 TRUNK "A"
- City
- PALMDALE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_756628_TV20026_MAR2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 20 0042
- Downstream MH
- 20 0043
- Dir. of Survey
- Upstream
- Length Surveyed
- 370.1 ft.
- Total Length
- 370.1 ft.
- Structural Index
- 3
- Structural Quick
- 3M2N
- Structural Rating
- 362
- O&M Index
- 3
- O&M Quick
- 3M00
- O&M Rating
- 216
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 578
Observation photos (3)

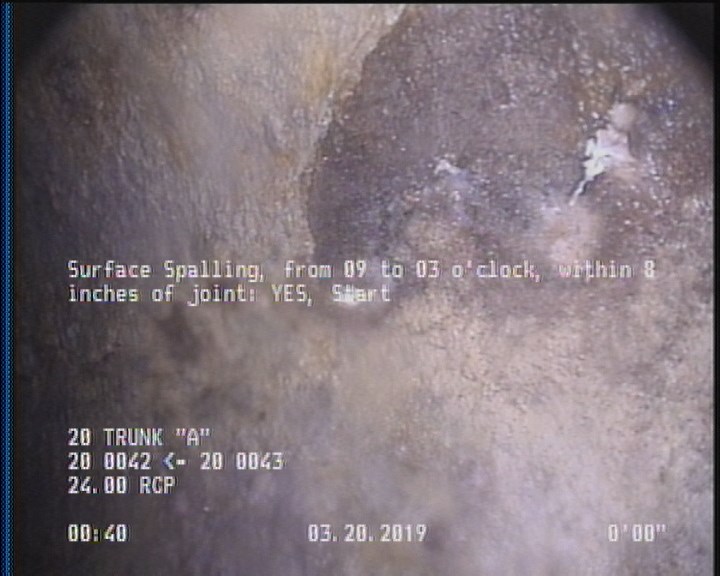

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

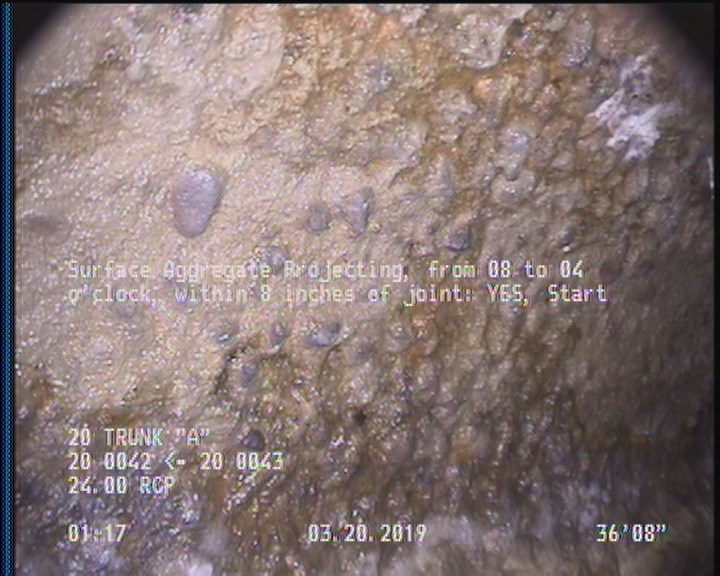

8.8 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

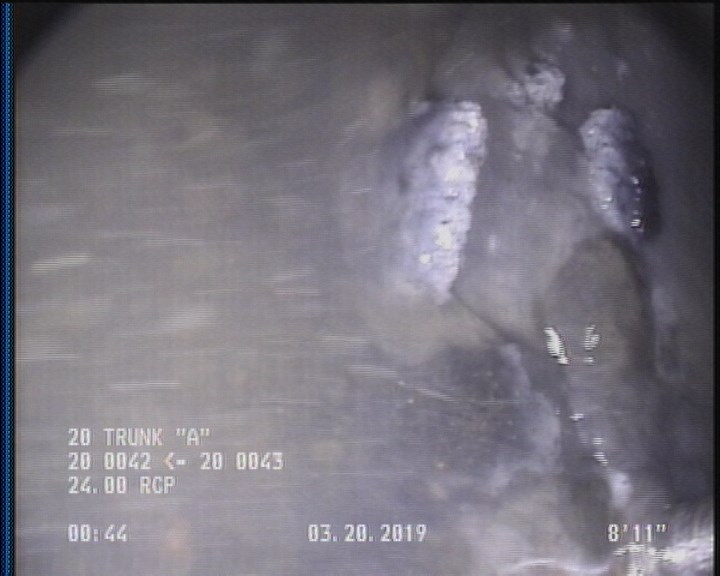

8.9 ft. - Deposits Settled Other, 20 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS UNDER WATER
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 8.8 | SAP | — |
| 8.9 | DSZ | DEBRIS UNDER WATER |
| 78.9 | TFC | — |
| 370.1 | AMH | 20 0043 |
| 223.9 | TFC | — |
| 366.4 | SSS | — |
| 366.4 | SAP | — |
| 318.8 | TFC | — |
| 351.7 | TFC | — |
| 0 | MWM | — |
| 366.4 | DSZ | — |
| 2 | SSS | — |
| 170.7 | TFC | — |
| 0 | AMH | 20 0042 |
| 30.1 | TFC | — |
| 0 | MWL | — |
| 122.7 | TFC | — |
Properties (6)
- additional_info
- SC365949
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-03-20T00:37:25-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
