Wastewater/Activity/PacpInspection/1.0Apr 3, 2019, 08:47 AM
20 0067_20 0066_04032019_015914.mp4
- Date
- 04/03/2019
- W/O
- 756628
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00742
- PipeID
- P18988
- Time
- 1:47 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6445
- Sewer Name
- 20 TRUNK "A"
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_756628_TV20026_MAR2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 20 0067
- Downstream MH
- 20 0066
- Dir. of Survey
- Downstream
- Length Surveyed
- 333.5 ft.
- Total Length
- 333.5 ft.
- Structural Index
- 3
- Structural Quick
- 5L3L
- Structural Rating
- 650
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 132
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 782
Observation photos (4)

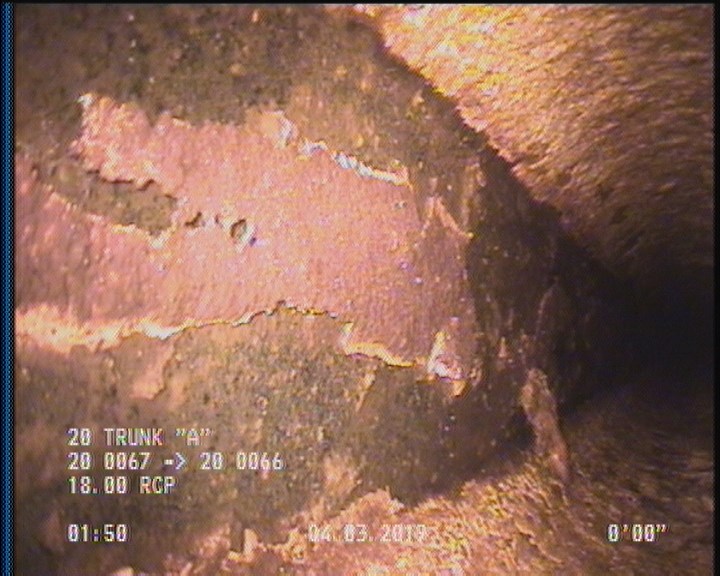

2 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

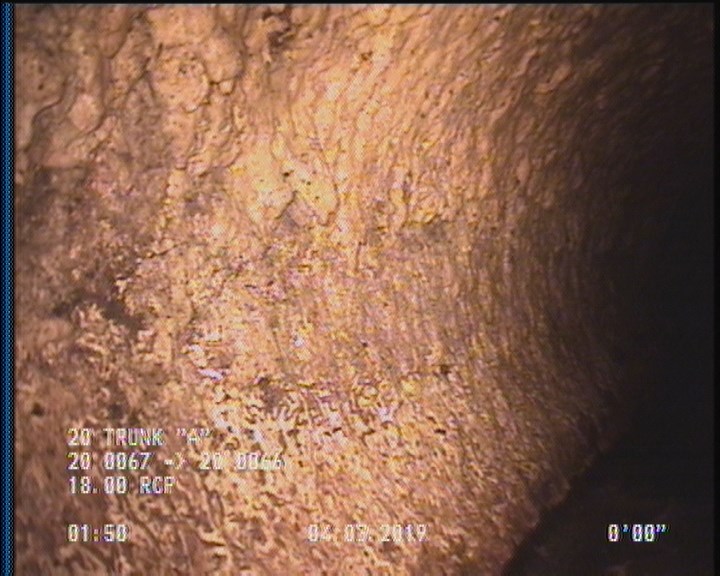

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

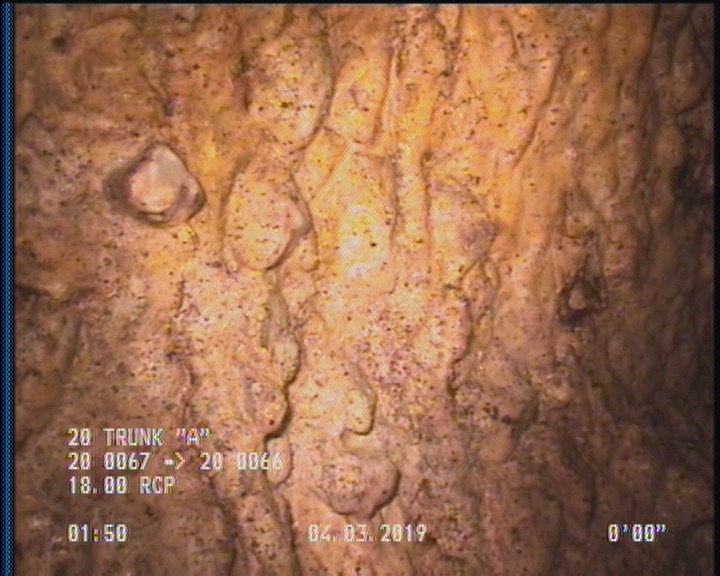

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

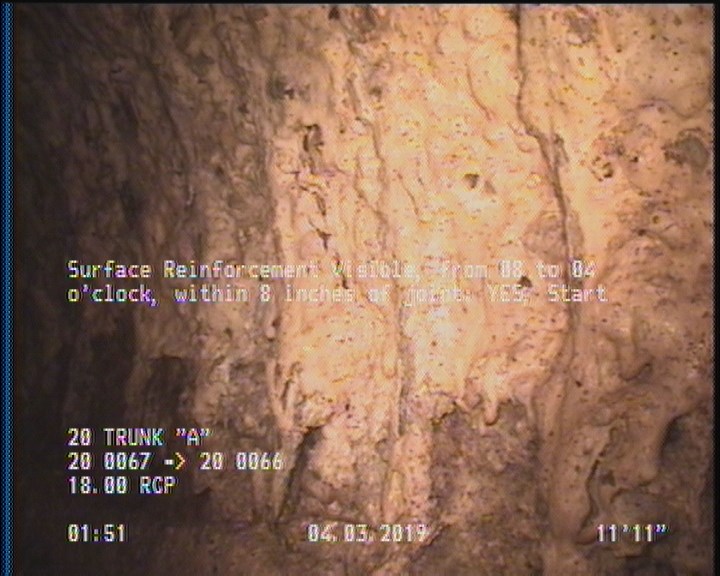

11.9 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 2 | DSZ | — |
| 2 | SSS | — |
| 331.8 | DSZ | — |
| 2 | SAP | — |
| 331.8 | SAP | — |
| 0 | AMH | 20 0067 |
| 333.5 | AMH | 20 0066 |
| 331.8 | SSS | — |
| 331.8 | SRV | — |
| 11.9 | SRV | — |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC366213
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-04-03T01:47:31-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
