Wastewater/Activity/PacpInspection/1.0Mar 21, 2019, 07:16 AM
20 0052_20 0051_03212019_003206.mp4
- Date
- 03/21/2019
- W/O
- 756628
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00742
- PipeID
- P18973
- Time
- 12:16 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6432
- Sewer Name
- 20 TRUNK "A"
- City
- PALMDALE
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_756628_TV20026_MAR2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 20 0052
- Downstream MH
- 20 0051
- Dir. of Survey
- Downstream
- Length Surveyed
- 385.5 ft.
- Total Length
- 385.5 ft.
- Structural Index
- 3
- Structural Quick
- 3N2N
- Structural Rating
- 380
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 384
Observation photos (3)

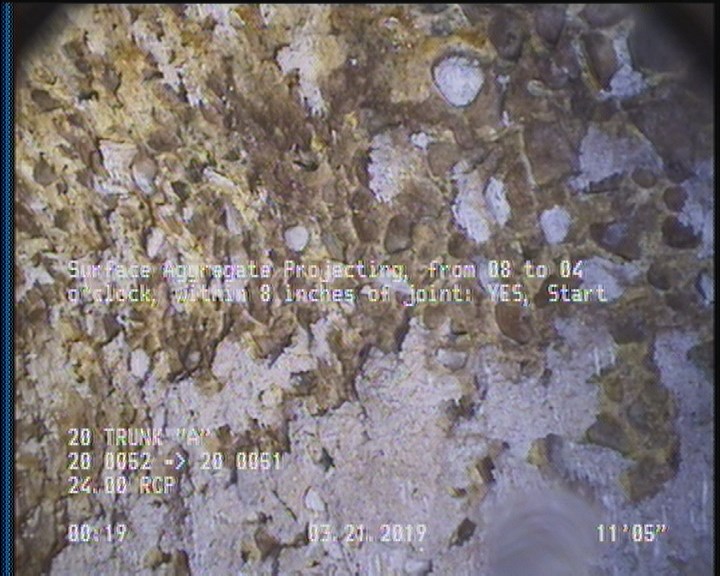

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

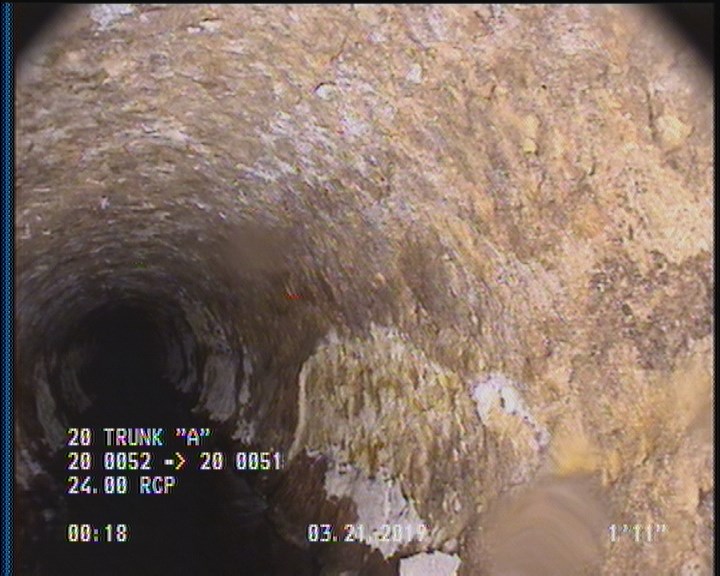

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

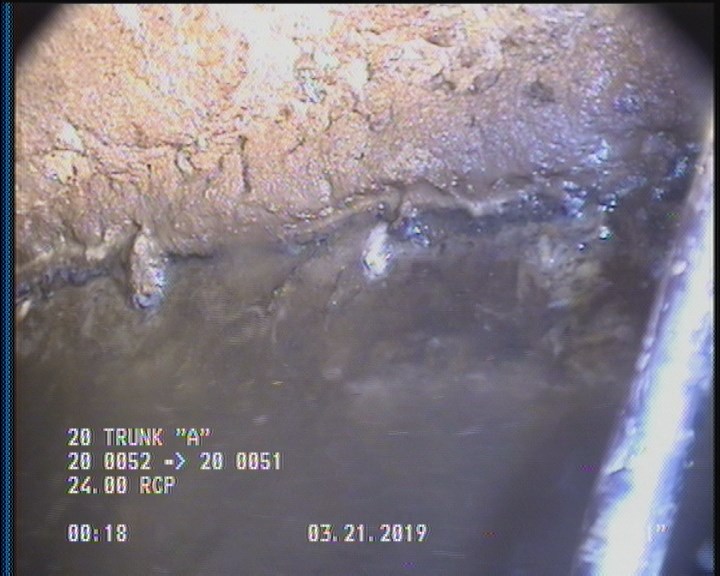

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 2 | SAP | — |
| 383.8 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 28.1 | TFC | — |
| 2 | SSS | — |
| 0 | AMH | 20 0052 |
| 346.8 | TFC | — |
| 383.8 | DAGS | — |
| 123.3 | TFC | — |
| 383.8 | SAP | — |
| 0 | MWM | — |
| 385.5 | AMH | 20 0051 |
| 227.2 | TFC | — |
| 2 | DAGS | — |
| 383.8 | SSS | — |
Properties (6)
- additional_info
- SC365950
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-03-21T00:16:03-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
