Wastewater/Activity/PacpInspection/1.0Mar 18, 2019, 10:52 AM
02 2321_02 2320 _03182019_040414.mp4
- Date
- 03/18/2019
- W/O
- 756106
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00897
- PipeID
- P20951
- Time
- 3:52 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5831
- Sewer Name
- 02 INDIANA STREET TRUNK, SECTION 2 RELIEF
- City
- EAST LOS ANGELES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 11A
- Purpose
- Routine Assessment
- Project
- WO_756106_TV02071_MAR2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 02 2321
- Downstream MH
- 02 2320
- Dir. of Survey
- Downstream
- Length Surveyed
- 187.2 ft.
- Total Length
- 187.2 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

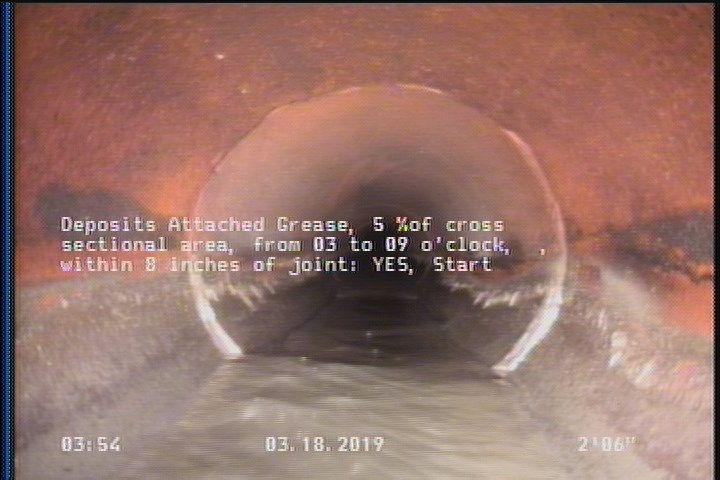

2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

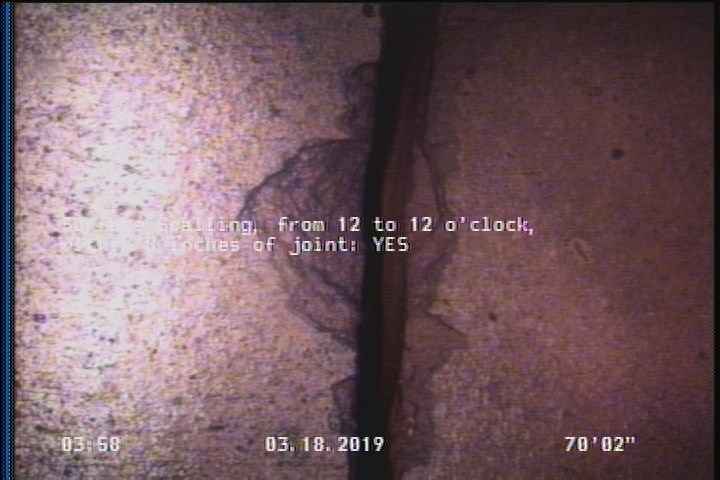

70.1 ft. - Surface Spalling, from 12 to 12 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 70.1 | SSS | — |
| 0 | AMH | 02 2321 |
| 185.6 | DAGS | — |
| 0 | MWM | — |
| 132 | DSC | — |
| 2.5 | DAGS | — |
| 83.9 | DSC | — |
| 83 | TFC | — |
| 187.2 | AMH | 02 2320 |
| 0 | MWL | — |
Properties (7)
- additional_info
- SC366062
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-03-18T03:52:33-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 33824
