Wastewater/Activity/PacpInspection/1.0Mar 18, 2019, 09:43 AM
02 2325_02 2324 _03182019_025625.mp4
- Date
- 03/18/2019
- W/O
- 756106
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00897
- PipeID
- P20955
- Time
- 2:43 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5831
- Sewer Name
- 02 INDIANA STREET TRUNK, SECTION 2 RELIEF
- City
- EAST LOS ANGELES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 11A
- Purpose
- Routine Assessment
- Project
- WO_756106_TV02071_MAR2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 02 2324
- Downstream MH
- 02 2325
- Dir. of Survey
- Upstream
- Length Surveyed
- 261.5 ft.
- Total Length
- 261.5 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

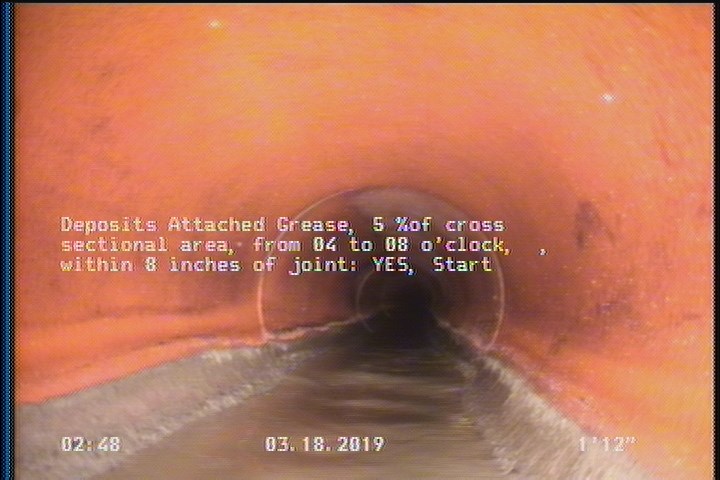

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

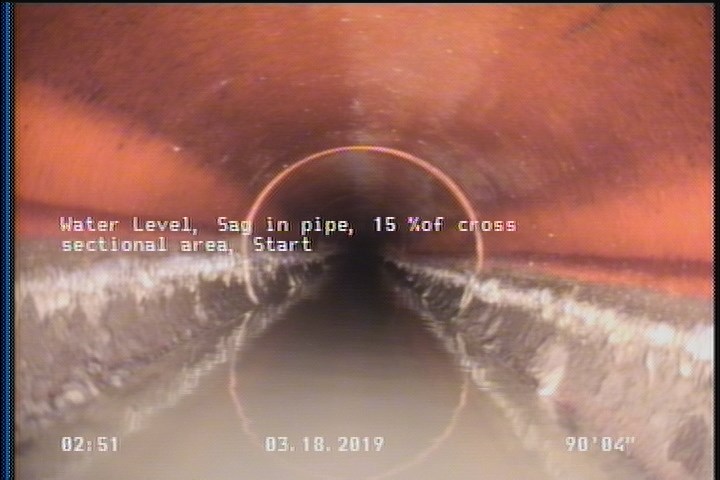

90.3 ft. - Water Level, Sag in pipe, 15 %of cross sectional area, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 90.3 | MWLS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 261.5 | AMH | 02 2325 |
| 259.4 | DAGS | — |
| 0 | AMH | 02 2324 |
| 130 | MWLS | — |
| 2 | DAGS | — |
Properties (7)
- additional_info
- SC366062
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-03-18T02:43:39-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 33824
