Wastewater/Activity/PacpInspection/1.0Feb 13, 2019, 07:24 AM
17 0065_17 0064 _02122019_232507.mp4
- Date
- 02/12/2019
- W/O
- 750739
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00668
- PipeID
- P13784
- Time
- 11:24 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6392
- Sewer Name
- 17 DISTRICT #17 MAIN TRUNK
- City
- ALTADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 17
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_750739_TV17011_FEB2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 17 0065
- Downstream MH
- 17 0064
- Dir. of Survey
- Downstream
- Length Surveyed
- 226.5 ft.
- Total Length
- 226.5 ft.
- Structural Index
- 3
- Structural Quick
- 3D00
- Structural Rating
- 69
- O&M Index
- 2
- O&M Quick
- 2H00
- O&M Rating
- 88
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 157
Observation photos (3)
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
2.2 ft. - General Observation - MAG COATING 80% THROUGHOUT

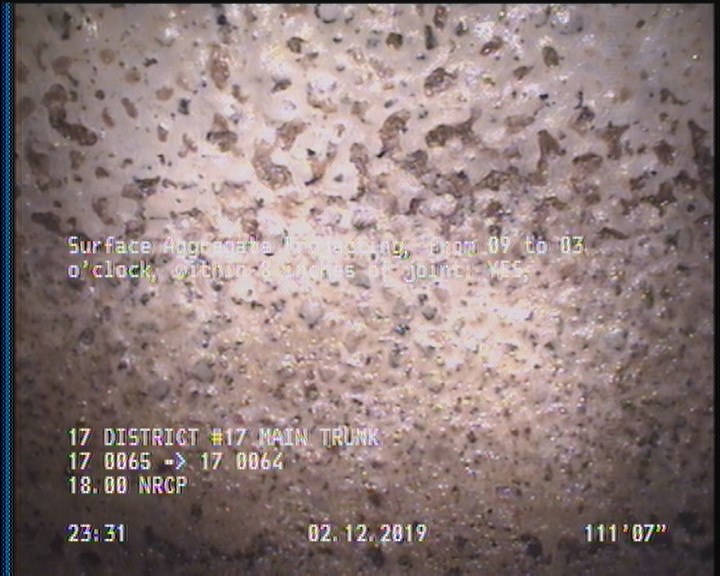

111.6 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 90.6 | TFC | — |
| 2 | DAGS | — |
| 224.5 | DAGS | — |
| 0 | MWM | — |
| 2.2 | MGO | MAG COATING 80% THROUGHOUT |
| 111.6 | SAP | — |
| 168.7 | TF | — |
| 224.5 | SAP | — |
| 226.5 | AMH | 17 0064 |
| 48.3 | TBA | — |
| 0 | AMH | 17 0065 |
Properties (6)
- additional_info
- SC365903
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-02-12T23:24:34-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
