Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 15, 2019, 10:01 AM

  • 17 0055_17 0054 _02152019_020121.mp4

Date
02/15/2019
W/O
750739
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00668
PipeID
P13776
Time
2:01 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6396
Sewer Name
17 DISTRICT #17 MAIN TRUNK
City
ALTADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 17
Page No.
04
Purpose
Routine Assessment
Project
WO_750739_TV17011_FEB2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
17 0055
Downstream MH
17 0054
Dir. of Survey
Downstream
Length Surveyed
421.8 ft.
Total Length
421.8 ft.
Structural Index
3
Structural Quick
3P00
Structural Rating
252
O&M Index
2
O&M Quick
2P00
O&M Rating
168
Overall Index
3
Overall Quick
—
Overall Rating
420
Pipe schematic from manhole 17 0055 to 17 0054
MH: 17 0055MH: 17 0054downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 17 00550 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start20.3 ft. MGO - General Observation - MAG COATING 80% THROUGHOUT24.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"57.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"79.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"121.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"139.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"188.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"218.6 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"221 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"272.8 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"330.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"419.7 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish419.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish421.8 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK421.8 ft. AMH - Downstream Manhole, Survey Ends - 17 0054

Observation photos (2)

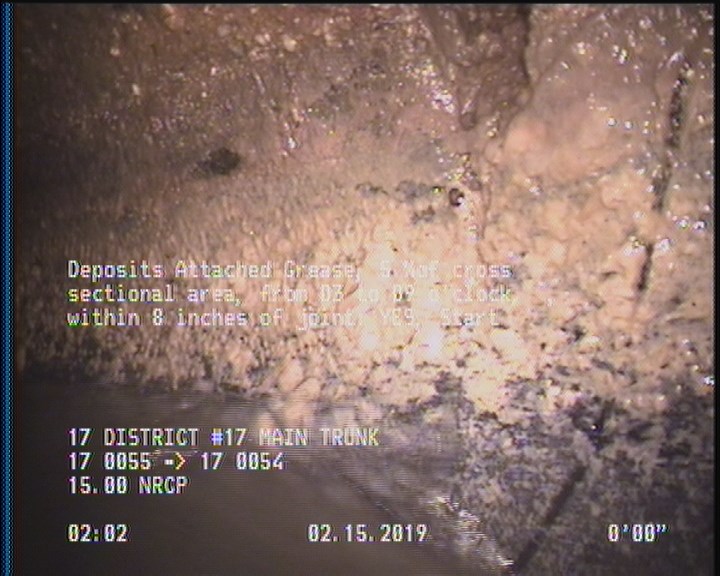

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

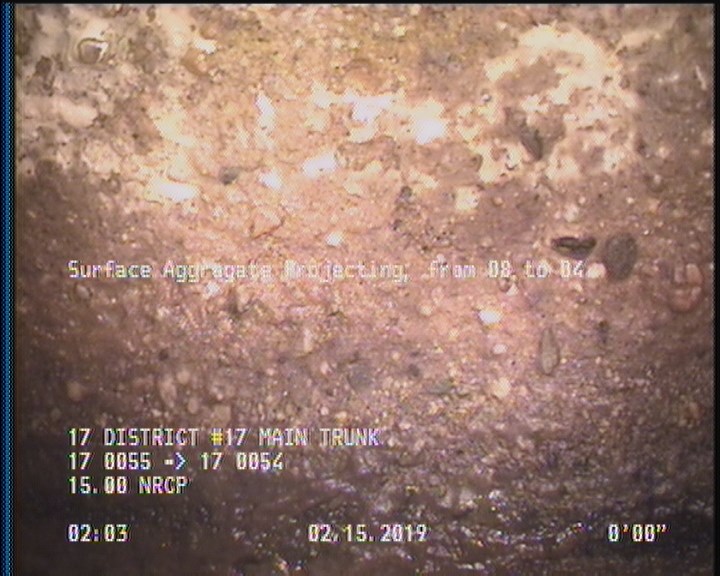

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P13776Work order 750739

Observations (20)

DistanceCodeObservation
121.3TFA—
419.7SAP—
0MWL—
57.7TFC—
218.6TFA—
221TBA—
421.8MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0AMH17 0055
421.8AMH17 0054
272.8TFC—
139.5TFA—
79.1TFA—
2DAGS—
330.5TFA—
20.3MGOMAG COATING 80% THROUGHOUT
24.7TFC—
2SAP—
419.7DAGS—
188.3TFC—
0MWM—

Properties (6)

additional_info
SC365908
custom_field_two
2
customer
LACSD
datetime
2019-02-15T02:01:11-08:00
documentation
PRO PIPE
is_lateral_inspection
false
