Wastewater/Activity/PacpInspection/1.0Feb 27, 2019, 10:33 AM
17 0052_17 0051 _02272019_023338.mp4
- Date
- 02/27/2019
- W/O
- 750739
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00668
- PipeID
- P13773
- Time
- 2:33 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6407
- Sewer Name
- 17 DISTRICT #17 MAIN TRUNK
- City
- ALTADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 17
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_750739_TV17011_FEB2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 17 0052
- Downstream MH
- 17 0051
- Dir. of Survey
- Downstream
- Length Surveyed
- 401.5 ft.
- Total Length
- 401.5 ft.
- Structural Index
- 3
- Structural Quick
- 3O00
- Structural Rating
- 234
- O&M Index
- 2
- O&M Quick
- 2O00
- O&M Rating
- 160
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 394
Observation photos (3)

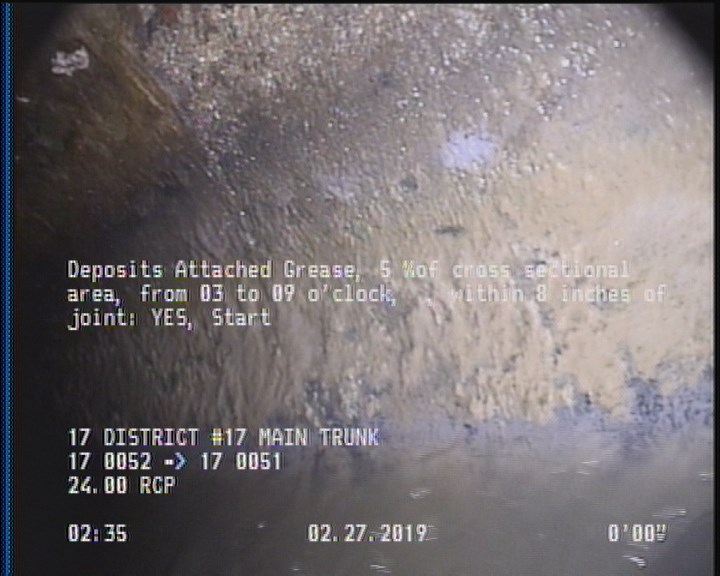

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

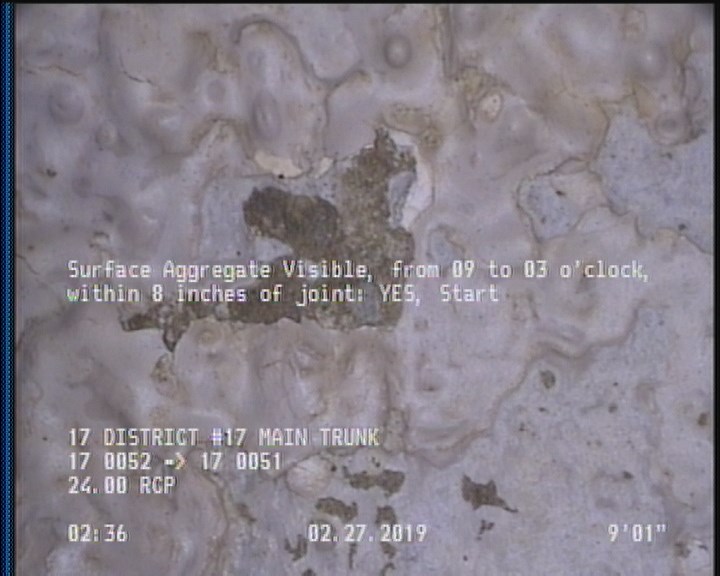

9.1 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

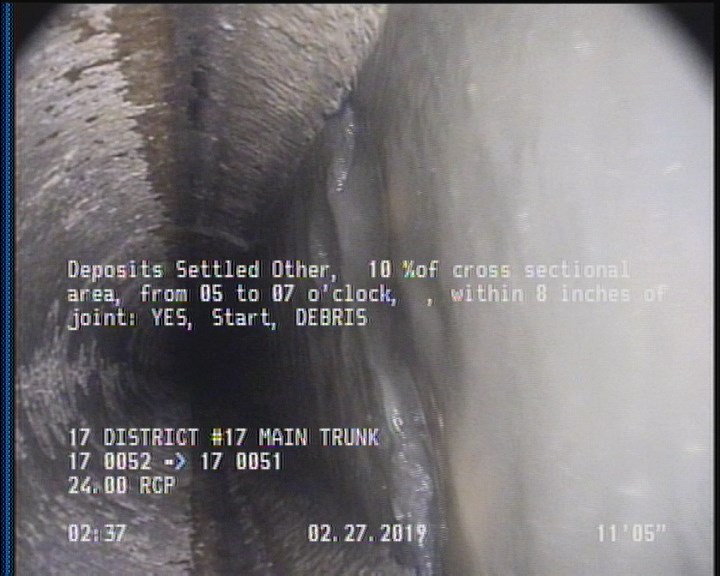

11.4 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 9.1 | SAV | — |
| 401 | DAGS | — |
| 2 | DAGS | — |
| 0 | AMH | 17 0052 |
| 0 | MWM | — |
| 0 | MGO | MAG COATING THROUGHOUT 60% |
| 401 | SAV | — |
| 401 | DSZ | — |
| 11.4 | DSZ | DEBRIS |
| 401.5 | AMH | 17 0051 |
| 0 | MWL | — |
| 401.5 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
Properties (6)
- additional_info
- SC365922
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-02-27T02:33:11-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
