Wastewater/Activity/PacpInspection/1.0Apr 19, 2019, 04:05 PM
22 0386_22 0385_4192019_093132.mp4
- Date
- 04/19/2019
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00831
- PipeID
- P16719
- Time
- 9:05 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7966
- Sewer Name
- 22 WALNUT CREEK TRUNK, SECTION 3
- City
- COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 33
- Purpose
- Maintenance Related
- Project
- 20190419DF_WALNUT_CREEK_TRUNK_SECT_3
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 22 0386
- Downstream MH
- 22 0385
- Dir. of Survey
- Downstream
- Length Surveyed
- 349 ft.
- Total Length
- 349 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

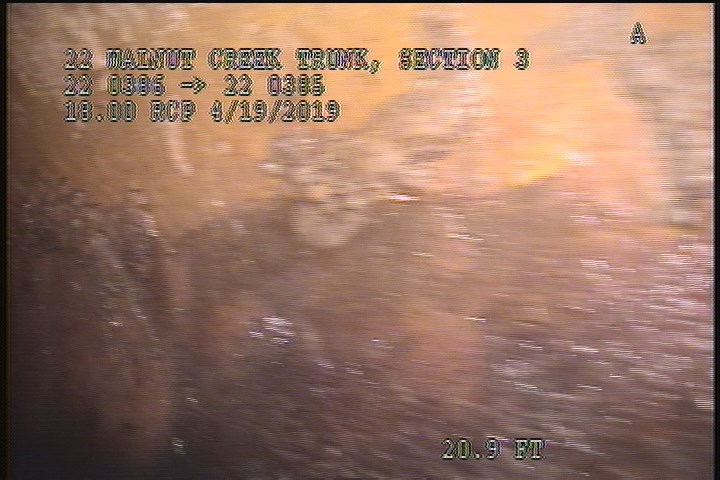

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

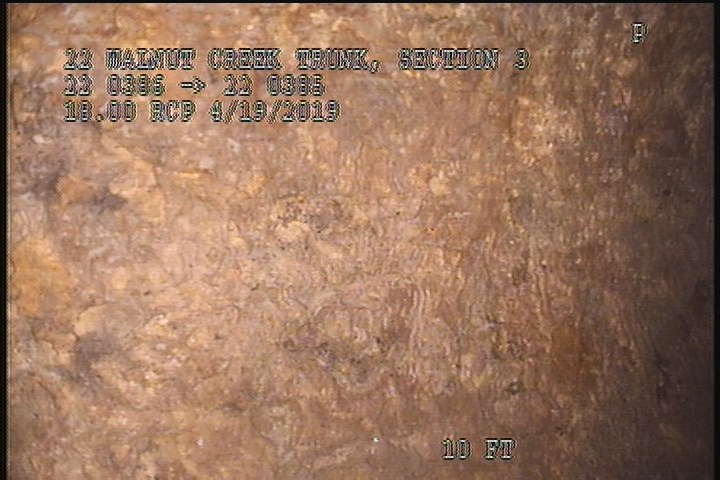

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

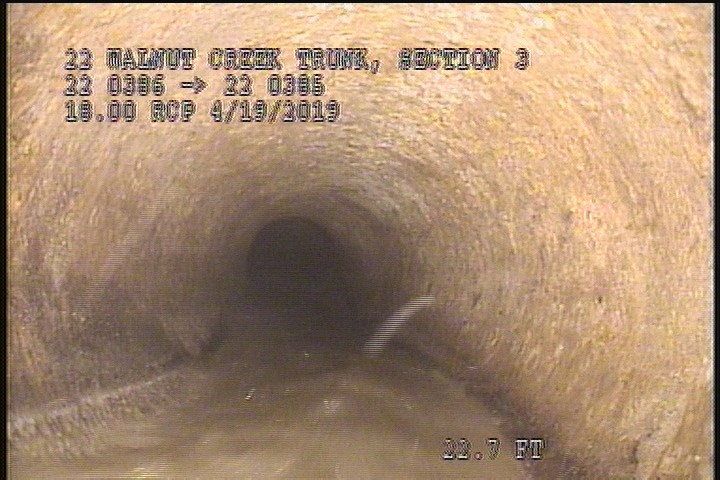

2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 60% MAG
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 2 | SAV | — |
| 348 | SSS | — |
| 2 | SSS | — |
| 348 | SZ | 60% MAG |
| 349 | AMH | 10:00 AM |
| 0 | AMH | 9:30 AM |
| 2 | SZ | 60% MAG |
| 0.1 | MWM | — |
| 349 | MGO | Peeling & Flaking Throughout The Reach |
| 0.3 | MWL | — |
| 348 | SAV | — |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-04-19T09:05:52-07:00
- documentation
- FRANKLIN, CASTILLO, SHADLER, IGNACIO
- is_lateral_inspection
- false
