Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 22, 2019, 03:47 PM

  • 18 0012_18 0011_4222019_092849.mp4

Date
04/22/2019
W/O
0767071
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00713
PipeID
P13828
Time
8:47 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7967
Sewer Name
18 WALNUT WAY TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
15
Purpose
Capital Improvement Program Assesment
Project
20190418DF_WALNUT_WAY_TRUNK
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
18 0012
Downstream MH
18 0011
Dir. of Survey
Downstream
Length Surveyed
198.7 ft.
Total Length
198.7 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 18 0012 to 18 0011
MH: 18 0012MH: 18 0011downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 9:27 AM0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 80% MAG2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start8 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open10 ft. MGP - General Photograph29.4 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - Open76.7 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open81 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - Open134.9 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open138.6 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - Open182.6 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open195.6 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 80% MAG195.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish195.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish195.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish198.7 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach198.7 ft. MGO - General Observation - ROACHES @ MH198.7 ft. MGO - General Observation - Mag Coat xx% 9 to 3 o' Clock Throughout198.7 ft. AMH - Downstream Manhole, Survey Ends - 9:48 AM

Observation photos (3)

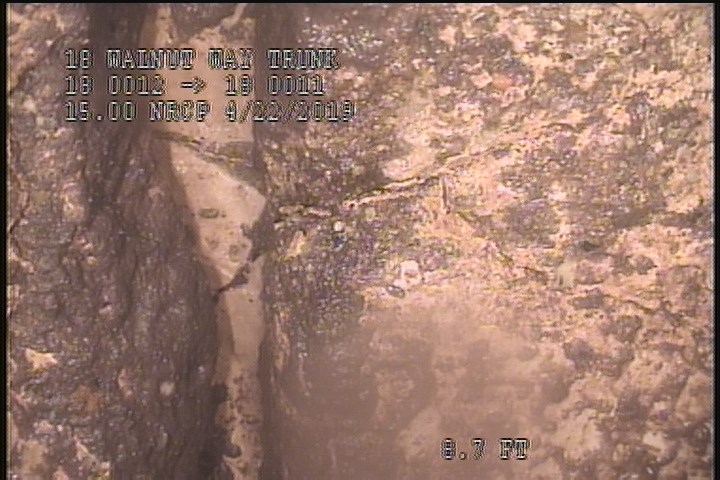

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

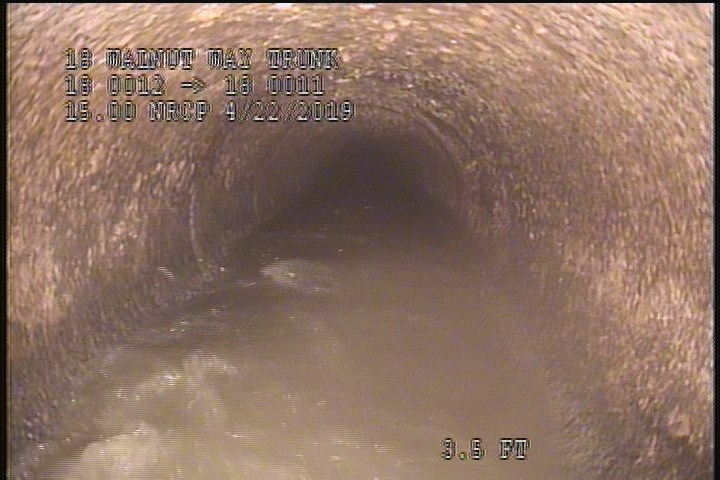

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 80% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 80% MAG

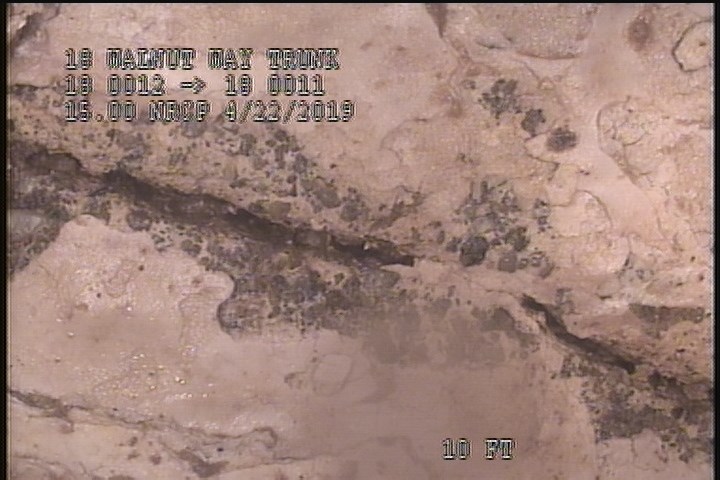

  • General Photograph

    10 ft. - General Photograph

All inspections of P13828Work order 0767071

Observations (23)

DistanceCodeObservation
29.4TFOpen
0MWL—
195.6SZ80% MAG
0AMH9:27 AM
2SSS—
198.7MGOPeeling & Flaking Throughout The Reach
2CM—
195.6SAV—
182.6TFOpen
2SZ80% MAG
198.7MGOROACHES @ MH
8TFOpen
134.9TFOpen
2SAV—
10MGP—
195.6CM—
195.6SSS—
198.7MGOMag Coat xx% 9 to 3 o' Clock Throughout
76.7TFOpen
81TFOpen
138.6TFOpen
198.7AMH9:48 AM
0MWM—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-04-22T08:47:47-07:00
documentation
FRANKLIN, CASTILLO, IGNACIO
is_lateral_inspection
false
