Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 22, 2019, 03:45 PM

  • 18 0013_18 0012_4222019_090510.mp4

Date
04/22/2019
W/O
0767071
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00713
PipeID
P13829
Time
8:45 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7967
Sewer Name
18 WALNUT WAY TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
15
Purpose
Capital Improvement Program Assesment
Project
20190418DF_WALNUT_WAY_TRUNK
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
18 0013
Downstream MH
18 0012
Dir. of Survey
Downstream
Length Surveyed
81.4 ft.
Total Length
81.4 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 18 0013 to 18 0012
MH: 18 0013MH: 18 0012downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 8:48 AM0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 60% MAG2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. OPEN2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start10.3 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open40.1 ft. MGP - General Photograph56.3 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open60 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - Open78 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish78 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish78 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 60% MAG78 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish79 ft. MGO - General Observation - Grease Throughout The Reach (5%)79 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach81.4 ft. MGO - General Observation - ROACHES @ MH81.4 ft. AMH - Downstream Manhole, Survey Ends - 9:18 AM

Observation photos (6)

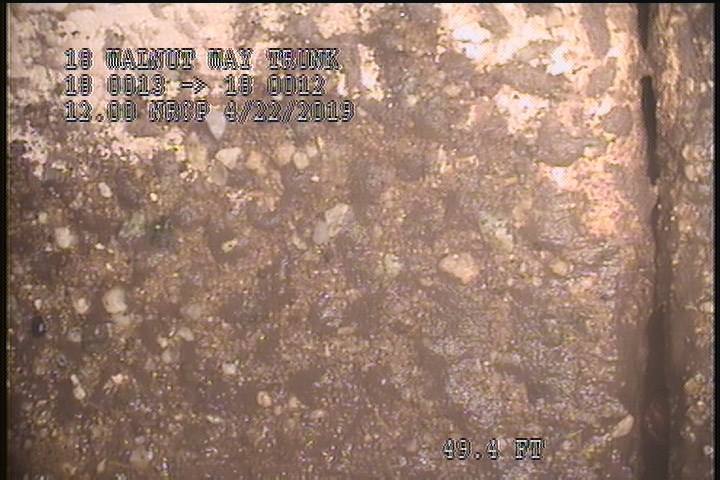

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 60% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 60% MAG

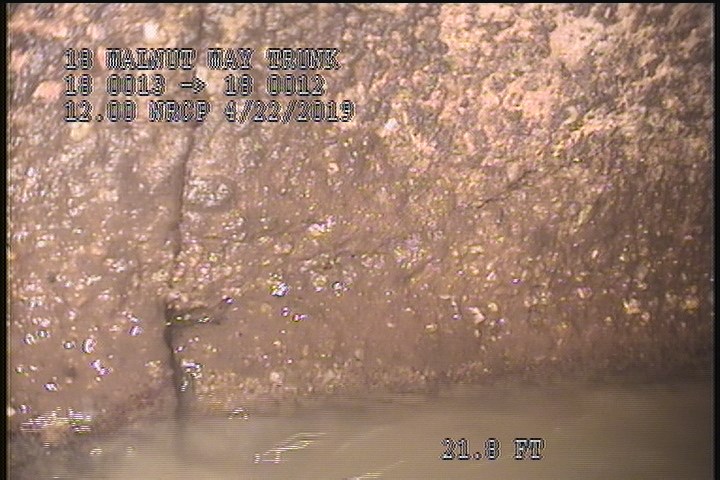

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • General Observation - Conn. @ Mh, 9 O' Clock. OPEN

    2 ft. - General Observation - Conn. @ Mh, 9 O' Clock. OPEN

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • General Photograph

    40.1 ft. - General Photograph

All inspections of P13829Work order 0767071

Observations (20)

DistanceCodeObservation
60TFOpen
78SAV—
40.1MGP—
78SSS—
79MGOGrease Throughout The Reach (5%)
56.3TFOpen
79MGOPeeling & Flaking Throughout The Reach
78SZ60% MAG
78CM—
2SAV—
0MWL—
81.4MGOROACHES @ MH
2SZ60% MAG
2CM—
2MGOConn. @ Mh, 9 O' Clock. OPEN
0AMH8:48 AM
10.3TFOpen
2SSS—
0MWM—
81.4AMH9:18 AM

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-04-22T08:45:35-07:00
documentation
FRANKLIN, CASTILLO, IGNACIO
is_lateral_inspection
false
