Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 18, 2019, 07:02 PM

  • 18 0021_18 0020A_4182019_122001.mp4

Date
04/18/2019
W/O
0767071
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00713
PipeID
P25356
Time
12:02 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7965
Sewer Name
18 WALNUT WAY TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
15
Purpose
Capital Improvement Program Assesment
Project
20190418DF_WALNUT_WAY_TRUNK
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
18 0020A
Downstream MH
18 0021
Dir. of Survey
Upstream
Length Surveyed
47.5 ft.
Total Length
47.5 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 18 0020A to 18 0021
MH: 18 0020AMH: 18 0021upstream0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Capped0 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Capped0 ft. MGO - General Observation - Grease Throughout The Reach (5%)0 ft. AMH - Upstream Manhole, Survey Ends - 12:30 PM2.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish2.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish2.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish2.2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 55% MAG9.1 ft. MGP - General Photograph21.9 ft. MGP - General Photograph27.4 ft. MGP - General Photograph27.7 ft. MGP - General Photograph45.5 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 30% MAG45.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start45.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start45.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start47.4 ft. MWL - Water Level, 15 %of cross sectional area47.4 ft. MWM - Water Mark, 20 %of cross sectional area47.5 ft. AMH - Downstream Manhole, Survey Begins - 12:07 PM

Observation photos (7)

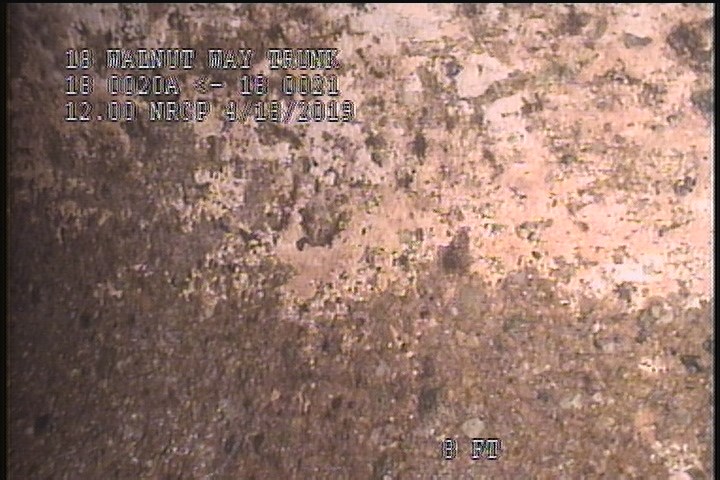

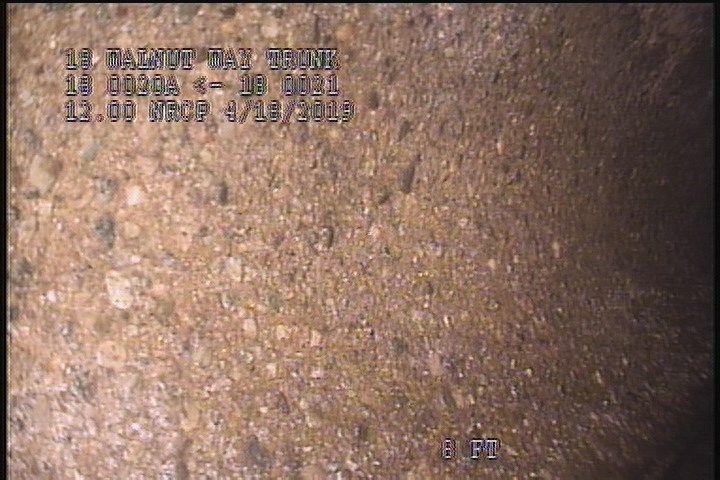

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    1.7 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

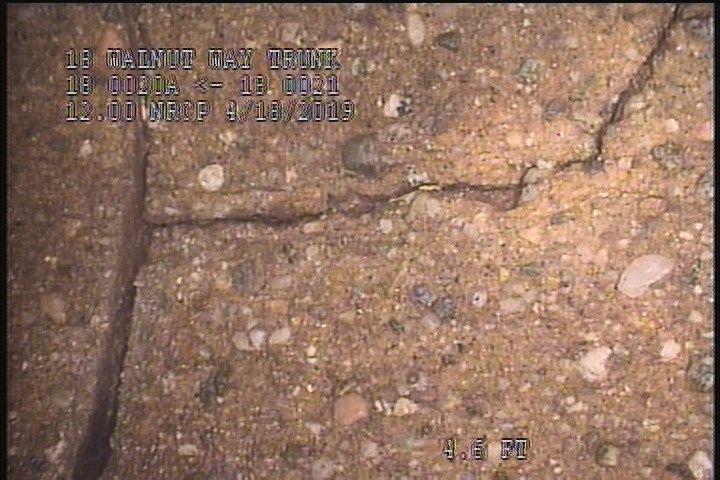

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    1.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    1.7 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

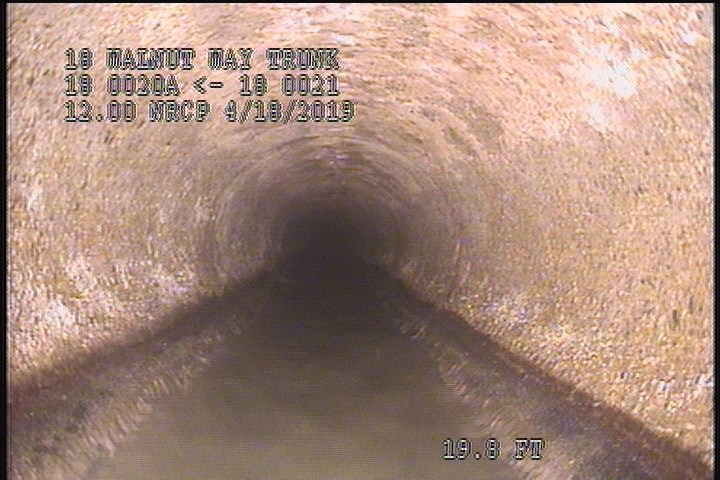

  • General Photograph

    19.8 ft. - General Photograph

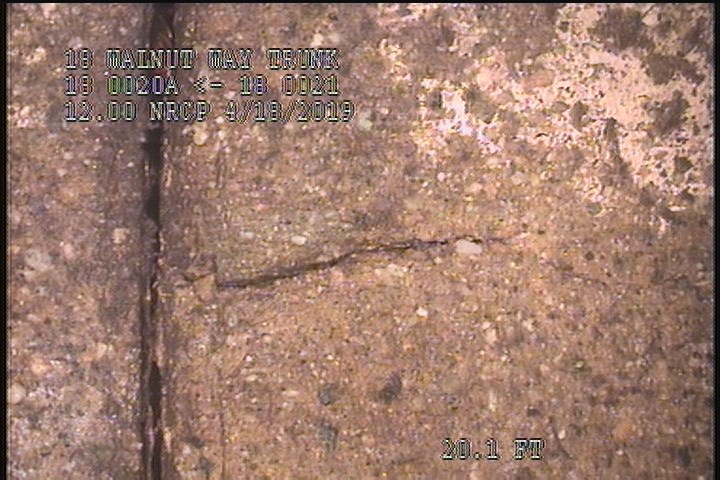

  • General Photograph

    20.1 ft. - General Photograph

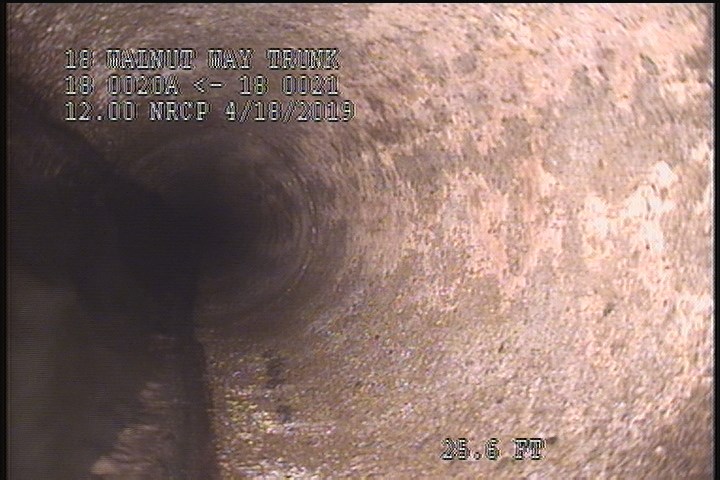

  • General Photograph

    25.6 ft. - General Photograph

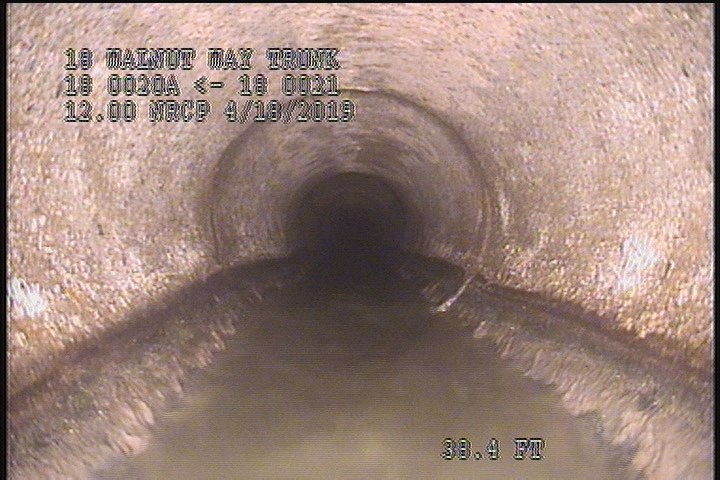

  • General Photograph

    38.4 ft. - General Photograph

All inspections of P25356Work order 0767071

Observations (20)

DistanceCodeObservation
0.1MWL—
1.7SAV—
2SZ30% MAG
0.1MWM—
0AMH12:07 PM
20.1MGP—
45.3SAV—
47.5MGOConn. @ Mh, 9 O' Clock. Capped
45.3SSS—
45.3CM—
1.7CM—
25.6MGP—
47.5MGOPeeling & Flaking Throughout The Reach
38.4MGP—
19.8MGP—
47.5MGOConn. @ Mh, 3 O' Clock. Capped
1.7SSS—
47.5MGOGrease Throughout The Reach (5%)
47.5AMH12:30 PM
45.3SZ55% MAG

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-04-18T12:02:39-07:00
documentation
FRANKLIN, CASTILLO, SHADLER
is_lateral_inspection
false
