Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 18, 2019, 03:54 PM

  • 15 0152_15 0151_4182019_092317.mp4

Date
04/18/2019
W/O
0765241
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00635
PipeID
P12053
Time
8:54 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7964
Sewer Name
15 TYLER AVENUE RELIEF TRUNK
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Capital Improvement Program Assesment
Project
20190418DF_TYLER_AVENUE_RELIEF_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
15 0152
Downstream MH
15 0151
Dir. of Survey
Downstream
Length Surveyed
374 ft.
Total Length
374 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 15 0152 to 15 0151
MH: 15 0152MH: 15 0151downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:00 AM0.1 ft. MWL - Water Level, 20 %of cross sectional area0.1 ft. MGO - General Observation - ROACHES @ MH0.1 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active2.2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 60% MAG2.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start64.8 ft. MGP - General Photograph85.3 ft. MGP - General Photograph252.3 ft. MGP - General Photograph367.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish367.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish367.6 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 60% MAG367.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish373 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. OPEN373.4 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)373.4 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach374 ft. AMH - Downstream Manhole, Survey Ends - 9:41 AM

Observation photos (6)

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 60% MAG

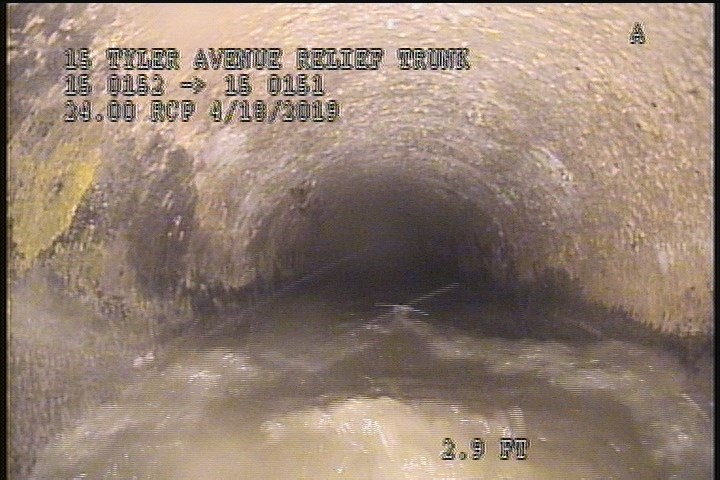

    2.2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 60% MAG

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

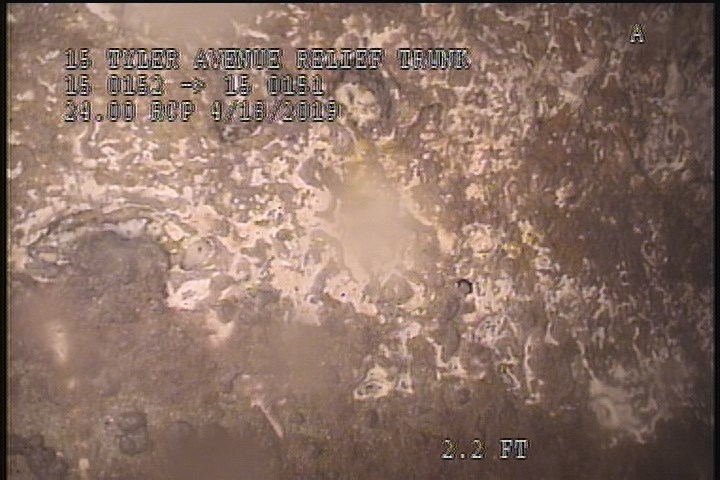

    2.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

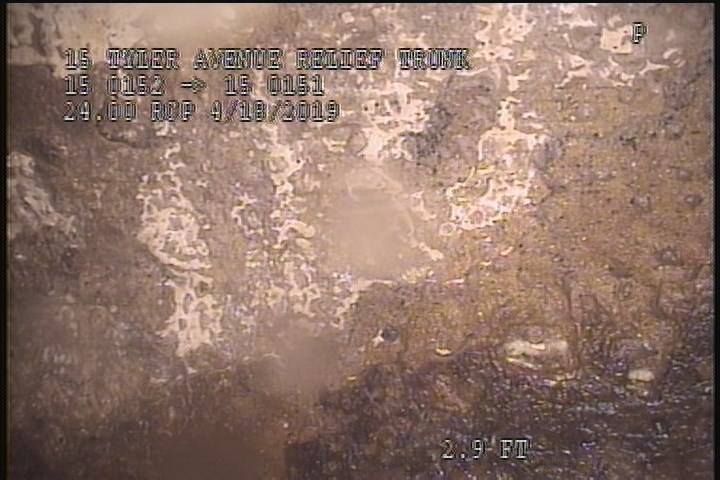

    2.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • General Photograph

    64.8 ft. - General Photograph

  • General Photograph

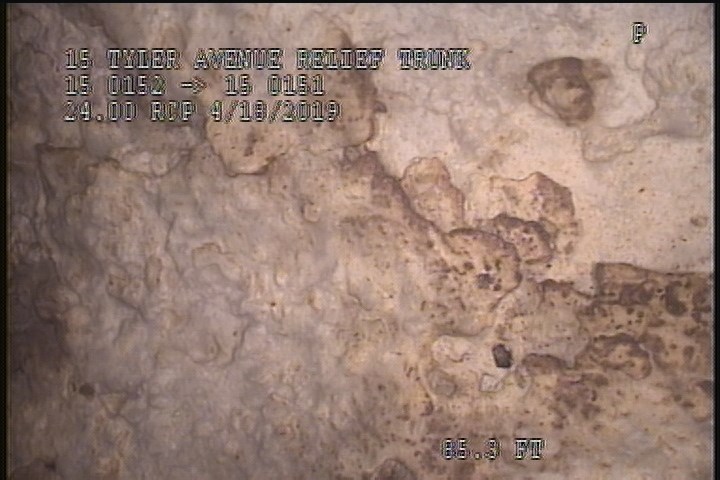

    85.3 ft. - General Photograph

  • General Photograph

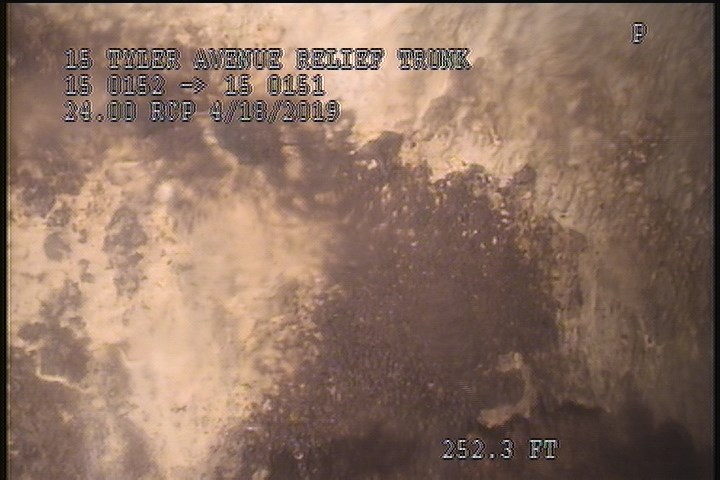

    252.3 ft. - General Photograph

All inspections of P12053Work order 0765241

Observations (20)

DistanceCodeObservation
367.5SSS—
367.5CM—
367.6SZ60% MAG
374AMH9:41 AM
0AMH9:00 AM
0.1MWL—
0.1MGOROACHES @ MH
373.4MGOGREASE THROUGHOUT THE REACH (5%)
252.3MGP—
0.1MWM—
373MGOConn. @ Mh, 9 O' Clock. OPEN
2.2SZ60% MAG
64.8MGP—
2CM—
367.6SAV—
85.3MGP—
2.2SAV—
373.4MGOPeeling & Flaking Throughout The Reach
2MGOConn. @ Mh, 3 O' Clock. Active
2.2SSS—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-04-18T08:54:52-07:00
documentation
FRANKLIN, CASTILLO, SHADLER
is_lateral_inspection
false
