Wastewater/Activity/PacpInspection/1.0Apr 8, 2019, 06:56 PM
A 0716_21 0331_482019_120118.mp4
- Date
- 04/08/2019
- W/O
- 0755953
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00314
- PipeID
- P20054
- Time
- 11:56 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7959
- Sewer Name
- A JOA-1A CHINO BASIN WASTEWATER LINE
- City
- POMONA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 14
- Purpose
- Maintenance Related
- Project
- 20190408DF_JOA_1A_CHINO_BASIN_WASTEWATER_LINE
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Upstream MH
- 21 0331
- Downstream MH
- A 0716
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (6)

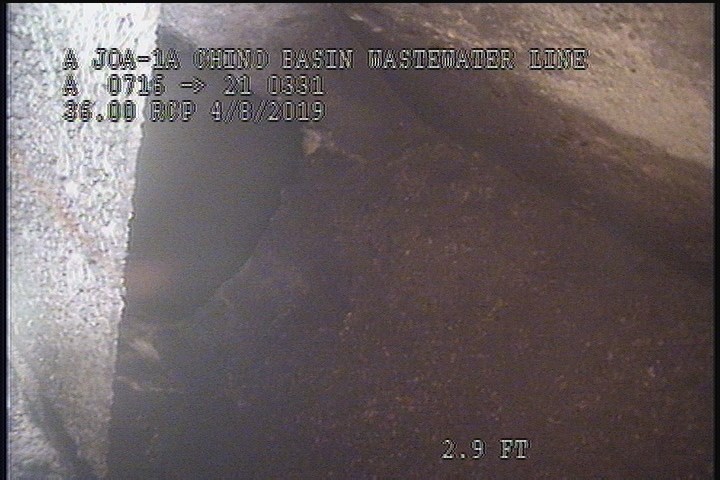

0.1 ft. - Water Level, 75 %of cross sectional area

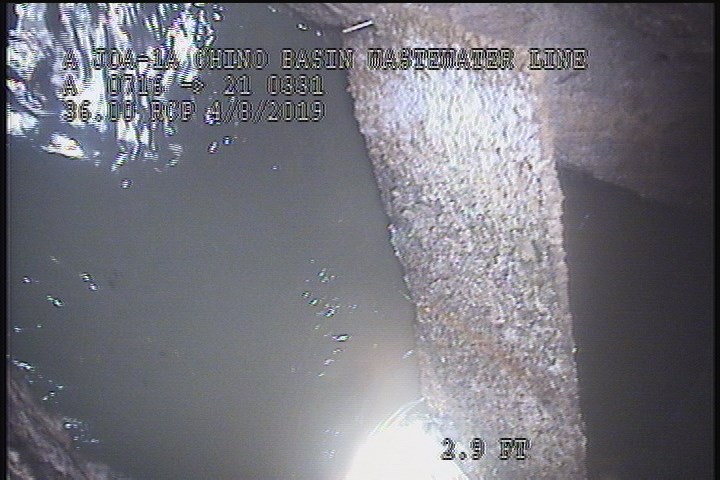

0.1 ft. - Water Mark, 80 %of cross sectional area

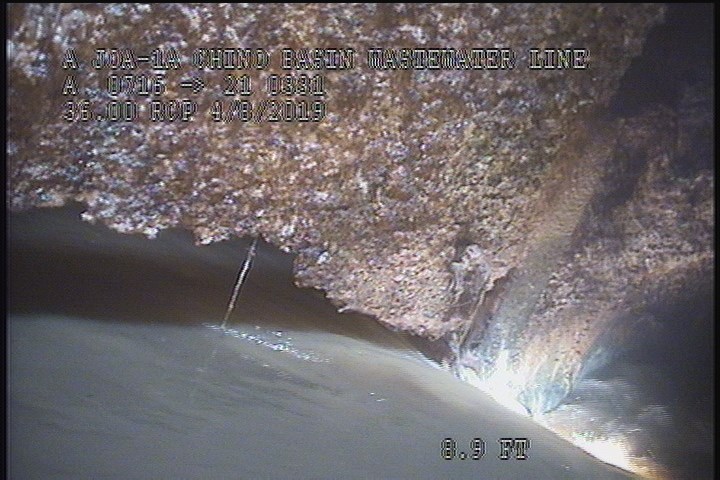

2 ft. - General Observation - STOP LOG PARTIALLY DOWN

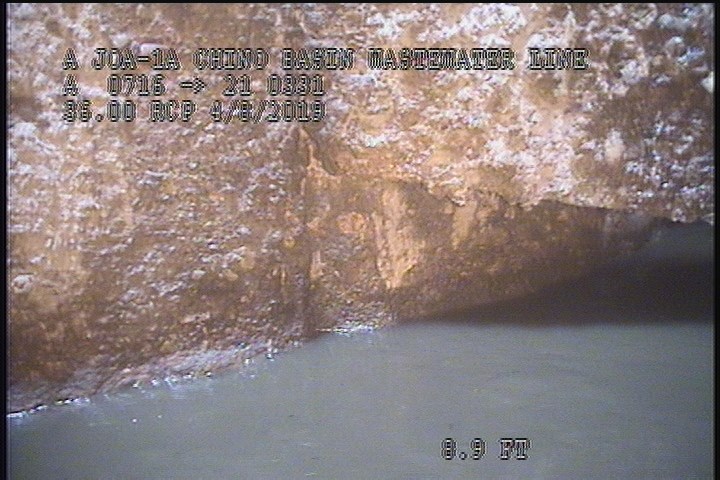

2 ft. - General Photograph

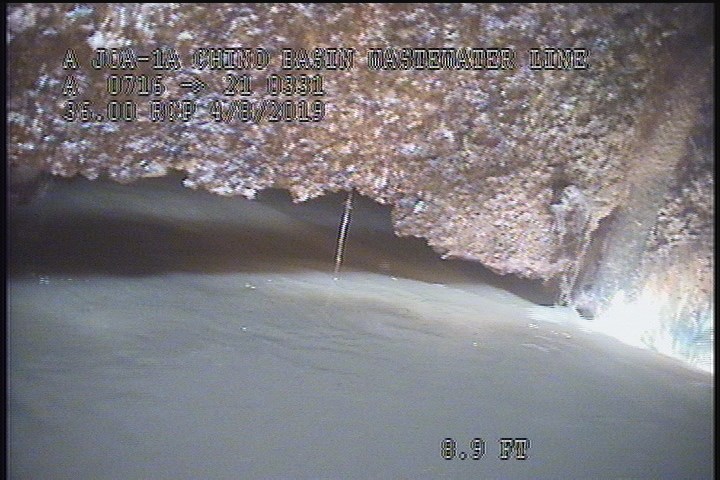

2.1 ft. - General Photograph

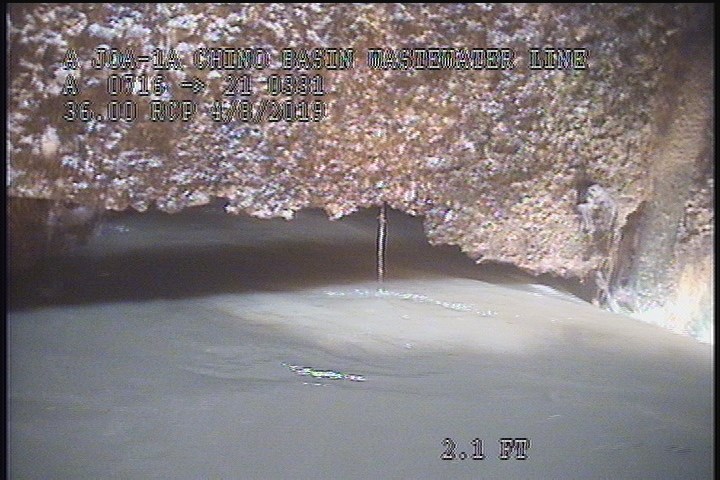

2.1 ft. - Survey Abandoned - HIGH WATER
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 12:00 PM |
| 0.1 | MWL | — |
| 2 | MGO | STOP LOG PARTIALLY DOWN |
| 2 | MGP | — |
| 2.1 | MGP | — |
| 2.1 | MSA | HIGH WATER |
| 0.1 | MWM | — |
Properties (5)
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-04-08T11:56:20-07:00
- documentation
- FRANKLIN, CASTILLO , IGNACIO
- is_lateral_inspection
- false
